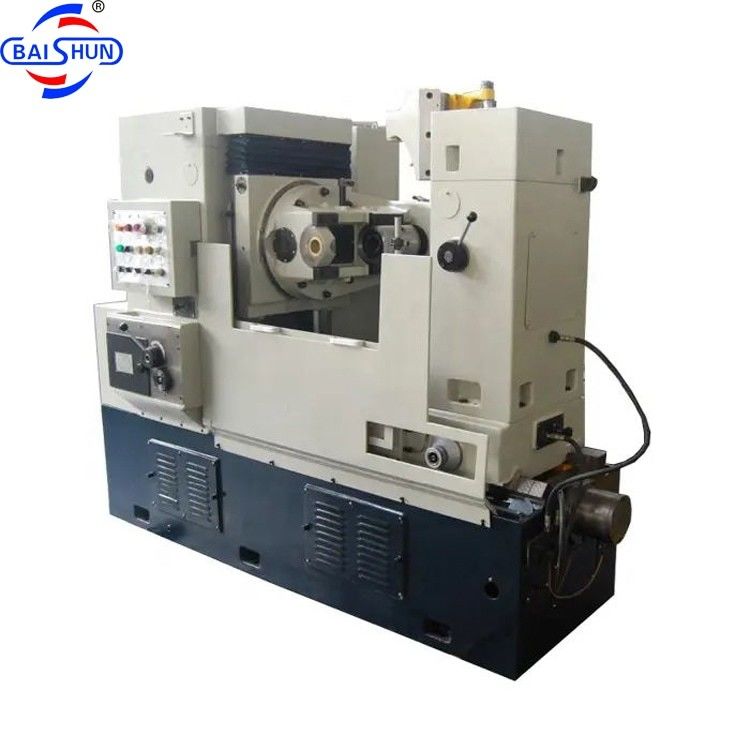

grinding gear hob machine Sprocket Cutter Gear Cutting Machine

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO9001:2008

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

gear hobber

,

gear hobbing cutter

,

gear hob grinding machine

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Not Available
Machinery Test Report:
Not Available
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Voltage:
380V/50Hz
Warranty:
1 Year, 12 Months
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
After-sales Service Provided:
Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support
Max Work Piece Diameter:
500mm
Max. Module:
8mm
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Color:
Custmized
Weight:
4500KG
Power:
6.45KW
After Warranty Service:
Online Support
Local Service Location:
None
Port:
Shanghai, Qingdao, Tianjin Port, China
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Not Available
Machinery Test Report:
Not Available
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Voltage:
380V/50Hz
Warranty:
1 Year, 12 Months
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
After-sales Service Provided:
Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support
Max Work Piece Diameter:
500mm
Max. Module:
8mm
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Color:
Custmized
Weight:
4500KG
Power:
6.45KW
After Warranty Service:
Online Support
Local Service Location:
None
Port:
Shanghai, Qingdao, Tianjin Port, China
grinding gear hob machine Sprocket Cutter Gear Cutting Machine

Gear Hobbing Machine Sprocket Cutter Gear Cutting Machine Gear Hobbing Machine



Product Features:
1. The machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprocket.

2. The machine is characterized by good rigidity, high working accuracy, easy in operation and maintain.

3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.

4. According to the special needs of users, can be raised or extended tool to expand the scope of the processing machine accuracy.

5. Easy in operation and maintain.



The gear hobbing machine is a specialized milling machine commonly used for cutting gears, splines, and worm gears. It uses a rotating hob to create teeth on the workpiece, producing gears of different sizes and shapes. Gear hobbing machines are widely employed in gear manufacturing for industries like automobiles, aerospace, and industrial machinery




Model Y3150 Y3180
Max.diameter of machining spur gears with external support 350mm 550m
Max. diameter of machining spur gears without external support 500mm 800mm
Dia. of worktable 520mm 650mm
Max. cutting module 8mm 10mm
Max. Processing width 250mm 300mm
Min.number of teeth processed 6 8
Max.vertical travel of tool seat 300mm 350mm
Min.turning angle 240° 240°
Max.tool loading dimensions(Dia.*L) 160*160mm 180*180mm
Dia. Of hob mandrel 22/27/32mm 22/27/32/40mm
Max. diameter of hob 160mm 180mm
Diameter of table hole 80mm 80mm
Hob spindle speed step 12 steps 12 steps
Hob spindle speed scope 50-275rpm 40-200rpm
Vertical feed range of the hob per revolution of the workpiece 0.24-4.25mm/r 0.4-4mm/r
Main motor power 4.75kw 5.5kw
Main motor speed 1430rpm 1500rpm
Machine weight 4500kg 5500kg
Machine tool dimensions (L*W*H) 2440*1370*1800mm 2752*1490*1870mm
