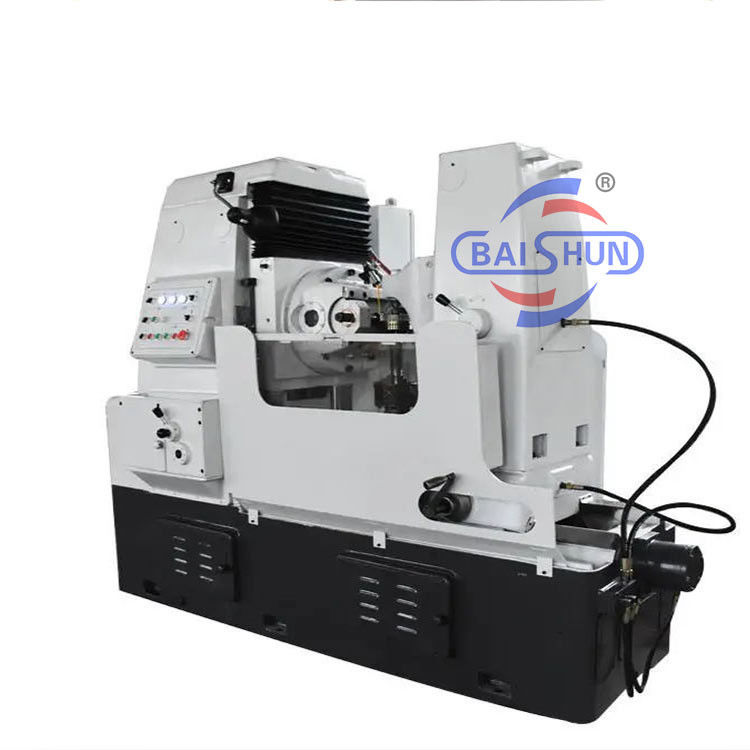

Small Gear Hobbing Lathe Tools Y3150E

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO9001:2008

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Standard export package for Small Gear Hobbing Machine

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

gear hobbing lathe

,

gear hobbing tools

,

Y3150E

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Warranty Of Core Components:
1 Year
Core Components:
Bearing
Voltage:
380V/50Hz
After-sales Service Provided:
Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Name:
Small Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800mm
Weight:
4500KG
Power:
6.45KW
After Warranty Service:
Online Support
Local Service Location:
None
Port:
Shanghai, Qingdao, Tianjin Port, China Small Gear Hobbing Machine
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Warranty Of Core Components:
1 Year
Core Components:
Bearing
Voltage:
380V/50Hz
After-sales Service Provided:
Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Name:
Small Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800mm
Weight:
4500KG
Power:
6.45KW
After Warranty Service:
Online Support
Local Service Location:
None
Port:
Shanghai, Qingdao, Tianjin Port, China Small Gear Hobbing Machine
Small Gear Hobbing Lathe Tools Y3150E

Gear Hobbing Machine Price Y3150E Small Gear Hobbing Machine For Sale



The gear hobbing machine is a specialized milling machine commonly used for cutting gears, splines, and worm gears. It uses a rotating hob to create teeth on the workpiece, producing gears of different sizes and shapes. Gear hobbing machines are widely employed in gear manufacturing for industries like automobiles, aerospace, and industrial machinery.

Key Features:

1. Ideal for producing large quantities of cylindrical spur and helical gears, worm gears, and sprockets.

2. Strong and precise, ensuring accurate machining results. Easy to operate and maintain.

3. Can cut in both forward and backward directions, with options for axial or radial feed motion.

4. User-friendly operation and maintenance procedures.



Model Y3150 Y3180
Max.diameter of machining spur gears with external support 350mm 550m
Max. diameter of machining spur gears without external support 500mm 800mm
Dia. of worktable 520mm 650mm
Max. cutting module 8mm 10mm
Max. Processing width 250mm 300mm
Min.number of teeth processed 6 8
Max.vertical travel of tool seat 300mm 350mm
Min.turning angle 240° 240°
Max.tool loading dimensions(Dia.*L) 160*160mm 180*180mm
Dia. Of hob mandrel 22/27/32mm 22/27/32/40mm
Max. diameter of hob 160mm 180mm
Diameter of table hole 80mm 80mm
Hob spindle speed step 12 steps 12 steps
Hob spindle speed scope 50-275rpm 40-200rpm
Vertical feed range of the hob per revolution of the workpiece 0.24-4.25mm/r 0.4-4mm/r
Main motor power 4.75kw 5.5kw
Main motor speed 1430rpm 1500rpm
Machine weight 4500kg 5500kg
Machine tool dimensions (L*W*H) 2440*1370*1800mm 2752*1490*1870mm
