Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

gear cutting hobbing machine

,

gear cutting machine

,

hobbing gear cutting machine

CNC Or Not:
Normal
Type:
Gear Hobbing Machine
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
2 Years
Core Components:
Gearbox, Motor
Voltage:
380V
Dimension(L*W*H):
2440*1370*1800mm
Warranty:
1 Year
Key Selling Points:
Competitive Price
Weight (KG):
4500
Power (kW):
6.75
Model:
Y3150
Max Modulus:
8mm
Max. Dia. Of Processing:
500mm
Worktable Diameter:
520mm
Max.diameter Of Hob:
160mm
Processing Types:
Gear Processing
Keyword:
Gear Hobbing Cutting Machine
Fuction:
Metal Gears Hobbing
Gear Material:
Steel
Port:
Main Sea Port Of China. Or As Customer Requirement.
CNC Or Not:
Normal
Type:
Gear Hobbing Machine
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
2 Years
Core Components:
Gearbox, Motor
Voltage:
380V
Dimension(L*W*H):
2440*1370*1800mm
Warranty:
1 Year
Key Selling Points:
Competitive Price
Weight (KG):
4500
Power (kW):
6.75
Model:
Y3150
Max Modulus:
8mm
Max. Dia. Of Processing:
500mm
Worktable Diameter:
520mm
Max.diameter Of Hob:
160mm
Processing Types:
Gear Processing
Keyword:
Gear Hobbing Cutting Machine
Fuction:
Metal Gears Hobbing
Gear Material:
Steel
Port:
Main Sea Port Of China. Or As Customer Requirement.
Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing

 Manual Gear Hobbing Machine Y3150 Metal Gear Shaping Processing Cutting Machine

Product Description

Gear hobbing machine is a machining process for cutting gears, splines, and worm gears on a hobbing machine, which is a special type of milling machine. The gear hobbing machine uses a rotating hob to cut teeth into the workpiece, creating gears of various sizes and shapes. It is widely used in the manufacture of gears for various applications such as automobiles, aerospace and other industrial machinery.



Feature:

1.High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.

2.Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.

3.Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.

4.Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.

5.External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of larger diameters(Y3180).

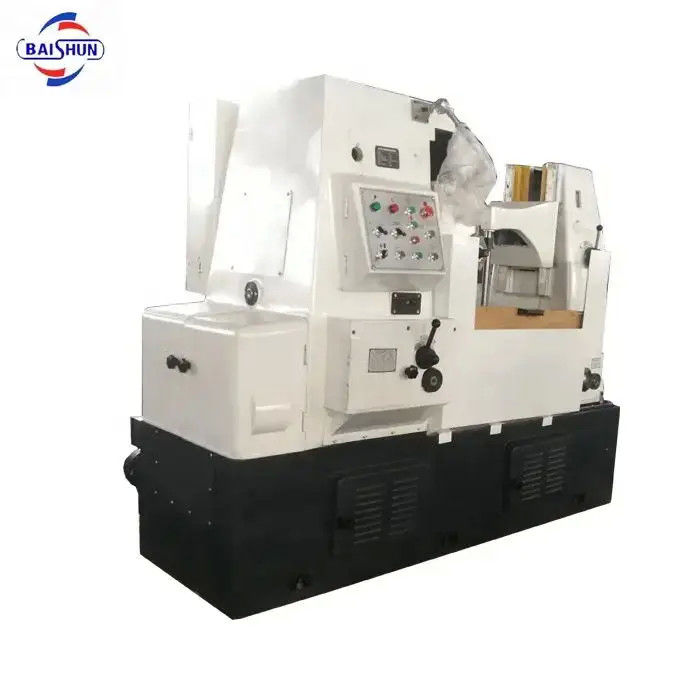

Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 0Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 1Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 2Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 3Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 4



Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 5



Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 6



Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 7



Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 8



Manual Gear Cutting Hobbing Machine Y3150 Metal Shaping Processing 9



Machine Parameter



Model

Y3150

Y3180

Max.diameter of machining spur gears with external support

350mm

550m

Max. diameter of machining spur gears without external support

500mm

800mm

Dia. of worktalbe

520mm

650mm

Max. cutting module

8mm

10mm

Max. Processing width

250mm

300mm

Min.number of teeth processed

6

8

Max.vertical travel of tool seat

300mm

350mm

Min.turning angle

240°

240°

Max.tool loading dimensions(Dia.*L)

160*160mm

180*180mm

Dia. Of hob mandrel

22/27/32mm

22/27/32/40mm

Max. diameter of hob

160mm

180mm

Diameter of table hole

80mm

80mm

Hob spindle speed step

12 steps

12 steps

Hob spindle speed scope

50-275rpm

40-200rpm

Vertical feed range of the hob per revolution of the workpiece

0.24-4.25mm/r

0.4-4mm/r

Main motor power

4.75kw

5.5kw

Main motor speed

1430rpm

1500rpm

Machine weight

4500kg

5500kg

Machine tool dimensions (L*W*H)

2440*1370*1800mm

2752*1490*1870mm
