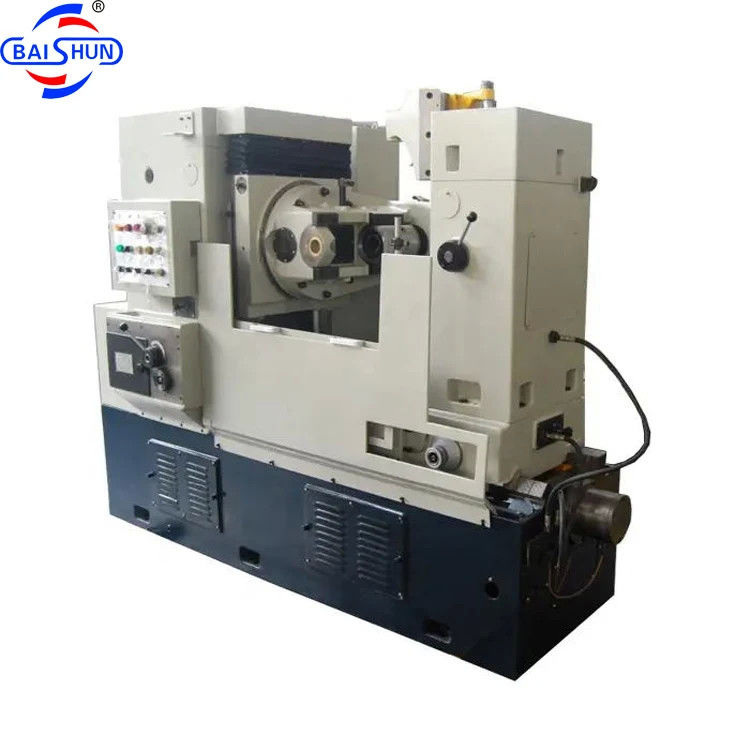

Y3150 vertical hobbing machine cutter High Efficiency Metal

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

hobbing machine cutter

,

hobbing cutter

,

Y3150 vertical hobbing machine

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
Gearbox, Motor
Voltage:
380V
Dimension(L*W*H):
2440*1370*1800mm
Warranty:
1 Year
Key Selling Points:
Competitive Price
Weight (KG):
4500
Power (kW):
6.75
Model:
Y3150 Y3150E
Max Modulus:
8mm
Max. Dia. Of Processing:
500mm
Worktable Diameter:
520mm
Max.diameter Of Hob:
160mm
Max.vertical Travel Of Tool Seat:
300mm
Keyword:
Gear Hobbing Cutting Machine
Fuction:
Metal Gears Hobbing
Main Motor Power:
4.75kw
Port:
Main Sea Port Of China. Or As Customer Requirement.
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
Gearbox, Motor
Voltage:
380V
Dimension(L*W*H):
2440*1370*1800mm
Warranty:
1 Year
Key Selling Points:
Competitive Price
Weight (KG):
4500
Power (kW):
6.75
Model:
Y3150 Y3150E
Max Modulus:
8mm
Max. Dia. Of Processing:
500mm
Worktable Diameter:
520mm
Max.diameter Of Hob:
160mm
Max.vertical Travel Of Tool Seat:
300mm
Keyword:
Gear Hobbing Cutting Machine
Fuction:
Metal Gears Hobbing
Main Motor Power:
4.75kw
Port:
Main Sea Port Of China. Or As Customer Requirement.
Y3150 vertical hobbing machine cutter High Efficiency Metal

 Y3150 High Efficiency Gear Hobbing Machine Vertical Metal Hobbing Machine



Product Description

Gear hobbing machine is a machining process for cutting gears, splines, and worm gears on a hobbing machine, which is a special type of milling machine. The gear hobbing machine uses a rotating hob to cut teeth into the workpiece, creating gears of various sizes and shapes. It is widely used in the manufacture of gears for various applications such as automobiles, aerospace and other industrial machinery.



Feature:

1. The machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprocket.

2. The machine is characterized by good rigidity, high working accuracy, easy in operation and maintain.

3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.

4. According to the special needs of users, can be raised or extended tool to expand the scope of the processing machine accuracy.

5. Easy in operation and maintain.

Y3150 vertical hobbing machine cutter High Efficiency Metal 0Y3150 vertical hobbing machine cutter High Efficiency Metal 1Y3150 vertical hobbing machine cutter High Efficiency Metal 2Y3150 vertical hobbing machine cutter High Efficiency Metal 3Y3150 vertical hobbing machine cutter High Efficiency Metal 4



Y3150 vertical hobbing machine cutter High Efficiency Metal 5



Y3150 vertical hobbing machine cutter High Efficiency Metal 6



Y3150 vertical hobbing machine cutter High Efficiency Metal 7



Y3150 vertical hobbing machine cutter High Efficiency Metal 8



Y3150 vertical hobbing machine cutter High Efficiency Metal 9



Machine Parameter



Model

Y3150

Y3180

Max.diameter of machining spur gears with external support

350mm

550m

Max. diameter of machining spur gears without external support

500mm

800mm

Dia. of worktalbe

520mm

650mm

Max. cutting module

8mm

10mm

Max. Processing width

250mm

300mm

Min.number of teeth processed

6

8

Max.vertical travel of tool seat

300mm

350mm

Min.turning angle

240°

240°

Max.tool loading dimensions(Dia.*L)

160*160mm

180*180mm

Dia. Of hob mandrel

22/27/32mm

22/27/32/40mm

Max. diameter of hob

160mm

180mm

Diameter of table hole

80mm

80mm

Hob spindle speed step

12 steps

12 steps

Hob spindle speed scope

50-275rpm

40-200rpm

Vertical feed range of the hob per revolution of the workpiece

0.24-4.25mm/r

0.4-4mm/r

Main motor power

4.75kw

5.5kw

Main motor speed

1430rpm

1500rpm

Machine weight

4500kg

5500kg

Machine tool dimensions (L*W*H)

2440*1370*1800mm

2752*1490*1870mm
