B5040 manufacturing gear cutting vertical metal slotting machine for metal work
Metal slotting machine tools are used to process groove in workpiece. During processing, the workpiece on the worktable performs longitudinal, lateral or rotational movement, and the inserting tool reciprocates up and down to slot the workpiece. A linear motion machine tool that uses the vertical reciprocating motion of the slotting tool to slot the keyway and the hole. The slotting machine, like the planer, also uses a single-edged tool (slotting tool) to cut the workpiece, but the planer is a horizontal layout, and the slotting machine is a vertical layout. Slotting machines have high productivity and accuracy. They are mostly used to process internal keyways or spline holes in single or small batch production. They can also process flat, square or polygonal holes, etc.
6. The slotting machine is used for slotting the flat and formed surface keyways
7. It is suitable for either single piece of small batch production
8. The main transmission mechanism of the slotting machine is used for converting the rotating motion of the crank gear into reciprocating motion of rain
9. The worktable of the machine is designed for longitudinal, cross and rotary feeding both automatically (only for D type model) and manually
10. It is stopped automatically, when the worktable is in case of trouble
Product main technical parameters:
Specification | Unit | B5020 | B5032 | B5040 |
Max. stroke of RAM | mm | 220 | 340 | 400 |
Ram maximum slotting length | mm | 200 | 320 | 500 |
Ram motion frequency | times/min | 32.50.80.125 | 20.32.50.80 | 7500 |
Ram tilt angle | ° | 0-8 | 0-8 | 20.32.50.80 |
Ram vertical adjustment distance | mm | 230 | 315 | 315 |
Cutter head bearing surface to the distance between the forearm bed | mm | 485 | 600 | 0-8 |
Table Diameter | mm | 500 | 630 | 25x40 |
The distance between the lower end of the sliding frame to work table | mm | 320 | 490 | 630 |
Max. longitudinal moving distance of working table | mm | 500 | 630 | 600 |
Max. transverse moving distance of working table | mm | 500 | 560 | 690 |
Table maximum rotation angle | ° | 360 | 360 | 620 |
Vertical and horizontal table power feed range | mm | 0.08-1.21 | 0.08-1.21 | 560 |
Table rotary feed range | mm | 0.052-0.783 | 0.052-0.783 | 0.08-1.21 |
Motor power | kw | 3 | 4 | 4 |
Motor speed | r/min | 1430 | 960 | 960 |
Machine weight | kg | 2200 | 3000 | 3700 |
Outline dimension | mm | 1916*1305*1995 | 2261*1495*2245 | 2290*1525*2485 |

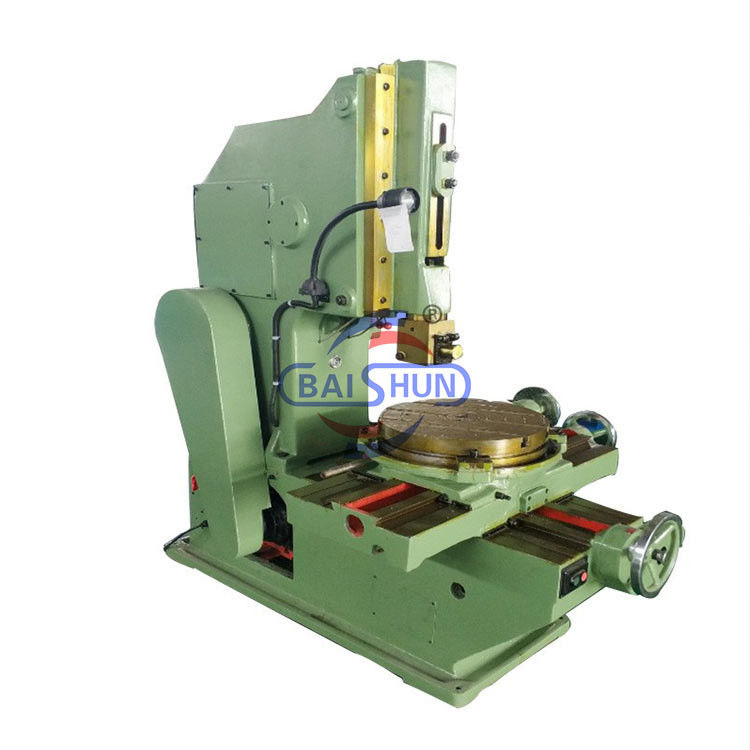

Machine picture
