Vertical Metal Shaper Key Way B5032 B5020 Metal Slotting Machine

vertical metal shapper key way B5032 B5020 metal slotting machine

This machine is used to process planes,model surfaces,key seating ect,is most suitable for the single-piece or small batch production

The main transmission is to change the crank gear's rotary motion into the reciprocating motion of the ram.

Worktable can be vertical, horizontal and rotary moving, maual or automatic feeding.The feed will stopped automatically when worktable is meet trouble.

This machine is well designed as standard,universalization,serialization,automation.Good appearance and convenient maintenance.

Metal slotting machines are specialized tools used for creating grooves or slots in workpieces.During the process, the workpiece is moved longitudinally, laterally, or rotated on the worktable while an inserting tool reciprocates up and down to cut the desired slot. This type of machine tool utilizes a linear motion mechanism that employs the vertical reciprocating motion of the slotting tool to create keyways and holes.

Advantage of vertical metal slotting machine

1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining.

2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Machine description:

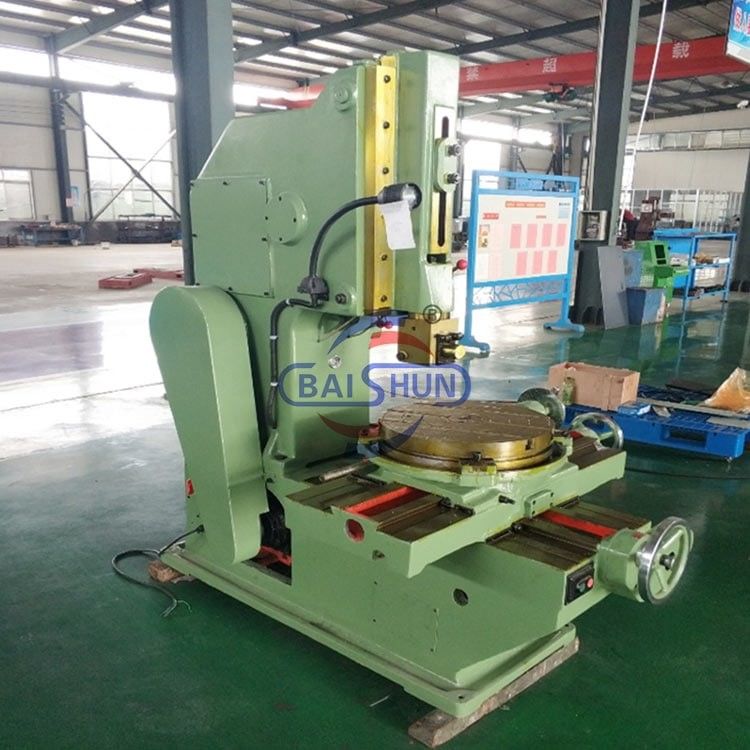

Machine picture
