Z3040x14 heavy duty radial drilling machine Single Column

Product Details

Place of Origin: CHINA

Brand Name: BAISHUN

Certification: CE for Radial Drilling Machine

Model Number: Z3040

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Set per Month

Get Best Price
Highlight:

heavy duty radial drilling machine

,

radial drilling machine Single Column

,

Z3040x14

Product Name:
Single Column Radial Drilling Machine
Max Drilling Diameter:
40mm
Spindle Travel(mm):
260mm
Radial Ratation Angle:
360°
Precision:
Accuracy
Main Motor:
2.2Kw
Power Supply:
220V/380V/415V
Function:
Tapping Holes
Spindle Taper:
Morse Taper 4
Color:
Customized
Product Name:
Single Column Radial Drilling Machine
Max Drilling Diameter:
40mm
Spindle Travel(mm):
260mm
Radial Ratation Angle:
360°
Precision:
Accuracy
Main Motor:
2.2Kw
Power Supply:
220V/380V/415V
Function:
Tapping Holes
Spindle Taper:
Morse Taper 4
Color:
Customized
Z3040x14 heavy duty radial drilling machine Single Column
Product Overview

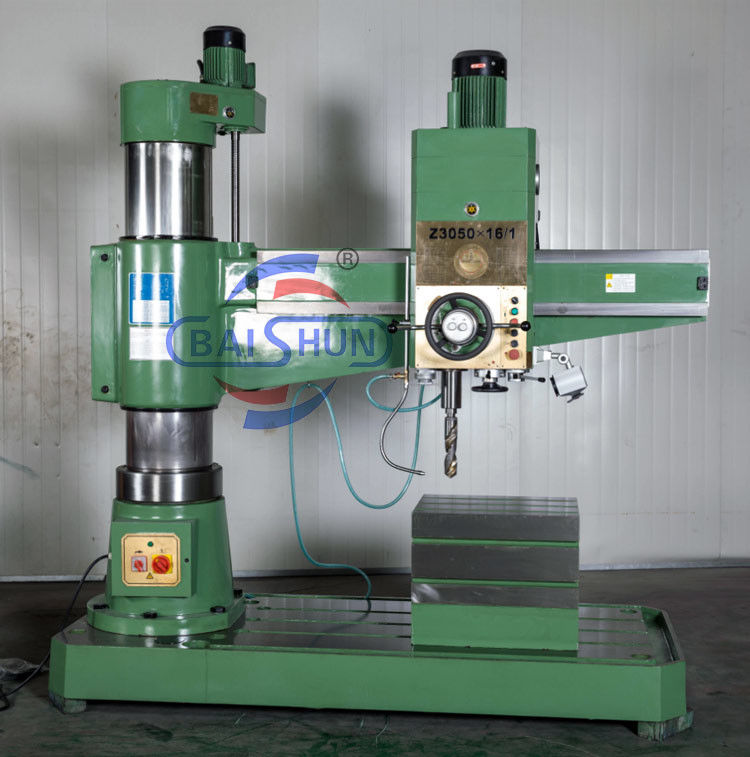

Z3050*16/1 Hydraulic Deep Hole Radial Drilling Machine Price
For the radial drilling machine, during in the process equipment conditions, can also be used for boring.According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among all kinds of drilling machines, radial drilling machines are easy to operate, flexible, widely applicable and typical, especially suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general machining workshops.

Radial drilling machine is widely used in single piece and small and medium batch production to process holes of workpieces with large volume and weight. The radial drilling machine has a wide processing range and can be used to drill various screw holes, threaded bottom holes and oil holes of large workpieces. The radial drilling machine is used to process small and medium-sized holes on heavy or porous workpieces. It is mainly composed of a base, a column, a rocker arm, a spindle box, a spindle worktable, etc.


1. Clamping for assemblies and speed change of spindle achieved by hydraulic power.

2. The Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.

3. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.

4. Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.

5. Main gears are all precision grind, ensuring high precision and low noise.





Product Parameters
Specification
Z3032X10
Z3040X14
Z3050X16
Z3063X18
Z3080X20
Max drilling diameter (mm)
32
40
50
63
80
Distance between spindle axis and coulumn(mm)
170-1100
260-1210
350-1500
400-1600
550-1600
Spindle travel(mm)
120
260
350
400
450
Spindle taper(morse)
MT4
MT4
MT5
MT6
MT6
Number of spindle speeds
6
12
12
16
16
Steps of spindle feeds
3
3
4
16
16
Radial ratation angle
360
360
360
180
180
Main motor (kw)
1.5
2.2
4
5.5
7.5



Z3040x14 heavy duty radial drilling machine Single Column 0Z3040x14 heavy duty radial drilling machine Single Column 1
