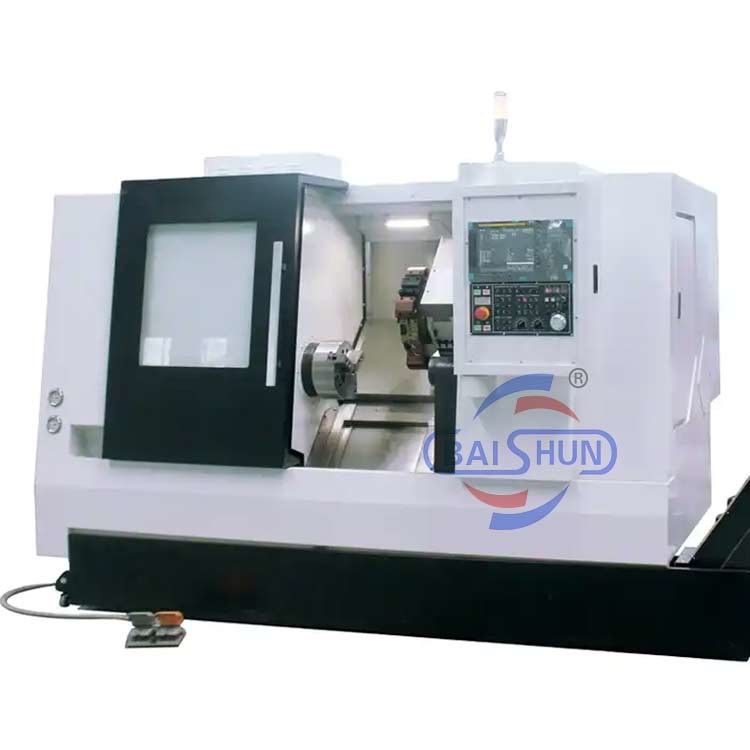

TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision
TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision
TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision
TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision
TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision

TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision

Product Details

Place of Origin: CHINA

Brand Name: BAISHUN

Certification: ISO

Model Number: TCK550

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 Set per Month

Get Best Price

Product Details

Product Description
Highlight:

Metal Slant Bed CNC lathe Machine

,

TCK560

,

CNC lathe Machine Automatic

Max. Spindle Speed:
Slant Bed CNC Lathe Machine
Max. Rotating Diameter Over Bed:
540mm
Max. Turning Diameter Over Slide:
270mm
Max. Processing Length:
700mm
Positioning Accuracy:
±0.016mm
X Travel:
220mm
Z Travle:
750mm
Applicable Industries:
Metal Working
Tailstock:
Manual
Power:
7.5kw
Machine Weight:
3800mm
Package:
Export Standard Wooden Case
Max. Spindle Speed:
Slant Bed CNC Lathe Machine
Max. Rotating Diameter Over Bed:
540mm
Max. Turning Diameter Over Slide:
270mm
Max. Processing Length:
700mm
Positioning Accuracy:
±0.016mm
X Travel:
220mm
Z Travle:
750mm
Applicable Industries:
Metal Working
Tailstock:
Manual
Power:
7.5kw
Machine Weight:
3800mm
Package:
Export Standard Wooden Case
TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision
TCK550 CNC Lathe Automatic High Precision Metal Slant Bed CNC lathe Machine
TCK550 series CNC horizontal lathe is a high-quality product designed and produced in accordance with the market and development needs based on the experience of our factory in designing horizontal CNC horizontal lathes for many years. The maximum machining diameter of the machine tool is φ380mm, and the maximum machining length is 315mm. The newly designed mainframe structure and reliable assembly process make the TCKseries machine tools fully upgraded. With stable and reliable product performance and innovative ergonomic design, the TCK series It will undoubtedly become a leader in the industry. This machine tool can process shaft and disc parts, turn threads, arcs, cones, and inner and outer surfaces of revolving bodies. In the design, the rigidity of the main shaft, bed, tailstock and other components is reasonably matched, which greatly improves the rigidity of the whole machine and ensures the stability during heavy cutting. Therefore, the machining accuracy of the outer circle of this machine tool can reach IT6~IT7 level. As a general-purpose machine tool, it is especially suitable for high-efficiency, large-scale, and high-precision machining of rotating body parts in industries such as automobiles, motors, bearings, and hydraulics.
Product Parameters
MAIN TECHNICAL DATA Unit TCK550 TCK40-750 TCK40-1000
The scope of work Maximum rotating diameter on the bed mm ∅540 ∅540 ∅540
Maximum turning diameter on the slide mm ∅270 ∅270 ∅270
Maximum processing diameter mm ∅400 ∅400 ∅400
Maximum processing length mm 700 700 900
Spindle Maximum spindle speed r/min 4000 4000 4000
Spindle runout mm 0.008/300 0.008/300 0.008/300
Spindle through hole diameter mm ∅65 ∅65 ∅65
Bar capacity mm ∅48 ∅48 ∅48
Hydraulic chuck inch 8 8 8
Spindle motor power kw 7.5 7.5 7.5
stroke X-axis travel mm 220 220 220
Z-axis travel mm 750 750 1000
Feed X axis fast moving m/min 20 20 20
Z axis fast moving m/min 20 20 20
Cutting feed mm/min 1-6000 1-6000 1-6000
Tail stock Tail stock stroke mm 550/manual 550/manual 800/manual
Tail stock sleeve stroke mm 120/ hydraulic/manual
Guide Bed rail tilt angle Deg. 30 30 30
Type   Liner guideway Liner guideway Liner guideway
Precision positioning accuracy mm 0.016 0.016 0.016
Repeatability mm 0.008 0.008 0.008
Other Machine weight kg 3800 3800 4200
Dimensions mm 2920x1680x2070 2920x1680x2070 3200x1680x2070

Machine pictures:
TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision 0TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision 1

CNC SYSTEM

TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision 2

Main Configuration

TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision 3

Assembly Process and Quality Control

TCK560 Metal Slant Bed CNC Lathe Machine Automatic High Precision 4
