Metal Cutting Automatic Alloy Wheel Slant Bed CNC Lathe Machine TCK550

Product Details

Place of Origin: CHINA

Brand Name: BAISHUN

Certification: ISO

Model Number: TCK550

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 Set per Month

Get Best Price
Highlight:

Wheel Slant Bed CNC Lathe Machine

,

TCK550

,

Slant Bed CNC Lathe Machine TCK550

Max. Spindle Speed:
Alloy Wheel Slant Bed CNC Lathe Machine
Max. Rotating Diameter Over Bed:
540mm
Max. Turning Diameter Over Slide:
270mm
Max. Processing Length:
700mm
Positioning Accuracy:
±0.016mm
X Travel:
220mm
Z Travle:
750mm
Applicable Industries:
Metal Working Plant
Tailstock:
Manually
Power:
7.5kw
Machine Weight:
3800mm
Package:
Customized
Max. Spindle Speed:
Alloy Wheel Slant Bed CNC Lathe Machine
Max. Rotating Diameter Over Bed:
540mm
Max. Turning Diameter Over Slide:
270mm
Max. Processing Length:
700mm
Positioning Accuracy:
±0.016mm
X Travel:
220mm
Z Travle:
750mm
Applicable Industries:
Metal Working Plant
Tailstock:
Manually
Power:
7.5kw
Machine Weight:
3800mm
Package:
Customized

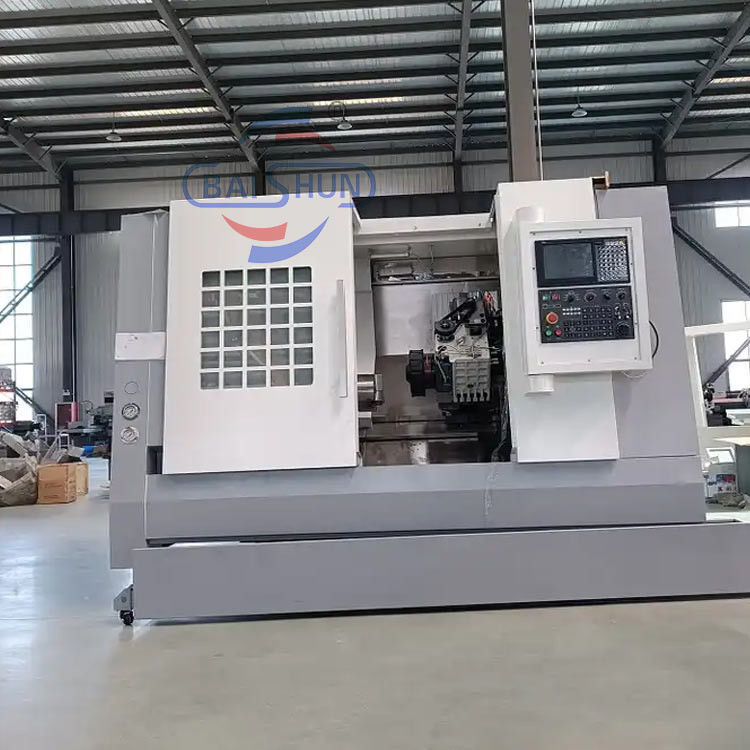

Metal Cutting Automatic Alloy Wheel Slant Bed CNC Lathe Machine TCK550
High Precision Metal Cutting Automatic Alloy Wheel Slant Bed CNC Lathe Machine
TCK series CNC horizontal slant bed lathe machine is a high-quality product designed and produced in accordance with the market and development needs based on the experience of our factory in designing horizontal CNC horizontal lathes for many years. This machine tool has a maximum diameter of φ360mm and a maximum length of 500mm for machining. We have upgraded the TCK50 series machines with a newly designed mainframe structure and a reliable assembly process. With its stable performance and innovative ergonomic design, the TCK50 series will undoubtedly become an industry leader. This lathe can handle shafts, discs, threads, arcs, cones, and both inner and outer surfaces of rotating objects. We have carefully matched the rigidity of the main spindle, bed, and tailstock to greatly improve the overall stability during heavy cutting. As a result, the machining accuracy of the outer circular surface can reach IT6 to IT7 level. This versatile machine tool is especially suitable for efficient, large-scale, and high-precision machining of rotating parts in industries such as automotive, electrical, bearing, and hydraulic.
Product Parameters
MAIN TECHNICAL DATA Unit TCK550 TCK40-750 TCK40-1000
The scope of work Maximum rotating diameter on the bed mm ∅540 ∅540 ∅540
Maximum turning diameter on the slide mm ∅270 ∅270 ∅270
Maximum processing diameter mm ∅400 ∅400 ∅400
Maximum processing length mm 700 700 900
Spindle Maximum spindle speed r/min 4000 4000 4000
Spindle runout mm 0.008/300 0.008/300 0.008/300
Spindle through hole diameter mm ∅65 ∅65 ∅65
Bar capacity mm ∅48 ∅48 ∅48
Hydraulic chuck inch 8 8 8
Spindle motor power kw 7.5 7.5 7.5
stroke X-axis travel mm 220 220 220
Z-axis travel mm 750 750 1000
Feed X axis fast moving m/min 20 20 20
Z axis fast moving m/min 20 20 20
Cutting feed mm/min 1-6000 1-6000 1-6000
Tail stock Tail stock stroke mm 550/manual 550/manual 800/manual
Tail stock sleeve stroke mm 120/ hydraulic/manual
Guide Bed rail tilt angle Deg. 30 30 30
Type   Liner guideway Liner guideway Liner guideway
Precision positioning accuracy mm 0.016 0.016 0.016
Repeatability mm 0.008 0.008 0.008
Other Machine weight kg 3800 3800 4200
Dimensions mm 2920x1680x2070 2920x1680x2070 3200x1680x2070
