Product Details
Place of Origin: CHINA
Brand Name: BAISHUN
Certification: ISO
Model Number: TCK550
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard wooden case package
Delivery Time: 30-35 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Set per Month
Max. Spindle Speed: |
OEM Slant Bed CNC Lathe Machine Price |
Max. Rotating Diameter Over Bed: |
540mm |
Max. Turning Diameter Over Slide: |
270mm |
Max. Processing Length: |
700mm |
Positioning Accuracy: |
±0.016mm |
X Travel: |
220mm |
Z Travle: |
750mm |
Applicable Industries: |
Metal Working Plant |
Tailstock: |
Manually |
Power: |
7.5kw |
Machine Weight: |
3800kg |
Color: |
White And Gray |
Max. Spindle Speed: |
OEM Slant Bed CNC Lathe Machine Price |
Max. Rotating Diameter Over Bed: |
540mm |
Max. Turning Diameter Over Slide: |
270mm |
Max. Processing Length: |
700mm |
Positioning Accuracy: |
±0.016mm |
X Travel: |
220mm |
Z Travle: |
750mm |
Applicable Industries: |
Metal Working Plant |
Tailstock: |
Manually |
Power: |
7.5kw |
Machine Weight: |
3800kg |
Color: |
White And Gray |

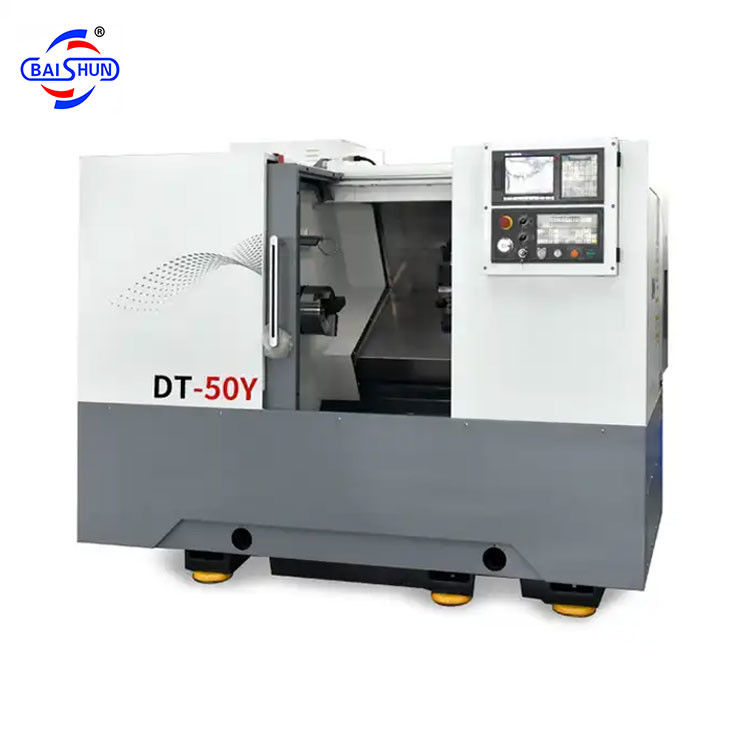

1.1 This series of machine tools is the company's main export mature products, the machine structure is compact, beautiful and pleasant appearance, spindle torque, high rigidity, stable and reliable performance, with excellent accuracy retention.
1.2 Using 30° or 45°) overall inclined bed structure, equipped with high precision preload Taiwan linear roller guide, the machine has high position accuracy, smooth chip removal, suitable for high-speed and high precision machining.
1.3 It is made of high precision spindle unit and spindle box.
Spindle Description:
High precision spindle bearing set and precision assembly and dynamic balance test of the spindle, to ensure high precision, low noise, strong rigidity.
MAIN TECHNICAL DATA | Unit | TCK550 | TCK40-750 | TCK40-1000 | |
The scope of work | Maximum rotating diameter on the bed | mm | ∅540 | ∅540 | ∅540 |
Maximum turning diameter on the slide | mm | ∅270 | ∅270 | ∅270 | |
Maximum processing diameter | mm | ∅400 | ∅400 | ∅400 | |
Maximum processing length | mm | 700 | 700 | 900 | |
Spindle | Maximum spindle speed | r/min | 4000 | 4000 | 4000 |
Spindle runout | mm | 0.008/300 | 0.008/300 | 0.008/300 | |
Spindle through hole diameter | mm | ∅65 | ∅65 | ∅65 | |
Bar capacity | mm | ∅48 | ∅48 | ∅48 | |
Hydraulic chuck | inch | 8 | 8 | 8 | |
Spindle motor power | kw | 7.5 | 7.5 | 7.5 | |
stroke | X-axis travel | mm | 220 | 220 | 220 |
Z-axis travel | mm | 750 | 750 | 1000 | |
Feed | X axis fast moving | m/min | 20 | 20 | 20 |
Z axis fast moving | m/min | 20 | 20 | 20 | |
Cutting feed | mm/min | 1-6000 | 1-6000 | 1-6000 | |
Tail stock | Tail stock stroke | mm | 550/manual | 550/manual | 800/manual |
Tail stock sleeve stroke | mm | 120/ hydraulic/manual | |||
Guide | Bed rail tilt angle | Deg. | 30 | 30 | 30 |
Type | Liner guideway | Liner guideway | Liner guideway | ||
Precision | positioning accuracy | mm | 0.016 | 0.016 | 0.016 |
Repeatability | mm | 0.008 | 0.008 | 0.008 | |
Other | Machine weight | kg | 3800 | 3800 | 4200 |
Dimensions | mm | 2920x1680x2070 | 2920x1680x2070 | 3200x1680x2070 |
