The TCK series CNC lathe is a high-quality product designed and produced by our company to meet market development needs. This machine tool can process shaft and disc parts, turn threads, arcs, cones, and inner and outer surfaces of rotating parts, and perform efficient, large-scale, and high-precision processing on rotating parts.
Standard configuration:
-GSK988TA control system;
-3 jaws 8''hydraulic chuck with hydraulic station;
-8 station servo turret;
-Without hydraulic tailstock;
Optional configuration:
-Siemens808D,Fanuc0i-TF, Syntec22TA, Mitsubishi;
-3-jaws 10" hydraulic chuck;
-12 station servo turret;
-Hydraulic tailstock;
-Chip conveyor ;
-Auto servo bar feeder and parts catcher;
| MAIN TECHNICAL DATA |
Unit |
TCK550 |
TCK40-750 |
TCK40-1000 |
| The scope of work |
Maximum rotating diameter on the bed |
mm |
∅540 |
∅540 |
∅540 |
| Maximum turning diameter on the slide |
mm |
∅270 |
∅270 |
∅270 |
| Maximum processing diameter |
mm |
∅400 |
∅400 |
∅400 |
| Maximum processing length |
mm |
700 |
700 |
900 |
| Spindle |
Maximum spindle speed |
r/min |
4000 |
4000 |
4000 |
| Spindle runout |
mm |
0.008/300 |
0.008/300 |
0.008/300 |
| Spindle through hole diameter |
mm |
∅65 |
∅65 |
∅65 |
| Bar capacity |
mm |
∅48 |
∅48 |
∅48 |
| Hydraulic chuck |
inch |
8 |
8 |
8 |
| Spindle motor power |
kw |
7.5 |
7.5 |
7.5 |
| stroke |
X-axis travel |
mm |
220 |
220 |
220 |
| Z-axis travel |
mm |
750 |
750 |
1000 |
| Feed |
X axis fast moving |
m/min |
20 |
20 |
20 |
| Z axis fast moving |
m/min |
20 |
20 |
20 |
| Cutting feed |
mm/min |
1-6000 |
1-6000 |
1-6000 |
| Tail stock |
Tail stock stroke |
mm |
550/manual |
550/manual |
800/manual |
| Tail stock sleeve stroke |
mm |
120/ hydraulic/manual |
| Guide |
Bed rail tilt angle |
Deg. |
30 |
30 |
30 |
| Type |
|
Liner guideway |
Liner guideway |
Liner guideway |
| Precision |
positioning accuracy |
mm |
0.016 |
0.016 |
0.016 |
| Repeatability |
mm |
0.008 |
0.008 |
0.008 |
| Other |
Machine weight |
kg |
3800 |
3800 |
4200 |
| Dimensions |
mm |
2920x1680x2070 |
2920x1680x2070 |
3200x1680x2070 |

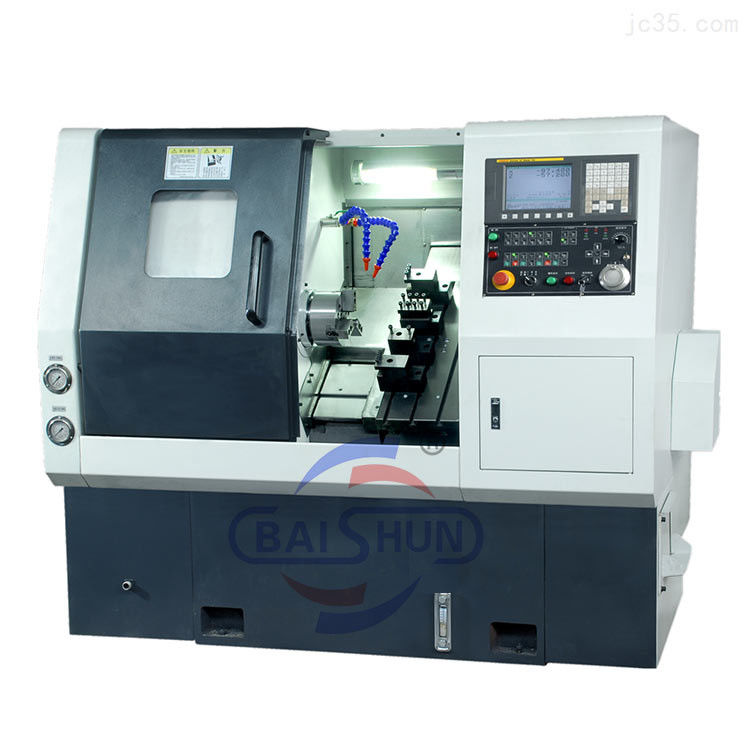

Machine pictures:
