Cnc Roll Turning Lathe Machine Heavy Duty Big Bore Metal Lathe CA8450

Name: Cnc Roll Turning Lathe Machine Heavy Duty Big Bore Metal Lathe CA8450
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: CA8450
Price: 96,300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: CE，ISO

Model Number: CA8450

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 Set per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                cnc roll turning lathe machine, roll turning lathe machine Heavy Duty, CA8450


Product Name:	CA8450 Roll Turning Lathe Machine	Model:	CA8450
Max. Swing Diameter:	500mm	Automatic:	Manual
Function:	Roll Turning	Main Motor Power:	22KW
Application:	Metal Works	Voltage:	380v 50hz
Machine Weight:	8500KG	Color:	Customized

Product Name:	CA8450 Roll Turning Lathe Machine
Model:	CA8450
Max. Swing Diameter:	500mm
Automatic:	Manual
Function:	Roll Turning
Main Motor Power:	22KW
Application:	Metal Works
Voltage:	380v 50hz
Machine Weight:	8500KG
Color:	Customized

Cnc Roll Turning Lathe Machine Heavy Duty Big Bore Metal Lathe CA8450

Heavy Duty Big Bore Metal Lathe Turning CA8450 Roll Turning Lathe machine

Product Overview

The lathe machine for rolling is a versatile tool for machining that can use high-speed steel and carbide cutting tools for rough and finish turning processes. It can machine various types of metals like different structural steels, casting steels, and irons, as well as cylindrical, conical, and spherical surfaces both internally and externally. It can also create threads on non-metal materials and shape various curved rotary surfaces. Moreover, it can maintain a consistent cutting speed.

CNC Roll Turning Lathe
Roll diameter: 500mm, 650mm, 800mm
Roll length: as requirement
CNC system: Siemens828Dsl/ GSK980TDc

Features:

This CNC roll turning lathe machines are mainly used in the semi finishing and finishing turning processing work for cast iron, steel and Non-ferrous metal rolls. The machines adopt high speed iron steel, tungsten-carbide or other kind of material cutters. These kinds of designs support the machines to do turning and repairing processing work for the rolls’ ex circle, head face, all kinds of complex groove face and curved surface. They can also process the similar cast iron, steel and non-ferrous metal shafts as rolls in same weight range for semi finishing and finishing work on ex circle, head face, and all kinds of complex groove face.

The machine adopts four guide way or four in one guide way. The longitudinal and cross movement adopt high rigid rectangular guide way .With the combination frame blade holder of high rigid cutter row on the rectangular, the machines have improved the rigidity and stability. We adopt high accuracy and radial clearance of the double row short cylindrical roller bearings as machine’s spindle bearings to ensure the machine’s high rigidity, stability and high accuracy. All the designs make sure the machines in integrated processing precision. And the work pieces will be processed in high accuracy.

Machines adopt paste hardened plastic guide way and centralized lubrication systems for every guide ways’ lubrication. It uses fixed-point quantitative oil supply principle. This ensures that the dynamic response of the system and the long using life for the machine’s guide ways’ lubrication. Machines adopt full stainless steel covers for guide way. This kind of design will keep the machine’s accuracy.

Technical Specification

Main parameters	Unit	CK8450	CA8463	CA8480
Max.turning diameter	mm	500	630	800
Max. turning length	mm	2500	3500	4000
Center height	mm	320	380	550
Max. Weight of workpiece	kg	3500	6500	14000
Range of spindle speed	r/min	1-112	1-75	1-31.5
Number of spindle speeds		16	16	16
Max. Cutting force	KN	40	60	70
Max. Torque of face plate	KN.m	10	25	55
The tailstock sleeve travel	mm	150	200	300
Main motor power	kw	15	22	37
Overall dimensions	mm	5155X1368X1400	7100X1600X1550	9240x2280x1800
Machine weight	kg	7500	14000	28000

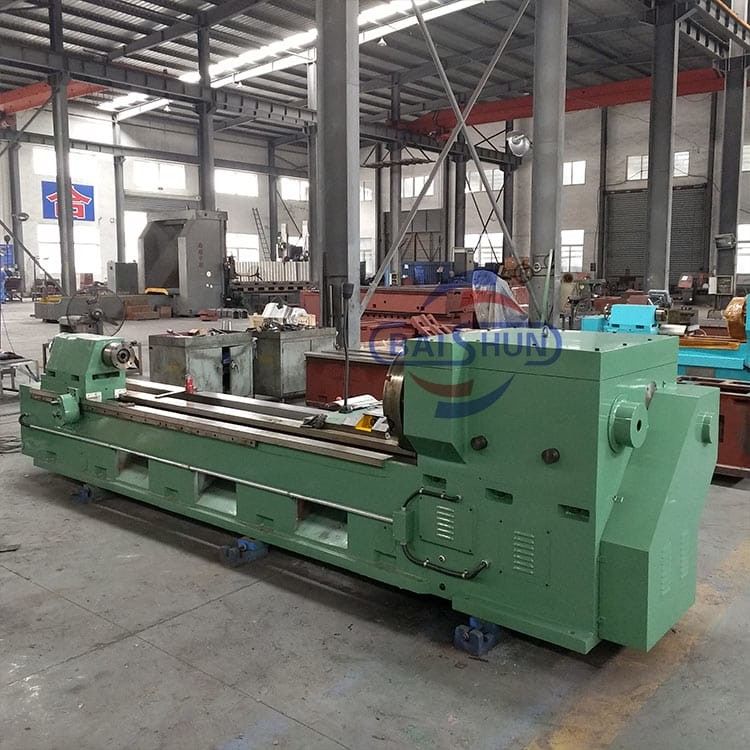

Cnc Roll Turning Lathe Machine Heavy Duty Big Bore Metal Lathe CA8450 0

Cnc Roll Turning Lathe Machine Heavy Duty Big Bore Metal Lathe CA8450 2

Cnc Roll Turning Lathe Machine Heavy Duty Big Bore Metal Lathe CA8450 3
