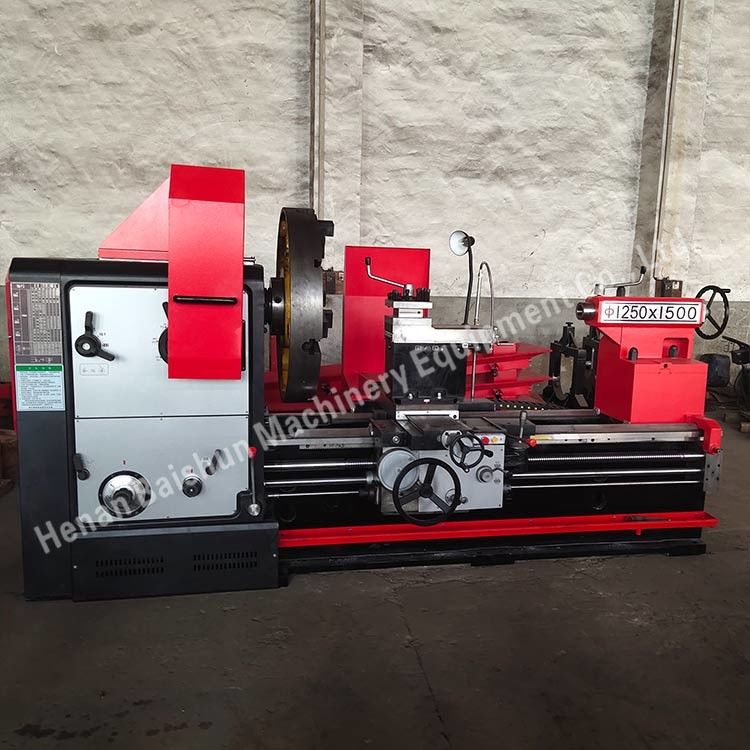

Precision Manual Universal Lathe Machine For Metal Heavy Turning
Precision Manual Universal Lathe Machine For Metal Heavy Turning
Precision Manual Universal Lathe Machine For Metal Heavy Turning
Precision Manual Universal Lathe Machine For Metal Heavy Turning
Precision Manual Universal Lathe Machine For Metal Heavy Turning

Precision Manual Universal Lathe Machine For Metal Heavy Turning

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: CE,ISO

Model Number: CW61125Q,CW62125Q

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Manual Universal Lathe Machine

,

Precision Universal Lathe Machine

Product Name:
Precision Lathe Machine Manual Universal Lathe Machine For Metal Heavy Turning
Type:
Floor Type
Swing Diameter Over Bed:
1250mm
Swing Diameter Over Carriage:
920mm
Max. Weight Of Workpiece:
3500kg
Spindle Hole Diameter:
105mm
Guide Rail Width:
600mm
Key Words:
Horizontal Lathe
Product Name:
Precision Lathe Machine Manual Universal Lathe Machine For Metal Heavy Turning
Type:
Floor Type
Swing Diameter Over Bed:
1250mm
Swing Diameter Over Carriage:
920mm
Max. Weight Of Workpiece:
3500kg
Spindle Hole Diameter:
105mm
Guide Rail Width:
600mm
Key Words:
Horizontal Lathe
Precision Manual Universal Lathe Machine For Metal Heavy Turning

Precision Lathe Machine Manual Universal Lathe Machine For Metal Heavy Turning

Product Introduction:

This machine tool is mainly responsible for various turning tasks. It can turn the end faces, outer circles, inner holes, metric threads, inch threads, module threads, and diametral pitch threads of various parts. The upper tool holder can be used to shorten the taper of a single motor vehicle, and the upper tool holder can also be fed longitudinally in conjunction with the motor vehicle to lengthen the taper. In addition, it can also undertake drilling, boring and other processes. The machine tool has high power, high speed, and strong rigidity.

Key Features:

  • Versatile lathe compatible with high-speed steel and carbide cutting tools for various materials.
  • Medium frequency hardened for superior hardness and precision.
  • Robust spindle rigidity and supporting capacity ensure stable machining operations.
  • Wide speed range with smooth motion and low temperature rise for efficient processing.

Precision Manual Universal Lathe Machine For Metal Heavy Turning 0

CW61125Q/CW62125Q Series Lathe Machine( 2.5 tons load capacity):
Swing over bed: 1250mm;
Swing over cross slide: 920mm;
Processing length: it's up to customer's requirements;
Bed width: 600mm;
Load capacity: 2.5 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.



Specification:

Technical items
Model		 CW6163
/
CW6263		 CW6180Q
/
CW6280Q		 CW6180B
/
CW6280B		 CW61110Q /
CW62110Q		 CW61125Q
/
CW62125Q		 CW61125B CW61160B CW61160 CW61200 CW61250
Swing diameter over bed 630mm 800mm 800mm 1100mm 1250mm 1250mm 1600mm 1600mm 2000mm 2500mm
Swing diameter over carriage/cross slide 350mm 480mm 480mm 800mm 920mm 860mm 1200mm 1200mm 1600mm 2100mm
Swing diameter over gap/saddle CW6163-
No gap		 CW6180Q-
No gap		 CW6180B-
No gap		 CW61110Q--
No gap		 CW61125Q--No gap
No gap
CW6263-
800mm		 CW6280Q-
1000mm		 CW6280B-
1000mm		 CW62110Q--
1300mm		 CW62125Q--1500mm
Max. Length of workpiece 1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm; 12000mm; 14000mm; 16000mm; 18000mm; 20000mm
Max.weight of workpiece 2 tons 2 tons 2.5 tons 2.5 tons 2.5 tons 6 tons 6 tons 16 tons 16 tons 16 tons
Spindle hole diameter 105mm 105mm 105mm 105mm 105mm 130mm 130mm 130mm 130mm 130mm
Guide rail width 550mm 550mm 600mm 600mm 600mm 755mm 755mm 1100mm 1100mm 1100mm
Main motor power 11 kw 11 kw 11 kw 11 kw 11 kw 22 kw 22 kw 22 kw 22 kw 22 kw


Precision Manual Universal Lathe Machine For Metal Heavy Turning 1

We are a direct-sale lathe machine manufacturer, not a trading company, which means we can offer you the best prices.
Welcome get in touch with us Whatsapp:+86 18003851898
