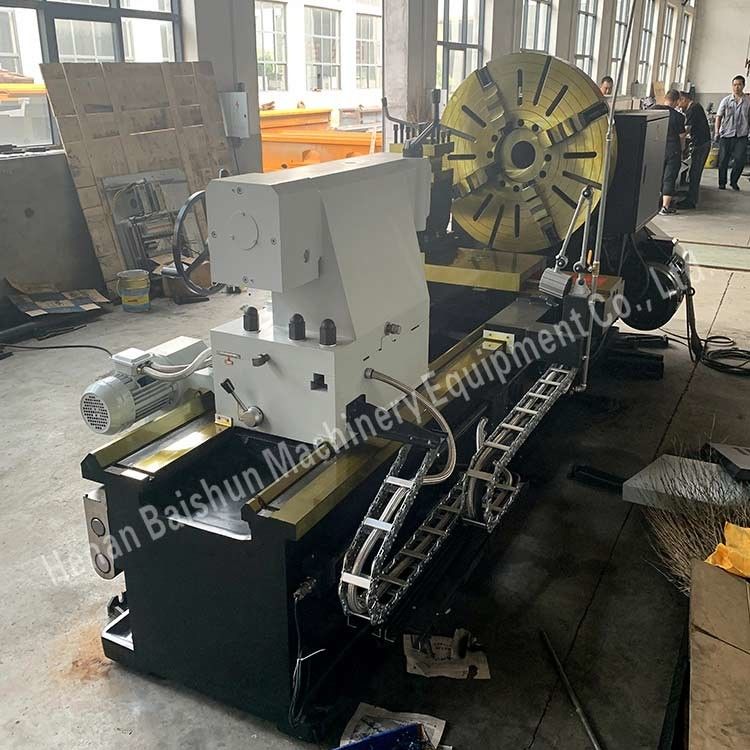

Large Size Manual Horizontal Lathe Machine High Accuracy

Large Size Lathe Machine Factory Direct Sale Horizontal Manual Lathe Machine

Product Introduction:

CW Heavy Duty Lathe Machine: Your Ultimate Solution for Turning
Our CW Heavy Duty Lathe Machine is the upgraded version of our heavy horizontal lathe. With years of production experience, advanced design methods, and cutting-edge manufacturing technology, it meets the latest national precision standards. This machine combines electrical, automatic control, hydraulic control, and modern mechanical designs to deliver precise manufacturing in various disciplines.

• Our machine offers high precision, with a minimum unit set at 0.001mm. The X-axis repeat positioning accuracy is 0.010mm, and the Z-axis repeat positioning accuracy is 0.012mm.
• With high hardness and excellent rigidity, our machine's guide rails and saddle rails are made from special materials and undergo audio quenching. The hard rail and high-frequency quenching result in superior wear resistance, durability, and consistent processing accuracy.
• The machine is highly stable, thanks to its high-strength cast iron construction and the addition of copper and chromium special materials. The bed rail has a quenching depth of 4mm and a hardness of 52° or higher, effectively enhancing wear resistance and stability.
• The machine features centralized automatic lubrication for the guide rails and screws, allowing for flexible movement and reducing heat distortion. This ensures precision and stability during operation.
• Our machine operates with low noise levels, as the gears undergo precision grinding to improve hardness and reduce noise.

CW61125B Series Lathe Machine( 6 tons load capacity):
Swing over bed: 1250mm;
Swing over cross slide: 860mm;
Processing length: it's up to customer's requirements;
Bed width: 755mm;
Load capacity: 6 tons;
Spindle bore: 130mm;
Main motor power: 22kw.

Specification:



We are a direct-sale lathe machine manufacturer, not a trading company, which means we can offer you the best prices.
Welcome get in touch with us Whatsapp:+86 18003851898
