Heavy Duty Lathe Milling Machine
, CNC Flat Bed Lathe Milling Machine

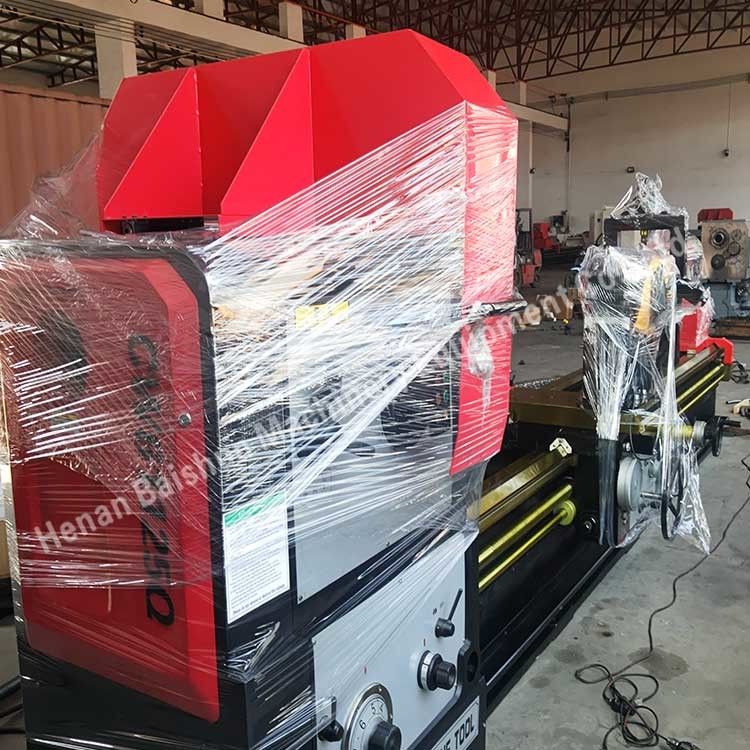

Heavy Duty Large Metal Lathe Milling Machine Combo CNC Flat Bed Lathe Machine
Heavy Duty Large Metal Lathe Milling Combo CNC Flat Bed China Lathe Machine Supplier
Product Introduction:
Product Application (lathe machine):
This lathe machine is primarily designed for precision turning of round cylindrical, conical, and other rotating parts. It can handle various commonly used metric, inch, module, and diametral pitch threads, as well as perform broaching, oil groove cutting, and keyway machining.
With its versatility, this lathe machine is capable of internal and external turning, tapering, and machining different types of threads, including metric, module, and inch threads. It is also suitable for drilling and creating oil slots.
Product Description:
● Ideal for turning lengthy workpieces
● Bedways surface treated with supersonic frequency hardening
● High rigidity and accuracy in the spindle system
● Headstock equipped with clutch for enhanced safety and reliability
● X and Z axis with centralized ballscrew
● Features a centralized lubrication system
Specification:
Technical items
Model |
CW6163
/
CW6263 |
CW6180Q
/
CW6280Q |
CW6180B
/
CW6280B |
CW61110Q /
CW62110Q |
CW61125Q
/
CW62125Q |
CW61125B |
CW61160B |
CW61160 |
CW61200 |
CW61250 |
|
| Swing diameter over bed |
630mm |
800mm |
800mm |
1100mm |
1250mm |
1250mm |
1600mm |
1600mm |
2000mm |
2500mm |
|
| Swing diameter over carriage/cross slide |
350mm |
480mm |
480mm |
800mm |
920mm |
860mm |
1200mm |
1200mm |
1600mm |
2100mm |
|
| Swing diameter over gap/saddle |
CW6163-
No gap |
CW6180Q-
No gap |
CW6180B-
No gap |
CW61110Q--
No gap |
CW61125Q--No gap |
No gap |
CW6263-
800mm |
CW6280Q-
1000mm |
CW6280B-
1000mm |
CW62110Q--
1300mm |
CW62125Q--1500mm |
| Max. Length of workpiece |
1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm; 12000mm; 14000mm; 16000mm; 18000mm; 20000mm |
| Max.weight of workpiece |
2 tons |
2 tons |
2.5 tons |
2.5 tons |
2.5 tons |
6 tons |
6 tons |
16 tons |
16 tons |
16 tons |
|
| Spindle hole diameter |
105mm |
105mm |
105mm |
105mm |
105mm |
130mm |
130mm |
130mm |
130mm |
130mm |
|
| Guide rail width |
550mm |
550mm |
600mm |
600mm |
600mm |
755mm |
755mm |
1100mm |
1100mm |
1100mm |
|
| Main motor power |
11 kw |
11 kw |
11 kw |
11 kw |
11 kw |
22 kw |
22 kw |
22 kw |
22 kw |
22 kw |
|
The machine is mainly suitable for cutting the workpiece inside and outside round cylindrical, cone and other rotating parts, machinable various commonly used metric, inch, module and diametral pitch thread, and broaching oil groove and keyway.
We are a direct-sale lathe machine manufacturer, not a trading company, which means we can offer you the best prices.
