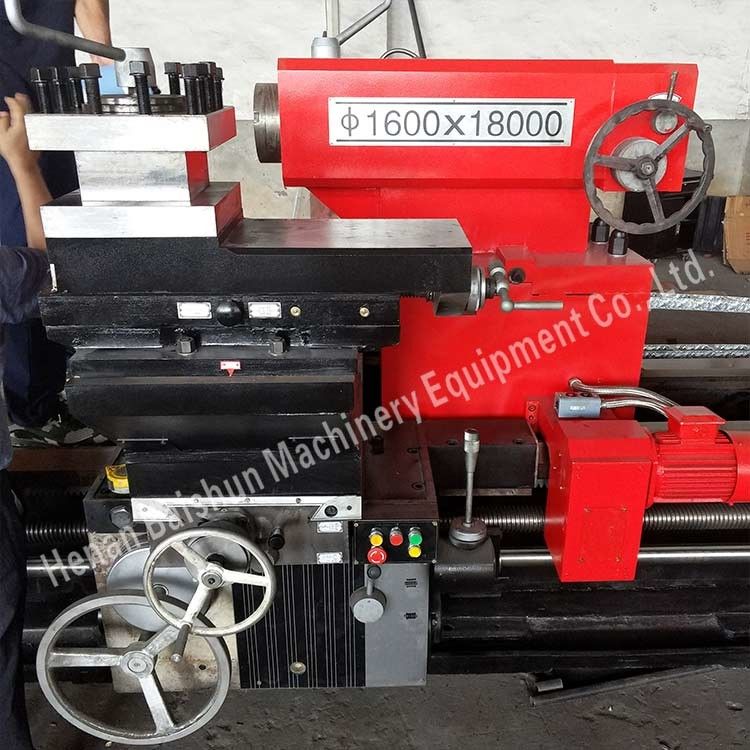

Heavy Duty Universal Lathe Large Diameter Manual Ordinary Lathe Machine

Name: Heavy Duty Universal Lathe Large Diameter Manual Ordinary Lathe Machine
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: CW61160B
Price: 188000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: CE,ISO

Model Number: CW61160B

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 50 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Heavy Duty Universal Lathe, Large Diameter Universal Lathe


Product Name:	Heavy Duty Universal Lathe Large Diameter Manual Ordinary Lathe Machine For Sale	Modle:	CW61160B
Swing Diameter Over Bed:	1600 Mm	Spindle Motor Power(Kw):	22kw
Range Of Spindle Speed(r.p.m):	2 - 200 R.p.m	Spindle Bore(mm):	130mm
Width Of Bed (mm):	755mm	Max.Weight Of Workpiece:	6000kg

Product Name:	Heavy Duty Universal Lathe Large Diameter Manual Ordinary Lathe Machine For Sale
Modle:	CW61160B
Swing Diameter Over Bed:	1600 Mm
Spindle Motor Power(Kw):	22kw
Range Of Spindle Speed(r.p.m):	2 - 200 R.p.m
Spindle Bore(mm):	130mm
Width Of Bed (mm):	755mm
Max.Weight Of Workpiece:	6000kg

Heavy Duty Universal Lathe Large Diameter Manual Ordinary Lathe Machine

Heavy Duty Universal Lathe Large Diameter Manual Ordinary Lathe Machine For Sale

Product Introduction:

Our machine is perfect for cutting round cylindrical, conical, and other rotating parts. It can handle various commonly used metric, inch, module, and diametrical pitch threads. Additionally, it can create oil grooves and keyways.

This lathe machine is designed for internal and external turning, tapering, and other rotating surfaces. It is capable of machining steel, castings, nonferrous metals, and more.With high dimensional accuracy (IT6-IT7) and excellent surface roughness, our machine ensures top-quality results.

1. Bed rail by super audio quenching and grinding.

2. Precision grinding of the main shaft box, low noise.

3. More thread type.

4. Electrical safety performance is good, high reliability. 5. With electromagnetic brake, the color of available options.

CW61160 Series Lathe Machine( 16 tons load capacity):
Swing over bed: 1600mm;
Swing over cross slide: 1200mm;
Processing length: it's up to customer's requirements;
Bed width: 1100mm;
Load capacity: 16 tons;
Spindle bore: 130mm;
Main motor power: 22kw.

Heavy Duty Universal Lathe Large Diameter Manual Ordinary Lathe Machine 0

Specification:

Technical items
Model

CW6163
/
CW6263

CW6180Q
/
CW6280Q

CW6180B
/
CW6280B

CW61110Q /
CW62110Q

CW61125Q
/
CW62125Q

CW61125B

CW61160B

CW61160

CW61200

CW61250

Swing diameter over bed

630mm

800mm

1100mm

1250mm

1600mm

2000mm

2500mm

Swing diameter over carriage/cross slide

350mm

480mm

800mm

920mm

860mm

1200mm

1600mm

2100mm

Swing diameter over gap/saddle

CW6163-
No gap

CW6180Q-
No gap

CW6180B-
No gap

CW61110Q--
No gap

CW61125Q--No gap

No gap

CW6263-
800mm

CW6280Q-
1000mm

CW6280B-
1000mm

CW62110Q--
1300mm

CW62125Q--1500mm

Max. Length of workpiece

1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm; 12000mm; 14000mm; 16000mm; 18000mm; 20000mm

Max.weight of workpiece

2 tons

2.5 tons

6 tons

16 tons

Spindle hole diameter

105mm

130mm

Guide rail width

550mm

600mm

755mm

1100mm

Main motor power

11 kw

22 kw

We are a direct-sale lathe machine manufacturer, not a trading company, which means we can offer you the best prices.
Welcome get in touch with us Whatsapp:+86 18003851898
