Product Details
Place of Origin: Henan, China
Brand Name: BAISHUN MACHINERY
Certification: CE/ISO9001
Model Number: CK5116
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard wooden case package or Negotiation with customers
Delivery Time: 45 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Product Name: |

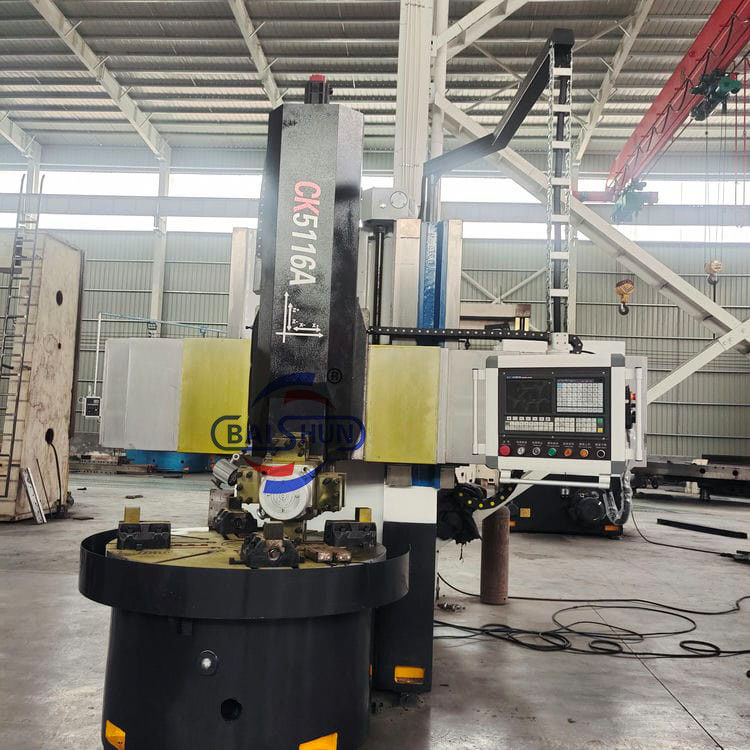

CK5116 Automatic Vertical Lathe |
Machine Type: |
CK5116 |
Max. Turning Diameter(mm): |
1600 |
Max. Height Of Workpiece(mm): |
1200 |
Worktable Size(mm): |
1400 |
Max.weight Of Workpiece: |
3.2tons |
No. Of Spindles: |
Single |
Voltage: |
380V |
Key Words: |
Vertical Turning Lathe |
Function: |
Metal Turning |
Product Name: |
CK5116 Automatic Vertical Lathe |
Machine Type: |
CK5116 |
Max. Turning Diameter(mm): |
1600 |
Max. Height Of Workpiece(mm): |
1200 |
Worktable Size(mm): |
1400 |
Max.weight Of Workpiece: |
3.2tons |
No. Of Spindles: |
Single |
Voltage: |
380V |
Key Words: |
Vertical Turning Lathe |
Function: |
Metal Turning |
China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.
Main Features:
1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter is 1600mm to 2600mm of single column vertical lathe, For CK5116 type, it is designed with the table diameter of 1400mm, and the standard maximum machining height is 1200mm.
2. The transmission device is a four-speed sleepless transmission, which is convenient, sensitive and reliable.
3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.
4. The machine is suitable for high speed steel tools and carbide cutting tool processing of non-ferrous metal, black metal and nonmetal materials. On the machine can complete the following processes:Turning the inner and outer cylindrical surface of the plane; all kinds of hook face , inner and outer cone face, thread, cutting slot and cutting.
Machine parameter
CK518 |
CK5112Q |
CK5112A |
CK5116Q |
CK5120A |
CK5126A |
|
Max. turning diameter of vertical tool rest (mm) |
800 |
1200 |
1200 |
1600 |
2000 |
2600 |
Working table diameter (mm) |
700 |
1000 |
1000 |
1400 |
1800 |
2200 |
Max. height of work-piece (mm) |
800 |
1000 |
1000 |
1200 |
1250 |
1400 |
Max. weight of work-piece (kg) |
1500 |
1500 |
3200 |
3200 |
8000 |
8000 |
Range of worktable rotation speed (rpm) |
30-260 |
20-180 |
6.3-200 |
15-160 |
3.2-100 |
2.2-70 |
Feeding series |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
Range of tool rest feed (mm/min) |
0.25-90 |
0.25-90 |
0.8-86 |
0.25-90 |
0.8-86 |
0.8-86 |
Cross beam travel (mm) |
500 |
1000 |
650 |
1200 |
890 |
1090 |
Horizontal travel of tool rest (mm) |
500 |
700 |
700 |
900 |
1115 |
1400 |
Vertical travel of tool rest (mm) |
450 |
500 |
650 |
750 |
800 |
800 |
Size of section of cutter bar (mm) |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
Main motor power (kw) |
11 |
15 |
22 |
15 |
30 |
30 |
Detail Machine Photo:
