CK5112 CNC Single Column Vertical Lathe Machine Vertical Milling Machine

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price
Highlight:

CK5112 Vertical Milling Machine

,

Vertical Milling Machine

,

Single Column Vertical Milling Machine

Product Name:
Vertical Milling Machine
Machine Type:
CK5112
Max. Turning Diameter(mm):
1200
Max. Height Of Workpiece(mm):
1000
Worktable Size(mm):
1000
No. Of Spindles:
Single
Positioning Accuracy (mm):
±0.005
Voltage:
380V
Key Words:
Vertical Turning Lathe
Function:
Metal Turning
Product Name:
Vertical Milling Machine
Machine Type:
CK5112
Max. Turning Diameter(mm):
1200
Max. Height Of Workpiece(mm):
1000
Worktable Size(mm):
1000
No. Of Spindles:
Single
Positioning Accuracy (mm):
±0.005
Voltage:
380V
Key Words:
Vertical Turning Lathe
Function:
Metal Turning
CK5112 CNC Single Column Vertical Lathe Machine Vertical Milling Machine

CK5112 CNC Single Column Vertical Lathe Machine Vertical Milling Machine:

China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.

CK5112 CNC Vertical Lathe

Main Features:

1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter can be 800mm to 2600mm of single column vertical lathe, For CK5112 type, it is designed with the table diameter of 1000mm, and the maximum machining height is 1000mm.

2. The transmission device is a four-speed sleepless transmission, which is convenient, sensitive and reliable.

3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.

4. The machine is suitable for high speed steel tools and carbide cutting tool processing of non-ferrous metal, black metal and nonmetal materials. On the machine can complete the following processes:Turning the inner and outer cylindrical surface of the plane; all kinds of hook face , inner and outer cone face, thread, cutting slot and cutting.



Machine parameter

Model

CK518

CK5112Q

CK5112A

CK5116Q

CK5120A

CK5126A

Max. turning diameter of vertical tool rest (mm)

800

1200

1200

1600

2000

2600

Working table diameter (mm)

700

1000

1000

1400

1800

2200

Max. height of work-piece (mm)

800

1000

1000

1200

1250

1400

Max. weight of work-piece (kg)

1500

1500

3200

3200

8000

8000

Range of worktable rotation speed (rpm)

30-260

20-180

6.3-200

15-160

3.2-100

2.2-70

Feeding series

Stepless

Stepless

Stepless

Stepless

Stepless

Stepless

Range of tool rest feed (mm/min)

0.25-90

0.25-90

0.8-86

0.25-90

0.8-86

0.8-86

Cross beam travel (mm)

500

1000

650

1200

890

1090

Horizontal travel of tool rest (mm)

500

700

700

900

1115

1400

Vertical travel of tool rest (mm)

450

500

650

750

800

800

Size of section of cutter bar (mm)

30*40

30*40

30*40

30*40

30*40

30*40

Main motor power (kw)

11

15

22

15

30

30



Detail Machine Photo:

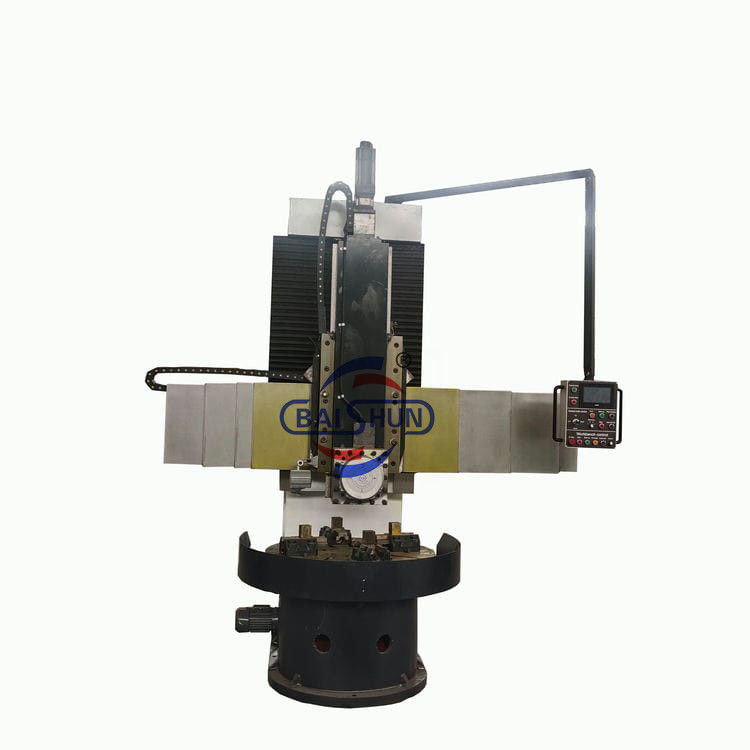

CK5112 CNC Single Column Vertical Lathe Machine Vertical Milling Machine 0

CK5112 CNC Single Column Vertical Lathe Machine Vertical Milling Machine 1







CK5112 CNC Single Column Vertical Lathe Machine Vertical Milling Machine 2
