C5112 VTL Single Column Turret Conventional Vertical Lathe Torno

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 35 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Sets per Month

Get Best Price
Highlight:
Name:
Conventional Vertical Lathe Torno
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
1200 Mm
Weight (KG):
1000mm
Max.load Capacity:
1.5tons
Type:
Vertical Type
Automatic:
Manual Type
Spindle Motor Power(kW):
15kw
Voltage:
380V
Warranty:
1 Year
Name:
Conventional Vertical Lathe Torno
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
1200 Mm
Weight (KG):
1000mm
Max.load Capacity:
1.5tons
Type:
Vertical Type
Automatic:
Manual Type
Spindle Motor Power(kW):
15kw
Voltage:
380V
Warranty:
1 Year
C5112 VTL Single Column Turret Conventional Vertical Lathe Torno

C5112 VTL Single Column Turret Conventional Vertical Lathe Torno



Description:

The Manual type vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.

Compare with conventional lathes, which are typically horizontal and require the workpiece to be mounted on a rotating chuck, a vertical lathe has a vertical spindle that holds and rotates the workpiece. The cutting tool is mounted on a tool turret that moves in multiple axes, allowing for precise and complex machining operations.

The vertical lathes are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio because the vertical orientation minimizes the effects of gravity on the workpiece, reducing the risk of deflection and distortion.

Additionally, vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The Manual type vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, making them an essential component of modern manufacturing processes.



Specification:

Model

C518

C5112

C5116

C5120

C5125

Max.turning dia.(mm)

800

1200

1600

2000

2500

Max.cutting height(mm)

800

1000

1000

1250

1250

Max.loading weight(tons)

1.2

3.2

5

8

10

Worktable diameter(mm)

720

1000

1400

1800

2250

Worktable speed range(r/min)

30-260

6.3-200

5-160

3.2-100

2-63

Max worktable torque(n.m)

1000

25000

32000

32000

35000

vertical travel of vertical tool post(mm)

650

650

800

800

1200

horizontal travel of vertical post(mm)

570

700

915

1200

1400

G.W(tons)

7

8

12.4

17

23

Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500

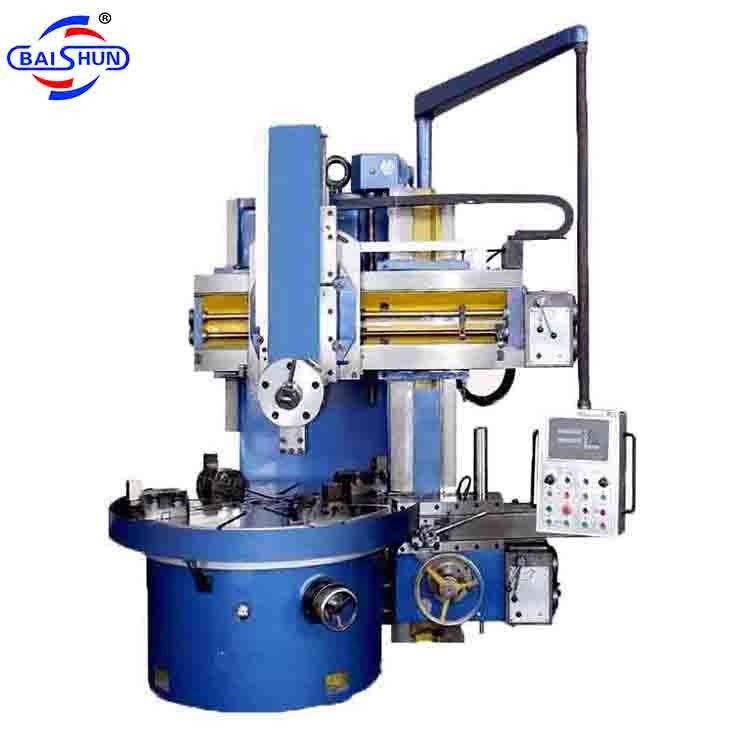

Machine picture:
