CK5117 CNC High Precision Vertical Lathe Machine for Metal Turning Auto Parts

Name: CK5117 CNC High Precision Vertical Lathe Machine for Metal Turning Auto Parts
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: CK5117
Price: 96,300.00 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5117

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Metal Turning CNC Vertical Lathe Machine, High Precision CNC Vertical Lathe Machine, Auto Parts CNC Vertical Lathe Machine


Product Name:	Vertical Lathe Machine For Metal Turning Auto Parts	Machine Type:	CK5117
Max. Turning Diameter(mm):	1700	Max. Height Of Workpiece(mm):	1200
Worktable Size(mm):	1400	Max.weight Of Workpiece:	5tons
No. Of Spindles:	Single	Voltage:	380V
Key Words:	Vertical Turning Lathe	Function:	Metal Turning

Product Name:	Vertical Lathe Machine For Metal Turning Auto Parts
Machine Type:	CK5117
Max. Turning Diameter(mm):	1700
Max. Height Of Workpiece(mm):	1200
Worktable Size(mm):	1400
Max.weight Of Workpiece:	5tons
No. Of Spindles:	Single
Voltage:	380V
Key Words:	Vertical Turning Lathe
Function:	Metal Turning

CK5117 CNC High Precision Vertical Lathe Machine for Metal Turning Auto Parts

Our hot selling CNC Vertical Turning Lathe is perfect for processing ferrous metals, nonferrous metals, and some non-metallic materials. It can handle tasks such as turning end faces, inner and outer cylindrical surfaces, inner and outer circular conical surfaces, as well as hole drilling, expanding, and reaming. The main transmission is driven by an AC servo motor, and the machine offers hydraulic gear shifting and stepless speed regulation with two gears. The worktable is equipped with a manual 4-jaw single movement chuck for easy operation.

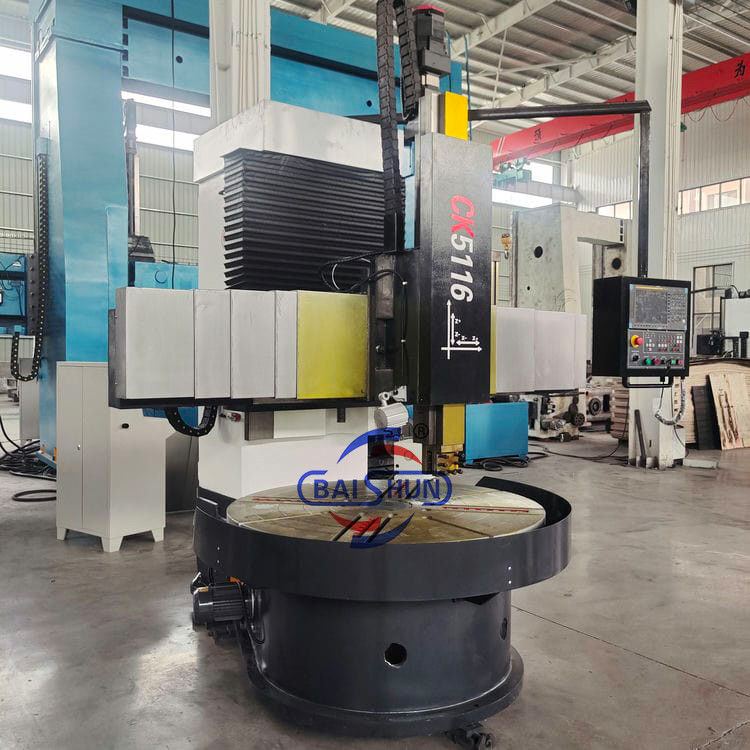

CK5117 CNC High Precision Vertical Lathe Machine for Metal Turning Auto Parts 0

Main Features:

1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter is 1600mm to 2600mm of single column vertical lathe, For CK5116 type, it is designed with the table diameter of 1400mm, and the standard maximum machining height is 1200mm.

2. The transmission device is a four-speed sleepless transmission, which is convenient, sensitive and reliable.

3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.

4. The machine is suitable for high speed steel tools and carbide cutting tool processing of non-ferrous metal, black metal and nonmetal materials. On the machine can complete the following processes:Turning the inner and outer cylindrical surface of the plane; all kinds of hook face , inner and outer cone face, thread, cutting slot and cutting.

Machine parameter

Model	CK518	CK5112Q	CK5112A	CK5116Q	CK5120A	CK5126A
Max. turning diameter of vertical tool rest (mm)	800	1200	1200	1600	2000	2600
Working table diameter (mm)	700	1000	1000	1400	1800	2200
Max. height of work-piece (mm)	800	1000	1000	1200	1250	1400
Max. weight of work-piece (kg)	1500	1500	3200	3200	8000	8000
Range of worktable rotation speed (rpm)	30-260	20-180	6.3-200	15-160	3.2-100	2.2-70
Feeding series	Stepless	Stepless	Stepless	Stepless	Stepless	Stepless
Range of tool rest feed (mm/min)	0.25-90	0.25-90	0.8-86	0.25-90	0.8-86	0.8-86
Cross beam travel (mm)	500	1000	650	1200	890	1090
Horizontal travel of tool rest (mm)	500	700	700	900	1115	1400
Vertical travel of tool rest (mm)	450	500	650	750	800	800
Size of section of cutter bar (mm)	30*40	30*40	30*40	30*40	30*40	30*40
Main motor power (kw)	11	15	22	15	30	30

Detail Machine Photo:

CK5117 CNC High Precision Vertical Lathe Machine for Metal Turning Auto Parts 1
