Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading
Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading
Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading
Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading
Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading
Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading

Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: CE,ISO

Model Number: C61200

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: To be negotiated.

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 50 working days

Payment Terms: T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

6T CNC Lathe

,

1400x12000mm CNC Lathe

,

12m CNC Lathe

Product Name:
Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading
Type:
C61200
Swing Diameter Over Carriage:
2000mm
Swing Diameter Over Bed:
1600mm
Max. Weight Of Workpiece:
32ton
Main Motor Power:
75KW
Guide Rail Width:
1600mm
Function:
Metal Turning
Product Name:
Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading
Type:
C61200
Swing Diameter Over Carriage:
2000mm
Swing Diameter Over Bed:
1600mm
Max. Weight Of Workpiece:
32ton
Main Motor Power:
75KW
Guide Rail Width:
1600mm
Function:
Metal Turning
Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading

Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading

This series conventional heavy-duty horizontal lathe, it suitable for high speed steel hard alloy cutting tool, various materials shaft parts, cylindrical and disk-shaped parts processing. To achieve turning cylindrical, face grooving, cutting slot, cutting off, boring and turning inside and outside the cone and other processes

Large Heavy Duty CNC Lathe With 1400x12000mm Capacity And 6T 12m Loading 0

Features:

Flat bed structure;High rigidity;Heavy load capacity and good reliability;
The rotary built-in center in the tailstock features with heavy load and is easy to operate;
Rapid movement function;
The model of lathe is specially suitable for the following industries:Paper making, textile, rubber and shipbuilding etc..
The lathe is suitable to machine large sized parts, such as disc type, rubber roller;It can also cut tread, drill hole and bore hole.



The carriage moves along the bed and holds the cutting tool, which can be adjusted vertically and horizontally. The cross slide moves perpendicular to the carriage and provides precision movement for the cutting tool. The feed rod is responsible for moving the carriage and cross slide, as well as controlling the depth of the cut.
Available in different sizes and capacities, horizontal lathe machine tools can be used for a variety of machining applications, ranging from small hobby projects to heavy-duty industrial work.

C61200 Series Lathe Machine( 32 tons load capacity):
Swing over bed: 2000mm;
Swing over cross slide: 1600mm;
Processing length: it's up to customer's requirements;
Bed width: 1600mm ( 3 guideways);

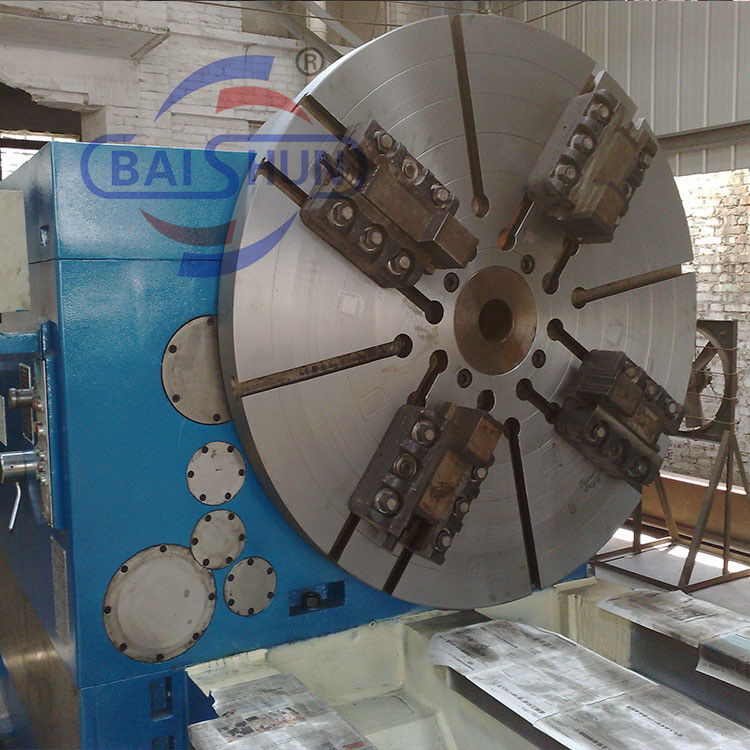

Diameter of chuck: 2000mm
Load capacity: 32 tons;
Main motor power: 75kw.



Following is 32 tons load capacity heavy duty lathe machine

Model   C61160 C61200 C61250 C61315
Max.swing over bed mm 1600 2000 2500 3150
Max.swing over carriage/tool post mm 1200 1600 2000 2600
Width of bed (Three lathe beds) mm 1600 1600 1600/2100 2100
Max.length of workpiece m 5-20 5-20 5-20 5-20
Max.weight of workpiece ton 32 32 32/75 75
Max.torque of face plate kg.m 8000 8000 8000 8000
Max.cutting capacity tool post kg.m 8000 8000 8000 8000
Section dimension of tool shank mm 70x70 70x70 70x70 70x70
Headstock
Progression of spindle speed   Stepless Stepless Stepless Stepless
Range of spindle speed rpm 1~200
0.8-160
0.025-125		 1~200
0.8-160
0.025-125		 1~200
0.8-160
0.025-125		 1~200
0.8-160
0.025-125
Diameter of chuck mm 1600 2000 2500 3150
Knife rest
Step. No of feed step 18 18 18 18
Range of longitudinal feed mm/r 0.125-48 0.125-48 0.125-48 0.125-48
Range of cross feed mm/r 0.063-24 0.063-24 0.063-24 0.063-24
Feed range of tool slide compound mm/r 0.063-24 0.063-24 0.063-24 0.063-24
Longitudinal rapid traverse speed mm/min 3000 3000 3000 3000
Cross rapid traverse speed mm/min 1500 1500 1500 1500
of cross slide mm 670 800 1000 1250
Metric thread (thread pitch) mm 2-40 2-40 2-40 2-40
Inch thread mm 1-14 1-14 1-14 1-14
Module thread mm 1.5-20 1.5-20 1.5-20 1.5-20
Tailstock
Traversing capacity of sleeve mm 200 200 300 300
Rapid traverse of tailstock mm
/min		 3000 3000 3000 3000
Rapid traverse of sleeve mm/min 664 664 664 664
Power
Main motor power kw 75 75 90 118
FAQ

1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are 100% new and not used, only made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard. Some machines will

4. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable.

5. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)

6. How is the warranty?
A: 12 months after shipment date

7. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
