Single Column Vertical Rotation Lathe Vertical Turret Lathe Machine C5116

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5116A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 45 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Sets per Month

Get Best Price
Highlight:

Single Column Vertical Turret Lathe Machine

,

Vertical Rotation Lathe Machine

,

C5116 Vertical Turret Lathe Machine

Name:
Vertical Turret Lathe Machine C5116
Machining Capacity:
Heavy Duty
Max. Turned Length (mm):
1600mm
Weight (KG):
1200mm
Max.load Capacity:
5tons
Type:
Vertical Type
Automatic:
Manual Type
Spindle Motor Power(kW):
30kw
Voltage:
380V
Warranty:
1 Year
Name:
Vertical Turret Lathe Machine C5116
Machining Capacity:
Heavy Duty
Max. Turned Length (mm):
1600mm
Weight (KG):
1200mm
Max.load Capacity:
5tons
Type:
Vertical Type
Automatic:
Manual Type
Spindle Motor Power(kW):
30kw
Voltage:
380V
Warranty:
1 Year
Single Column Vertical Rotation Lathe Vertical Turret Lathe Machine C5116

Single Column Vertical Rotation Lathe Vertical Turret Lathe Machine C5116



Description:

The Manual type vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.

Compare with conventional lathes, which are typically horizontal and require the workpiece to be mounted on a rotating chuck, a vertical lathe has a vertical spindle that holds and rotates the workpiece. The cutting tool is mounted on a tool turret that moves in multiple axes, allowing for precise and complex machining operations.

The vertical lathes are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio because the vertical orientation minimizes the effects of gravity on the workpiece, reducing the risk of deflection and distortion.

Additionally, vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The Manual type vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, making them an essential component of modern manufacturing processes.



Specification:

Single column

Model

C518

C5112

C5116

C5120

C5125

Max.turning dia.(mm)

800

1200

1600

2000

2500

Max.cutting height(mm)

800

1000

1000

1250

1250

Max.loading weight(tons)

1.2

3.2

5

8

10

Worktable diameter(mm)

720

1000

1400

1800

2250

Worktable speed range(r/min)

30-260

6.3-200

5-160

3.2-100

2-63

Max worktable torque(n.m)

1000

25000

32000

32000

35000

vertical travel of vertical tool post(mm)

650

650

800

800

1200

horizontal travel of vertical post(mm)

570

700

915

1200

1400

G.W(tons)

7

8

12.4

17

23

Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500



Double column

Model C5225 C5232 C5235 C5240 C5250 C5260
Work table diameter

2250 mm

2830mm 2830mm 3150mm 4500mm 5200mm
Max. turning diameter 2500mm 3200mm 3200mm 4000mm 5000mm 6000mm
Max. height of work piece(mm) 1600-2800 1600-3000 1600-3000 1600-3200 2500-4200 2500-4500
Max. weight of work piece 10/20 10/20/32 10/20/32 10/20/32 32/50 32/50
Max. torque of worktable 63000 N•m 63000 N•m 63000 N•m 63000 N•m 105000N•m 105000N•m
Rest feeding range 0.25-90 mm/min 0.25-90 mm/min 0.25-90 mm/min 0.25-90 mm/min 0.1-1000
mm/min
0.1-000 mm/min
Beam travel 1250mm 1250mm 1250mm 1250mm 2150mm 2150mm
Horizontal Travel of tool rest 1400mm 1750mm 1900mm 2150mm 2700mm 3300mm
Vertical Travel of tool rest

1000/1250/

1400/1600

1000/1250/

1400/1600

1000/1250/

1400/1600

1000/1250/

1400/1600

1400/1600 1400/1600
Beam moving speed(mm/min) 350 350 350 350 380 380
Max. Swing angle of tool post ±30° ±30° ±30° ±30° ±30° ±30°
Turret dimension(WxHmm) 40x50 40x50 40x50 40x50 60x65 60x65
Main motor power 55kw 55kw 55kw 55/75kw 75kw 75kw





Machine picture:

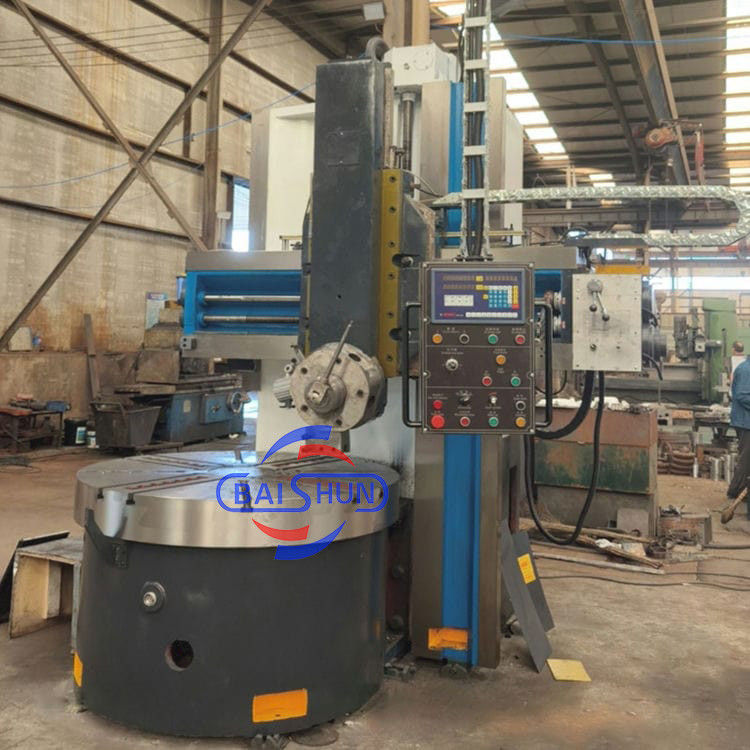

Single Column Vertical Rotation Lathe Vertical Turret Lathe Machine C5116 0
