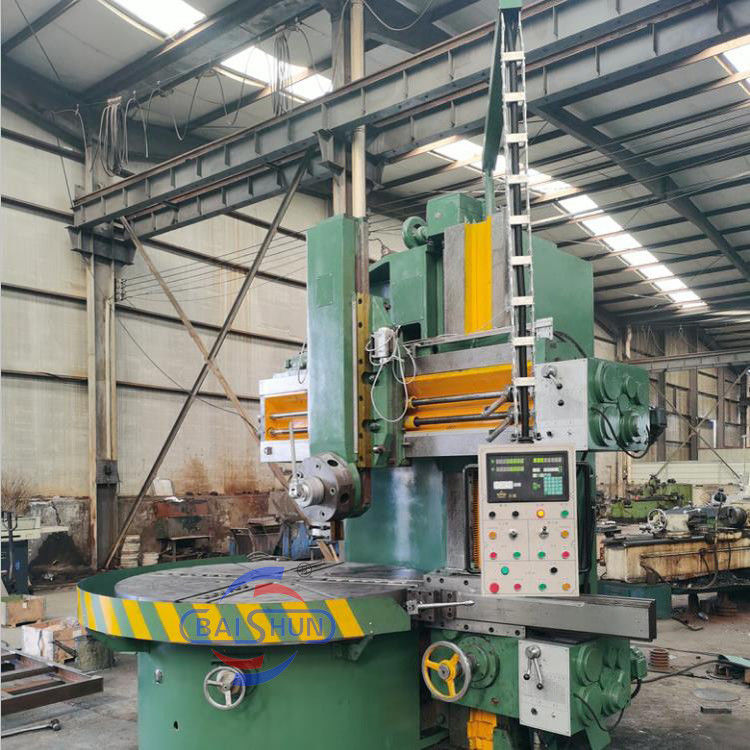

Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning
Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning
Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning
Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning
Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning
Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning
Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning

Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5120

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 40 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Conventional Vertical Lathe Turning

,

Single Column Vertical Lathe Turning

,

Heavy Duty Vertical Lathe Turning

Name:
Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
2000 Mm
Weight (KG):
1400mm
Max.load Capacity:
8tons
Type:
Vertical Type
Automatic:
Manual Type
Spindle Motor Power(kW):
30
Voltage:
380V
Warranty:
1 Year
Name:
Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
2000 Mm
Weight (KG):
1400mm
Max.load Capacity:
8tons
Type:
Vertical Type
Automatic:
Manual Type
Spindle Motor Power(kW):
30
Voltage:
380V
Warranty:
1 Year
Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning

Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning



Description:



The vertical lathes are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio because the vertical orientation minimizes the effects of gravity on the workpiece, reducing the risk of deflection and distortion.

The vertical lathe is ideally suited for the mechanical processing sector, capable of handling tasks such as internal and external cylinder machining, conical surface work, and face cutting.



This machine series is versatile, catering to various industrial parts manufacturing needs. It facilitates operations like cylindrical turning, boring, tapering, surfacing, and grooving, both in roughing and finishing stages.



Equipped with a high-precision thrust ball bearing table, it ensures smooth operation. The machine also incorporates a rolling guideway (or slipping guideway), enhancing its performance. The spindle radial utilizes an NN30 type double-row cylindrical roller bearing, boosting rotational accuracy and load capacity. A pentagonal turret is fitted on the rail head, while a square turret adorns the side head, both featuring hydraulic balancing. Horizontal and vertical movements are driven by rolling lead screw bearings, ensuring precise control.



Specification:

Model

C518

C5112

C5116

C5120

C5125

Max.turning dia.(mm)

800

1200

1600

2000

2500

Max.cutting height(mm)

800

1000

1000

1250

1250

Max.loading weight(tons)

1.2

3.2

5

8

10

Worktable diameter(mm)

720

1000

1400

1800

2250

Worktable speed range(r/min)

30-260

6.3-200

5-160

3.2-100

2-63

Max worktable torque(n.m)

1000

25000

32000

32000

35000

vertical travel of vertical tool post(mm)

650

650

800

800

1200

horizontal travel of vertical post(mm)

570

700

915

1200

1400

G.W(tons)

7

8

12.4

17

23

Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500

Vertical Lathe Machine Main Structure:

High quality castings and domestic dafang matching castings (HT300), artificial heat aging treatment. Castings do not do weight reduction treatment, the machine weight and standard weight.

Standard equipped with 2-axis digital display.

The beam guide and ram guide are treated by super audio quenching (HRC≥50), and the sliding surface of guide is treated with plastic (including inclined iron surface and pressing plate surface), so that the product precision can be maintained for a long time and the overhaul cycle can be extended for more than 10 years at least.



The electric adopts Japan omron PLC control, the electrical parts adopt high quality components, standard (CE standard) wiring process, the whole electric machine has high reliability.



Machine picture:



Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning 0

Company profile:



Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning 1



Packing&delivery

Conventional Vertical Lathe Single Column Vtl Heavy Duty Vertical Lathe Turning 2

Our Services

Our Services

We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.



Our advantage:

1: With CE, ISO certification.

2: Full production tracking.

3: Professional engineers can guarantee the highest quality.

4: More suppliers as alternatives, guarantee your lowest and competitive price.

5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.

6: OEM production is available, to meet customer needs

7. Low MOQ (1 unit) is available.

8. 24 hours technical support.

Contact

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel:+86 18003851898
