Manufacture Heavy Duty C5116 Vtl High-Precision Universal Cnc Single Column Vtl
Manufacture Heavy Duty C5116 Vtl Universal Cnc Single Column Vertical Lathe Machine High-Precision Cnc Single Column Vtl
This manual DRO display vertical lathe machine is designed with a vertical spindle that holds and rotates the workpiece. The cutting tool is mounted on a tool turret that moves in multiple axes, allowing for precise and complex machining operations.
Generally it can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.
Equipped with a high-precision thrust ball bearing table, it ensures smooth operation. The machine also incorporates a rolling guideway (or slipping guideway), enhancing its performance. The spindle radial utilizes an NN30 type double-row cylindrical roller bearing, boosting rotational accuracy and load capacity. A pentagonal turret is fitted on the rail head, while a square turret adorns the side head, both featuring hydraulic balancing. Horizontal and vertical movements are driven by rolling lead screw bearings, ensuring precise control.
Electrically, the machine is governed by a PC system, promising high reliability. Its aesthetically pleasing design not only pleases the eye but also eases maintenance and servicing. Special requirements can be met with additional features such as side head attachments, digital controls, and taper turning capabilities.
Features:
1.This versatile machine is suitable for mechanical processing across various industries.
2.The main transmission is driven by an AC motor, with a main drive speed that can be changed in 16 steps through solenoid valve control.
3.All gears in the gearbox undergo high-frequency quenching for enhanced durability.
4. The machine boasts an attractive design, ensuring user comfort and convenient operation and maintenance.
5. Customization options include a digital display(DRO) device square ram upon customer request, providing additional flexibility to meet specific needs.
6. It mainly can be used for rough and finish machining of inside and outside cylinders, cone surfaces, end faces, grooving, cutting, and internal hole boring.
Specification:
C51 series
| Model |
C518 |
C5112 |
C5116 |
C5120 |
C5125 |
| Max.turning dia.(mm) |
800 |
1200 |
1600 |
2000 |
2500 |
| Max.cutting height(mm) |
800 |
1000 |
1000 |
1250 |
1250 |
| Max.loading weight(tons) |
1.2 |
3.2 |
5 |
8 |
10 |
| Worktable diameter(mm) |
720 |
1000 |
1400 |
1800 |
2250 |
| Worktable speed range(r/min) |
30-260 |
6.3-200 |
5-160 |
3.2-100 |
2-63 |
| Max worktable torque(n.m) |
1000 |
25000 |
32000 |
32000 |
35000 |
| vertical travel of vertical tool post(mm) |
650 |
650 |
800 |
800 |
1200 |
| horizontal travel of vertical post(mm) |
570 |
700 |
915 |
1200 |
1400 |
| G.W(tons) |
5 |
8 |
12.4 |
17 |
23 |
| Dimension(L*W*Hmm) |
2080*2621
*3515
|
2360*2280
*2800
|
2830*2670
*3010
|
3200*2800
*3250
|
3300*4000
*3500
|

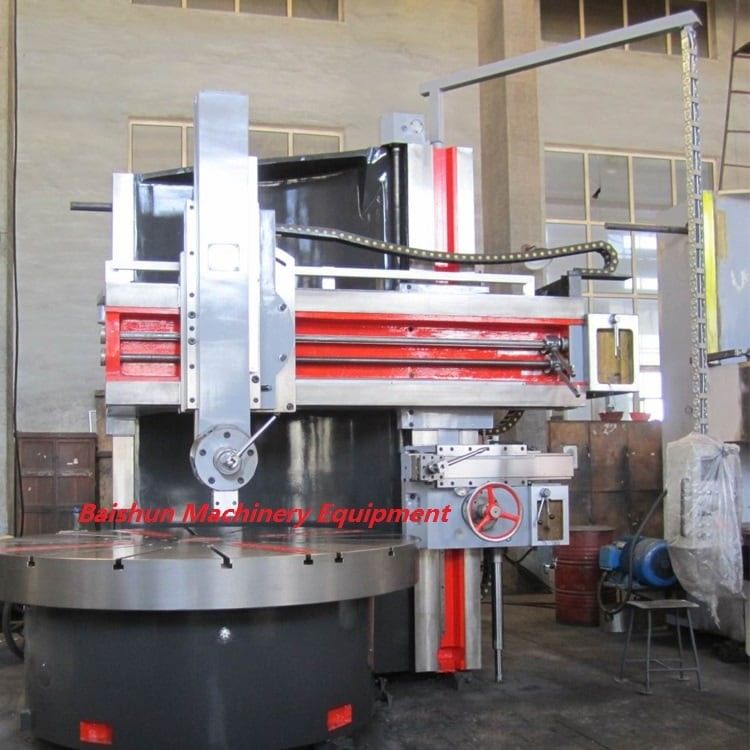

Machine picture:
