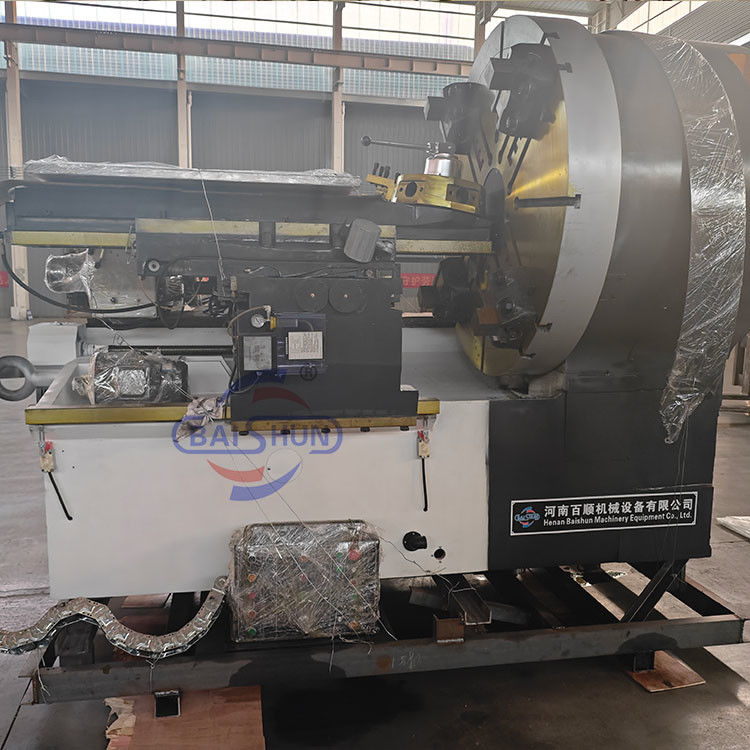

Professional Industry Vertical Lathe Machine Case Max Egypt Marketing High Efficient

Name: Professional Industry Vertical Lathe Machine Case Max Egypt Marketing High Efficient
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: C5116
Price: 96,300.00 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: Provided

Model Number: C5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard package or negotiation with customer

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                High Efficient Vertical Lathe Machine, Industry Vertical Lathe Machine, Case Max Vertical Lathe Machine


Product Name:	Professional Industry Vertical Lathe Machine Case Max Egypt Marketing High Efficient	Max. Height Of Workpiece (mm):	1200
Machining Capacity:	Medium Duty	Max. Turned Length (mm):	1600 Mm
Type:	VERTICAL	Dimension(LWH):	28302670 3010mm
Weight (KG):	12400 KG	Model:	C5116
Work Table Dia.:	1400mm	Max.weight Of Workpiece:	5000kg

Product Name:	Professional Industry Vertical Lathe Machine Case Max Egypt Marketing High Efficient
Max. Height Of Workpiece (mm):	1200
Machining Capacity:	Medium Duty
Max. Turned Length (mm):	1600 Mm
Type:	VERTICAL
Dimension(LWH):	28302670 3010mm
Weight (KG):	12400 KG
Model:	C5116
Work Table Dia.:	1400mm
Max.weight Of Workpiece:	5000kg

Professional Industry Vertical Lathe Machine Case Max Egypt Marketing High Efficient

Professional Industry Vertical Lathe Machine Case Max Egypt Marketing High Efficient

This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring. Tapering and surfacing as well as grooving can be carried out rough and finishing.
The table adopts thrust ball bearing with high accuracy for rolling guideway C5116 machine is also adopted slipping guideway. Spindle radial is performed NN30 type double row cylindrical rolling bearing. So it can improve the rotary precision and load capacity of the table.

The Single-column model C5116 is a super rigid machine with big machining capacities, stable and rigid structure and high machining efficiency. The machine is equipped with one vertical tool head and can be equipped with high precision digital readout system (DRO).

AC inverter motor is used to achieve speed change.

Gears are made of 40 Cr steel and precision ground for high precision and low machine noise. The machines are designed and built to meet modern machining requirements of high speed cutting tools and carbide cutters on work pieces of ferrous, non-ferrous, composite and other materials.

Features:

1.This versatile machine is suitable for mechanical processing across various industries.

2. The main transmission is driven by an AC motor, with a main drive speed that can be changed in 16 steps through solenoid valve control.

3.All gears in the gearbox undergo high-frequency quenching for enhanced durability.

4. The worktable features a rolling guideway design, allowing for large loading capacity and high turning precision.

5. The vertical tool-post is equipped with a five-station tool-post and utilizes high-precision rat-gear disk positioning.

6.The tool-posts employ hydraulic balancing, with horizontal and vertical feeds using sliding screw drives.

Machine specification

Model	C518	C5112	C5116	C5120	C5125
Max.turning dia.(mm)	800	1200	1600	2000	2500
Max.cutting height(mm)	800	1000	1000	1250	1250
Max.loading weight(tons)	1.2	3.2	5	8	10
Worktable diameter(mm)	720	1000	1400	1800	2250
Worktable speed range(r/min)	30-260	6.3-200	5-160	3.2-100	2-63
Max worktable torque(n.m)	1000	25000	32000	32000	35000
vertical travel of vertical tool post(mm)	650	650	800	800	1200
horizontal travel of vertical post(mm)	570	700	915	1200	1400
G.W(tons)	7	8	12.4	17	23
Dimension(LWHmm)	20802621 3515	23602280 2800	28302670 3010	32002800 3250	33004000 3500
