Metal Lathe Vertical Lathe
, Big Vertical Lathe
, Accurate Vertical Lathe
Metal Lathe Big Conventional Lathe Machine Tools Accurate 3-Jaw Chuck Vertical Lathe
China Metal Lathe Big Conventional Lathe Machine Tools High Quality Accurate 3-Jaw Chuck Vertical Lathe For Sale
Description:
The digital control vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.
Compare with conventional lathes, which are typically horizontal and require the workpiece to be mounted on a rotating chuck, a manual vertical lathe has a vertical spindle that holds and rotates the workpiece. The cutting tool is mounted on a tool turret that moves in multiple axes, allowing for precise and complex machining operations.
Single pindle manual vertical lathes are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio because the vertical orientation minimizes the effects of gravity on the workpiece, reducing the risk of deflection and distortion.
Additionally, the vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.
Overall, the single spindle manual type metal working digital control vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, making them an essential component of modern manufacturing processes.
Specification:
| Model |
C518 |
C5112 |
C5116 |
C5120 |
C5125 |
| Max.turning dia.(mm) |
800 |
1200 |
1600 |
2000 |
2500 |
| Max.cutting height(mm) |
800 |
1000 |
1000 |
1250 |
1250 |
| Max.loading weight(tons) |
1.2 |
3.2 |
5 |
8 |
10 |
| Worktable diameter(mm) |
720 |
1000 |
1400 |
1800 |
2250 |
| Worktable speed range(r/min) |
30-260 |
6.3-200 |
5-160 |
3.2-100 |
2-63 |
| Max worktable torque(n.m) |
1000 |
25000 |
32000 |
32000 |
35000 |
| vertical travel of vertical tool post(mm) |
650 |
650 |
800 |
800 |
1200 |
| horizontal travel of vertical post(mm) |
570 |
700 |
915 |
1200 |
1400 |
| G.W(tons) |
5 |
8 |
12.4 |
17 |
23 |
| Dimension(L*W*Hmm) |
2080*2621
*3515
|
2360*2280
*2800
|
2830*2670
*3010
|
3200*2800
*3250
|
3300*4000
*3500
|
Premium castings, along with domestic Dafang-compatible HT300 grade components, undergo artificial heat aging to ensure durability. These castings are not subjected to weight reduction procedures, thereby maintaining the machine's standard heft and robustness.
As a standard feature, the system includes a dual-axis digital readout for enhanced precision control.
Both the beam guide and ram guide undergo advanced super audio quenching (achieving HRC≥50 hardness), while their sliding surfaces receive plastic treatment (encompassing inclined iron and pressing plate surfaces). This meticulous finishing preserves product accuracy over extended periods and extends the maintenance interval to a minimum of 10 years.
Electrically, the system is managed by a high-performance Japanese Omron PLC, complemented by top-tier electrical components. Adherence to CE standards in wiring practices ensures the entire electrical assembly boasts exceptional reliability.

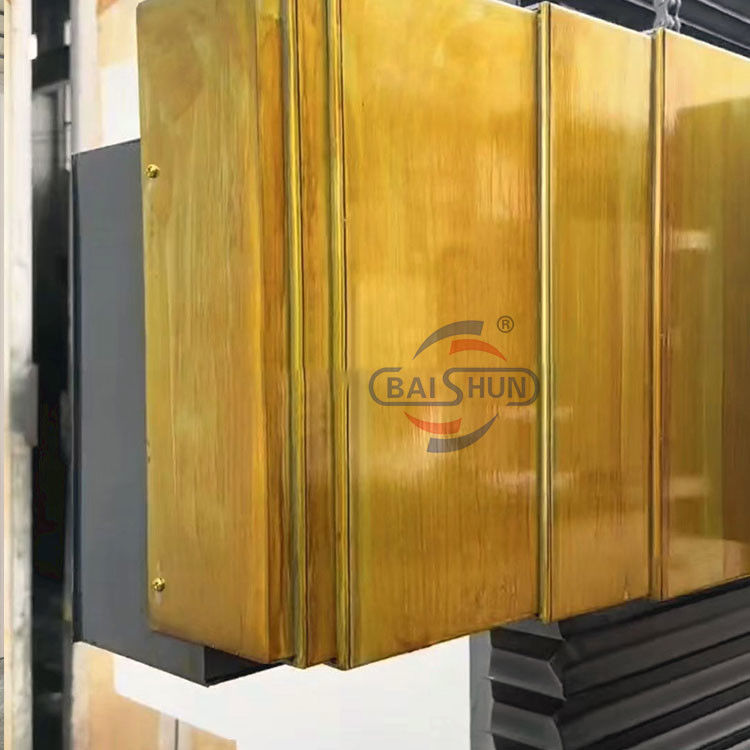

Machine picture:
