High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal
High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal
High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal
High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal
High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal
High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal
High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal

High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard package or negotiation with customer

Delivery Time: 45 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

New Conventional Vertical Lathe Machine

,

High Accuracy Vertical Lathe Machine

,

1600Mm Vertical Lathe Machine

Product Name:
High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal
Model:
C5116
Machining Capacity:
Medium Duty
Brand:
Baishun Machinery
Max. Turned Length (mm):
1600 Mm
Type:
VERTICAL
Work Table Dia.:
1400mm
Usage:
Metal Working
Package:
Export Standard
Delivery:
Negotiation
Product Name:
High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal
Model:
C5116
Machining Capacity:
Medium Duty
Brand:
Baishun Machinery
Max. Turned Length (mm):
1600 Mm
Type:
VERTICAL
Work Table Dia.:
1400mm
Usage:
Metal Working
Package:
Export Standard
Delivery:
Negotiation
High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal

High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal



Description:

This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.


The vertical lathe is ideally suited for the mechanical processing sector, capable of handling tasks such as internal and external cylinder machining, conical surface work, and face cutting.



This machine series is versatile, catering to various industrial parts manufacturing needs. It facilitates operations like cylindrical turning, boring, tapering, surfacing, and grooving, both in roughing and finishing stages.





High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal 0



Specification:

Model C518 C5112 C5116 C5120 C5125
Max.turning dia.(mm) 800 1200 1600 2000 2500
Max.cutting height(mm) 800 1000 1000 1250 1250
Max.loading weight(tons) 1.2 3.2 5 8 10
Worktable diameter(mm) 720 1000 1400 1800 2250
Worktable speed range(r/min) 30-260 6.3-200 5-160 3.2-100 2-63
Max worktable torque(n.m) 1000 25000 32000 32000 35000
vertical travel of vertical tool post(mm) 650 650 800 800 1200
horizontal travel of vertical post(mm) 570 700 915 1200 1400
G.W(tons) 5 8 12.4 17 23
Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500



The lathe is suitable for high-speed steel, hard alloy and ceramic cutting tool, machining inner and outer cylindrical surface, inner and outer conical surface, groove and plane of ferrous metals, nonferrous metals and some non-metallic parts. It can meet different quantity production requirements with high efficiency, stable and reliable precision.

The Single-column model CK5112 are super rigid machines with big machining capacities, stable and rigid structure and high machining efficiency. The machine is equipped with one vertical tool head and can be equipped with high precision digital readout system (DRO). AC inverter motor is used to achieve speed change. Gears are made of 40 Cr steel and precision ground for high precision and low machine noise. The machines are designed and built to meet modern machining requirements of high speed cutting tools and carbide cutters on work pieces of ferrous, non-ferrous, composite and other materials.

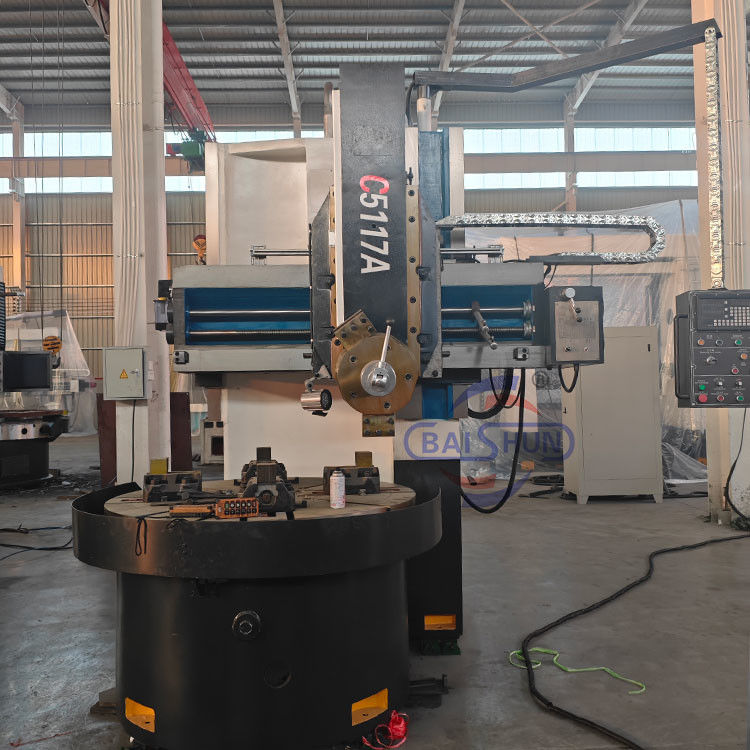

Machine picture:





High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal 1

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel:+86 18003851898

Contact

High Accuracy Single Turret Vertical Lathe Machine 1600Mm New Conventional Metal 2
