Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic
Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic
Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic
Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic
Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic
Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic
Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic

Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard package or negotiation with customer

Delivery Time: 45 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

C51 Series Automatic Lathe Machine

,

Manual Lathe Machine

,

Low Cost Automatic Lathe Machine

Product Name:
Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic
Model:
C5116
Machining Capacity:
Medium Duty
Brand:
Baishun Machinery
Max. Turned Length (mm):
1600 Mm
Type:
VERTICAL
Work Table Dia.:
1400mm
Usage:
Metal Working
Package:
Export Standard
Delivery:
Negotiation
Product Name:
Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic
Model:
C5116
Machining Capacity:
Medium Duty
Brand:
Baishun Machinery
Max. Turned Length (mm):
1600 Mm
Type:
VERTICAL
Work Table Dia.:
1400mm
Usage:
Metal Working
Package:
Export Standard
Delivery:
Negotiation
Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic

Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic



Premium castings, along with domestic Dafang-compatible HT300 grade components, undergo artificial heat aging to ensure durability. These castings are not subjected to weight reduction procedures, thereby maintaining the machine's standard heft and robustness.

As a standard feature, the system includes a dual-axis digital readout for enhanced precision control.

Both the beam guide and ram guide undergo advanced super audio quenching (achieving HRC≥50 hardness), while their sliding surfaces receive plastic treatment (encompassing inclined iron and pressing plate surfaces). This meticulous finishing preserves product accuracy over extended periods and extends the maintenance interval to a minimum of 10 years.

Electrically, the system is managed by a high-performance Japanese Omron PLC, complemented by top-tier electrical components. Adherence to CE standards in wiring practices ensures the entire electrical assembly boasts exceptional reliability.





Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic 0



Specification:

Model C518 C5112 C5116 C5120 C5125
Max.turning dia.(mm) 800 1200 1600 2000 2500
Max.cutting height(mm) 800 1000 1000 1250 1250
Max.loading weight(tons) 1.2 3.2 5 8 10
Worktable diameter(mm) 720 1000 1400 1800 2250
Worktable speed range(r/min) 30-260 6.3-200 5-160 3.2-100 2-63
Max worktable torque(n.m) 1000 25000 32000 32000 35000
vertical travel of vertical tool post(mm) 650 650 800 800 1200
horizontal travel of vertical post(mm) 570 700 915 1200 1400
G.W(tons) 5 8 12.4 17 23
Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500



The lathe is suitable for high-speed steel, hard alloy and ceramic cutting tool, machining inner and outer cylindrical surface, inner and outer conical surface, groove and plane of ferrous metals, nonferrous metals and some non-metallic parts. It can meet different quantity production requirements with high efficiency, stable and reliable precision.

Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc.

This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.

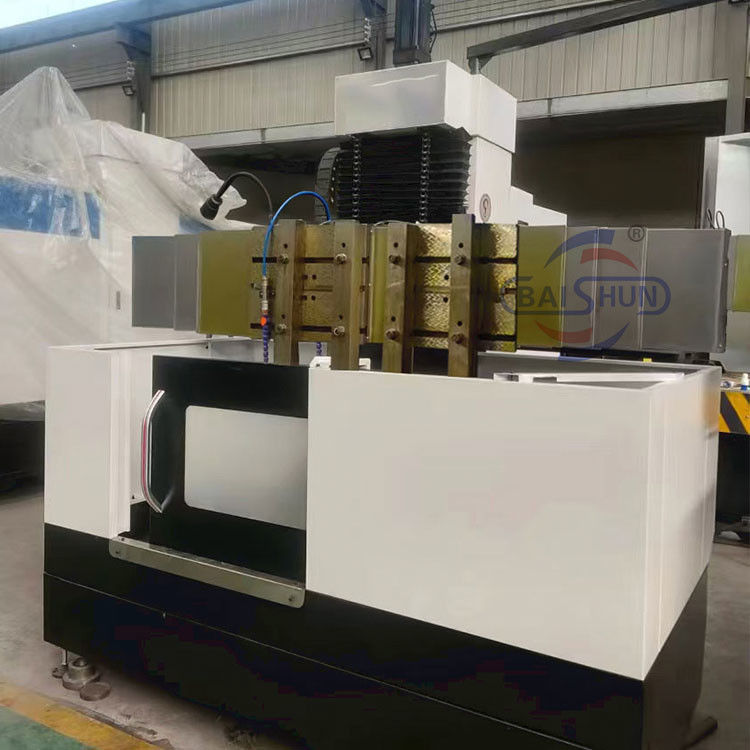

Machine picture:





Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic 1

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel:+86 18003851898

Contact

Low Cost C51 Series Single Turret Automatic Lathe Manual Lathe Machine Automatic 2
