Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine
Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine
Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine
Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine
Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine
Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine

Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ISO

Model Number: C5240

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 70 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 40 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Large Cast Iron Metal Cutting Machine

,

Metal Cutting Vertical Manual Lathe Machine

Product Name:
Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine
Type:
VERTICAL
Voltage:
380V/50HZ
Dimension(L*W*H):
6680X4600X4952mm
Warranty:
1 Year
CNC Or Not:
Not
Power:
55/75KW
Max. Turning Diameter:
4000mm
Product Name:
Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine
Type:
VERTICAL
Voltage:
380V/50HZ
Dimension(L*W*H):
6680X4600X4952mm
Warranty:
1 Year
CNC Or Not:
Not
Power:
55/75KW
Max. Turning Diameter:
4000mm
Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine

C5240 Large Vertical Manual Lathe Machine Price Directly Supply Cast Iron Metal Cutting Machine



Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine 0



Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc.


This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.



Suitable for high-speed steel and carbide cutting tools, suitable for machining of various industries of non-ferrous metals and non-ferrous metal parts of the cylindrical surface, conical surface, end face, grooving and other rough and finishing.

Products Details



Name: Worktable

Worktable spindle has NN3000K series precision bearing, and its inner ring has taper hole, then through regulating the radial clearance of bearing, the radial accuracy of the spindle could be guaranteed. Spindle guideway adopts the high precision thrust ball bearing to ensure the face run out accuracy of the spindle. Worktable is manual 4-jaw chuck.
Main transmission is driven by the spindle AC servo motor, automatic gear change, and in this way, spindle could get stepless speed regulation among two ranges.





Main specification

Item
C5240
Work table diameter
3150 mm
Max. turning diameter of work piece
4000 mm
Max. height of work piece
1600-3200mm
Max. weight of work piece
10/20/32 T

Max. cutting force of tool rest
35000 N (right turret)
30000 N (left turret)
Max. torque of worktable
63000 N•m
Speed changing range (high/low)
2.5-40 rpm
Tool rest feeding range(stepless)
0.25-90 mm/min
Beam travel
1250 mm

Travel of tool rest
Horizontal 2150 mm
Vertical 1000/1250/1400/1600 mm
Beam moving speed
350mm/min
Fast moving speed of tool post
1550mm/min
Max. Swing angle of tool post
±30°
Turret dimension(WxH)
40x50 mm
Main motor power
55/75kW (variable frequency motor)
Feeding motor power
0.75kW (variable frequency motor)
Machine weight(about)
43-65T

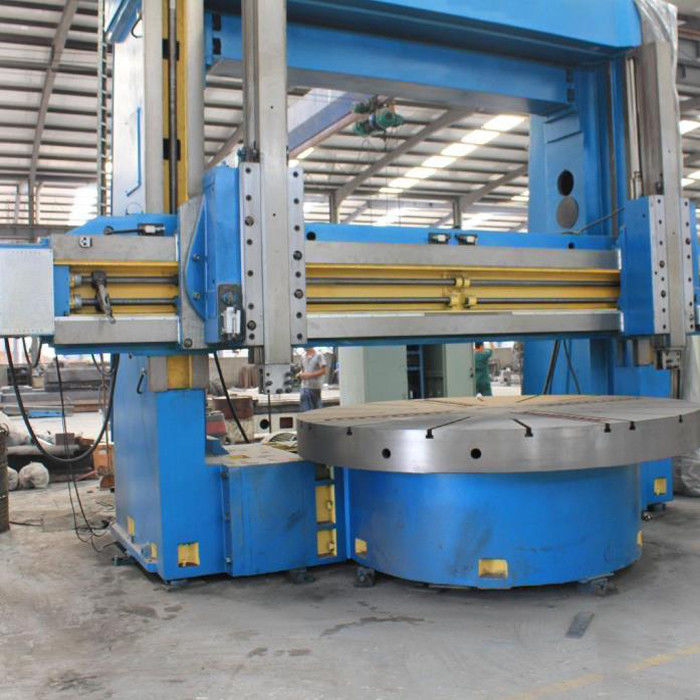

Machine Picture:

Vertical Manual Lathe Machine Price Large Cast Iron Metal Cutting Machine 1



Packaging & Shipping

 Payment terms

We usually use T/T, L/C

T/T:T/T 30% in advance, the balance be paid after inspection before the delivery

Before delivery, we will send you the pictures of finished machines and welcome you to come to our factory for inspection

Way of packing

FCL&LCL export standard in 20/40feet container

FCL:Sea-worthy package,machine are fixed in container and the spare parts are packed in wooden boxes

Shipping

MSK/MSC/APL/EMC/PIL and so on

Warranty

12 months under normal use except for wearing parts



Our Services

1. 24 Hours after sales service by E-mail or Phone.

2. 100% response rate.

3. Engineers available to service overseas.

4. OEM service is available

5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.



Contact

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel:+86 18003851898
