Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M
Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M
Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M
Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M
Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M
Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M

Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ISO

Model Number: C5232

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 70 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 30 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Double Column Vertical Turning Lathe Machine

,

1M Vertical Turning Lathe Machine

Name:
Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M
Type:
Vertical
Dimension(L*W*H):
5880X4600X4952mm
Voltage:
380V/50HZ
Warranty:
1 Year
CNC Or Not:
Not
Automatic Grade:
Manual
Power:
55KW
Name:
Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M
Type:
Vertical
Dimension(L*W*H):
5880X4600X4952mm
Voltage:
380V/50HZ
Warranty:
1 Year
CNC Or Not:
Not
Automatic Grade:
Manual
Power:
55KW

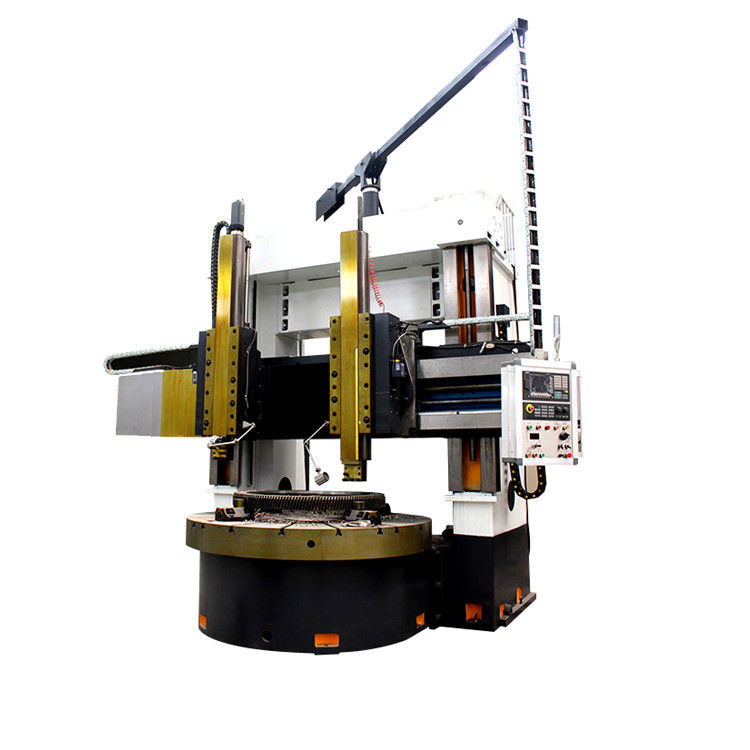

Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M

Double Column Vertical Turning Lathe Machine 2 Tool post Vertical Travel 1M

Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M 0
The heavy duty vertical lathe machine is one of my company's own developed vertical lathes, belonging to large universal metal-cutting processing equipment. The product uses advanced CAD computer-aided design techniques, in accordance with national, industry-related design and manufacture of acceptance standards.

The heavy duty vertical lathe machines specifics to large electrical motor industry, large pump valve type industries, transportation industry, as well as engineering machinery, defense industries of some large workpieces cylindrical-type parts with diameter less than 4 m, such as the motor shell, the pump valve shell, wheel hub, to conduct turning processes on end face, internal and external cylindrical surface, but also can use vertical tool carrier with spanning degrees (+/-30 degrees) for the internal and external cone turning processing needs.

The vertical lathe machine is designed for turning both inside and outside cylinders and planes, corn surfaces, and grooving. It is suitable for high-speed steel tools working on ferrous metals, nonferrous metals, and some non-metallic materials.



Main specification

Item
C5232
Work table diameter
2830 mm
Max. turning diameter of work piece
3200 mm
Max. height of work piece
1600-3000mm
Max. weight of work piece
10-32 T

Max. cutting force of tool rest
35000 N (right turret)
30000 N (left turret)
Max. torque of worktable
63000 N•m
Speed changing range (high/low)
2.5-40 rpm
Tool rest feeding range(stepless)
0.25-90 mm/min
Beam travel
1250 mm

Travel of tool rest
Horizontal 1750 mm
Vertical 1000/1250/1400/1600mm
Beam moving speed
350mm/min
Fast moving speed of tool post
1550mm/min
Max. Swing angle of tool post
±30°
Turret dimension(WxH)
40×50 mm
Main motor power
55kW (variable frequency motor)
Feeding motor power
0.75kW (variable frequency motor)
Machine weight(about)
36-50T



Worktable:
Workbench respectively for the overall casting structure,the use of high strength and low stress cast iron,grade HT250 aging treatment has sufficient rigidity, strength and stability.

Beam :

Beam of high-strength cast iron low stress, aging treatment, steady structure deformation, through its rail IF quenching, has sufficient rigidity and strength to ensure the accuracy of machine tools. Above rail unloading device with weight loss, reducing the resistance movement of the tool holder, beams and columns rail contact surface glued PTFE rail wear soft belt with a small friction coefficient, greatly extending the life of the machine. Front beam is placed upright so that beams in the column do vertical movement.

Electrical cabinet:
All electrical components are integrated in the power distribution cabinet. The electrical components are well-known in China. At the same time, our company also provides HEIDENHAIN, Siemens, and Schneide as optional components.

Hydraulic stations:
It includes a table static pressure system, a main drive system, a beam clamping system, and a vertical turret tamping hydraulic balance system. The hydraulic device has a pressure protection function, and it will close automatically if the pressure is not used properly


Machine picture:
Double Column Vertical Turning Lathe Machine 2 Tool Post Vertical Travel 1M 1
