Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck
Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck
Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck
Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck
Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck
Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck

Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ISO

Model Number: C5225

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 45 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 100Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

10T Cast Iron Metal Cutting Machine

,

2500MM Cast Iron Metal Cutting Machine

Condition:
New
Type:
VERTICAL
Voltage:
380V/50HZ
Warranty:
1 Year
Automatic Grade:
Manual
Power:
55KW
Max. Swing Diameter:
2500mm
Key Words:
Vertical Lathe Machine
Condition:
New
Type:
VERTICAL
Voltage:
380V/50HZ
Warranty:
1 Year
Automatic Grade:
Manual
Power:
55KW
Max. Swing Diameter:
2500mm
Key Words:
Vertical Lathe Machine
Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck


Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck

Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck 0

Product description

The vertical lathe finds application across mechanical processing sectors, adept at handling tasks such as internal and external cylinder machining, conical surface work, face cutting, and more.

This versatile machine series caters to a broad spectrum of industrial part fabrications. It facilitates operations like cylindrical turning, boring, tapering, facing, and grooving, accommodating both roughing and finishing stages seamlessly.

It is compatible with high-speed steel and carbide cutting tools, making it ideal for processing non-ferrous metal components in various industries. This includes operations on cylindrical surfaces, conical faces, end planes, and grooving tasks, catering to both rough and fine finishing requirements.



Features:

1. The main movement of heavy duty vertical lathe adopts the advanced frequency control system driven by 75Kw variable-frequency motor, through the manual high-low gear shift, so that spindle obtains 2.5 - 40 r / min stepless speed.
2. Table is inlaid with casting zinc, aluminum, copper alloy ZZnA110-5 wearing rail plate to increase the carrying capacity of rail.
3. Spindle of worktable is equipped with two high-precision biserial short cylindrical roller bearings; the inner ring has the taper for adjusting the radial clearance, in order to ensure spindle’s stable working under high-precision. The manipulation buttons of workbench’s startup, braking and jogging are set on the hanging button station.
4. Max. swing angle of vertical tool post is +/- 30°, which is used for turning inner and outer cone face.
5. Right feed movement adopts advanced variable-frequency speed adjusting system.



Main specification of china cnc fanuc vtl machine

Item C(K)5225 C(K)5232 C(K)5235 C(K)5240 C(K)5250 C(K)5260
Work table diameter 2250 mm 2830mm 2830mm 3150mm 4500mm 5200mm
Max. turning diameter  2500mm 3200mm 3200mm 4000mm 5000mm 6000mm
Max. height of work piece(mm) 1600-2800 1600-3000 1600-3000 1600-3200 2500-4200 2500-4500
Max. weight of work piece 10/20 10/20/32 10/20/32 10/20/32 32/50 32/50
Max. torque of worktable 63000 N•m 63000 N•m 63000 N•m 63000 N•m 105000N•m 105000N•m

Rest feeding range

 0.25-90 mm/min 0.25-90 mm/min 0.25-90 mm/min 0.25-90 mm/min 0.1-1000       mm/min 0.1-000 mm/min
Beam travel 1250mm 1250mm 1250mm 1250mm 2150mm 2150mm
Horizontal Travel of tool rest 1400mm 1750mm 1900mm 2150mm 2700mm 3300mm
Vertical Travel of tool rest

1000/1250/

1400/1600

1000/1250/

1400/1600

1000/1250/

1400/1600

1000/1250/

1400/1600

 1400/1600 1400/1600
Beam moving speed(mm/min) 350 350 350 350 380 380
Max. Swing angle of tool post ±30° ±30° ±30° ±30° ±30° ±30°
Turret dimension(WxHmm) 40x50 40x50 40x50 40x50 60x65 60x65
Main motor power 55kw 55kw 55kw 55/75kw 75kw 75kw
Machine Weight(around) 33-38T 36-50T 38-62T 43-65T 92-105T 150-200T

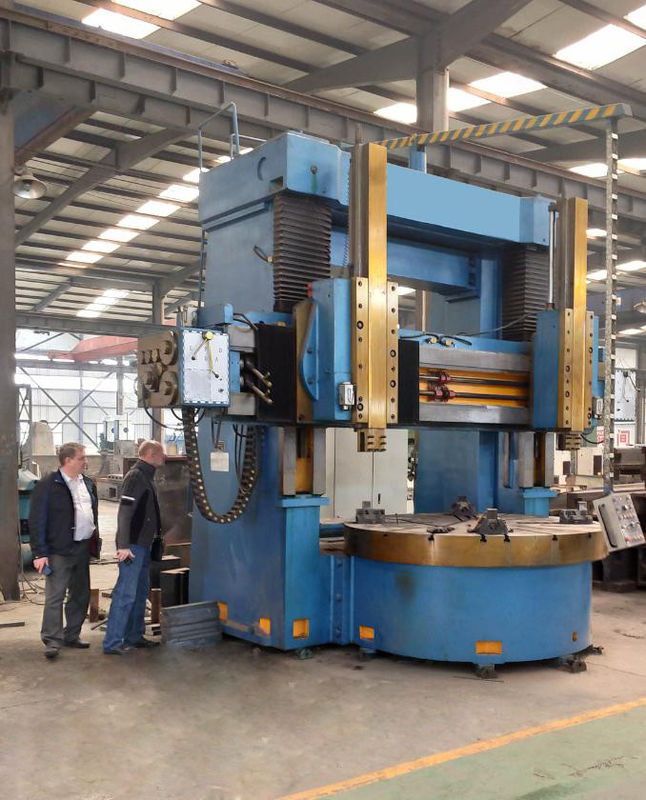

Machine picture

Max Load Bearing 10T Cast Iron Metal Cutting Machine Diameter 2500MM Four Chuck 1


Contact

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel:+86 18003851898
