Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine
Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine
Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine
Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine
Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine
Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine

Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ISO

Model Number: C5232

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 60 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 30 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

2 Meters Vertical Lathe Machine

,

Metal Cutting Vertical Lathe Machine

,

Cast Iron Vertical Lathe Machine

Name:
Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine Price
Type:
Vertical
Dimension(L*W*H):
5880X4600X4952mm
Voltage:
380V/50HZ
Warranty:
1 Year
CNC Or Not:
Not
Automatic Grade:
Manual
Power:
55KW
Name:
Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine Price
Type:
Vertical
Dimension(L*W*H):
5880X4600X4952mm
Voltage:
380V/50HZ
Warranty:
1 Year
CNC Or Not:
Not
Automatic Grade:
Manual
Power:
55KW

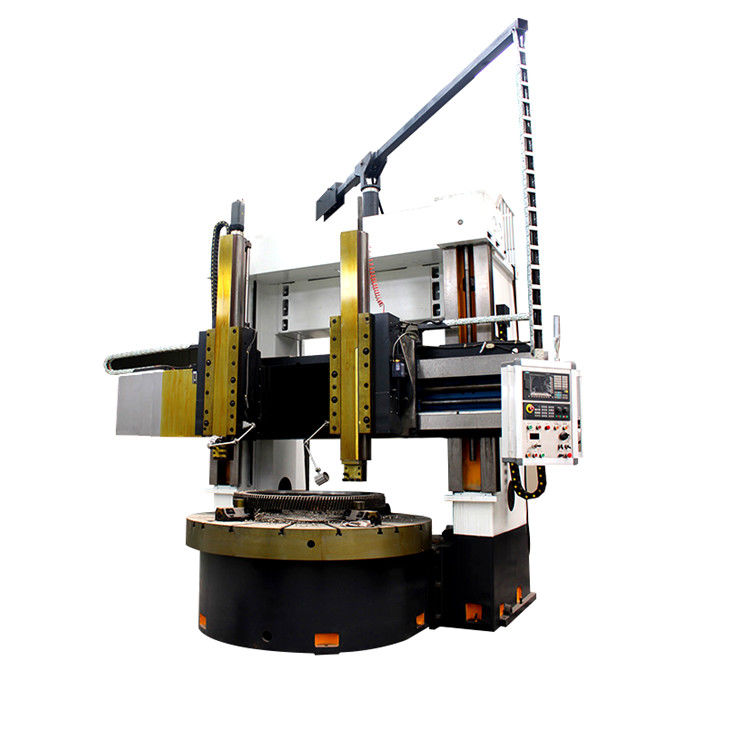

Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine

Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine 0

Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine price



Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc.


This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.



Suitable for high-speed steel and carbide cutting tools, suitable for machining of various industries of non-ferrous metals and non-ferrous metal parts of the cylindrical surface, conical surface, end face, grooving and other rough and finishing.

The vertical lathe machine is designed for turning both inside and outside cylinders and planes, corn surfaces, and grooving. It is suitable for high-speed steel tools working on ferrous metals, nonferrous metals, and some non-metallic materials.



Main specification

Item
C5232
Work table diameter
2830 mm
Max. turning diameter of work piece
3200 mm
Max. height of work piece
1600-3000mm
Max. weight of work piece
10-32 T

Max. cutting force of tool rest
35000 N (right turret)
30000 N (left turret)
Max. torque of worktable
63000 N•m
Speed changing range (high/low)
2.5-40 rpm
Tool rest feeding range(stepless)
0.25-90 mm/min
Beam travel
1250 mm

Travel of tool rest
Horizontal 1750 mm
Vertical 1000/1250/1400/1600mm
Beam moving speed
350mm/min
Fast moving speed of tool post
1550mm/min
Max. Swing angle of tool post
±30°
Turret dimension(WxH)
40×50 mm
Main motor power
55kW (variable frequency motor)
Feeding motor power
0.75kW (variable frequency motor)
Machine weight(about)
36-50T



worktable: The table features a robust single-piece cast structure, employing high-strength, low-stress gray iron (HT250) that undergoes aging treatment. This ensures ample rigidity, strength, and stability for precise machining.



Cross beam: Constructed from high-strength, low-stress cast iron and subjected to aging processes, the beam maintains structural integrity and minimizes deformation. Its rails are IF hardened, providing the necessary rigidity and strength crucial for tool accuracy. A weight reduction mechanism above the rails eases tool carriage movement, while PTFE wear-resistant soft belts with low friction coefficients line the contact surfaces between beams and columns, significantly prolonging machine lifespan. The front beam is vertically oriented, enabling vertical motion within the column structure.



Electrical control panel: All electrical systems are housed within a centralized power distribution cabinet, featuring reputable Chinese electrical components. Additionally, options for international brands like HEIDENHAIN, Siemens, and Schneider are available for customer preference.



Hydraulic system: Comprising a worktable static pressure module, primary drive mechanism, beam clamping apparatus, and a vertical turret tamping hydraulic balance system, the hydraulic setup incorporates a pressure safeguard feature. In instances of improper pressure application, the system automatically shuts down to prevent damage.




Machine picture:
Double Column 2 Meters Vertical Lathe Machine Cast Iron Metal Cutting Machine 1

Contact

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel:+86 18003851898
