Heavy Duty Big Travel Vertical Lathe 3 Axis Universal Cnc Machine

Name: Heavy Duty Big Travel Vertical Lathe 3 Axis Universal Cnc Machine
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: CK5225
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE，ISO

Model Number: CK5225

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $66,000.00/sets 1-4 sets

Packaging Details: 1. Outside we will pack the product with plasitic to prevent wet.
2. Outside of the cnc vertical lathe machine will be packed by strong wooden pallet.

Delivery Time: 45 Working days

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                3 Axis Vertical lathe, Big Travel Vertical lathe, Accuracy Vertical lathe


Max. Length Of Workpiece (mm):	2500	No. Of Spindles:	Double
Machining Capacity:	Heavy Duty	Control:	CNC/Manual
Max. Weight Of Work piece:	20TON	Spindle Motor Power(kW):	55
Worktable Diameter:	2250	Rapid Traverse Of Rail Head:	4000 Mm/min
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.003

Max. Length Of Workpiece (mm):	2500
No. Of Spindles:	Double
Machining Capacity:	Heavy Duty
Control:	CNC/Manual
Max. Weight Of Work piece:	20TON
Spindle Motor Power(kW):	55
Worktable Diameter:	2250
Rapid Traverse Of Rail Head:	4000 Mm/min
Positioning Accuracy (mm):	±0.005
Repeatability (X/Y/Z) (mm):	±0.003

Heavy Duty Big Travel Vertical Lathe 3 Axis Universal Cnc Machine

Heavy Duty Excellent Quality Big Travel Vertical lathe 3 Axis Universal Cnc Machine

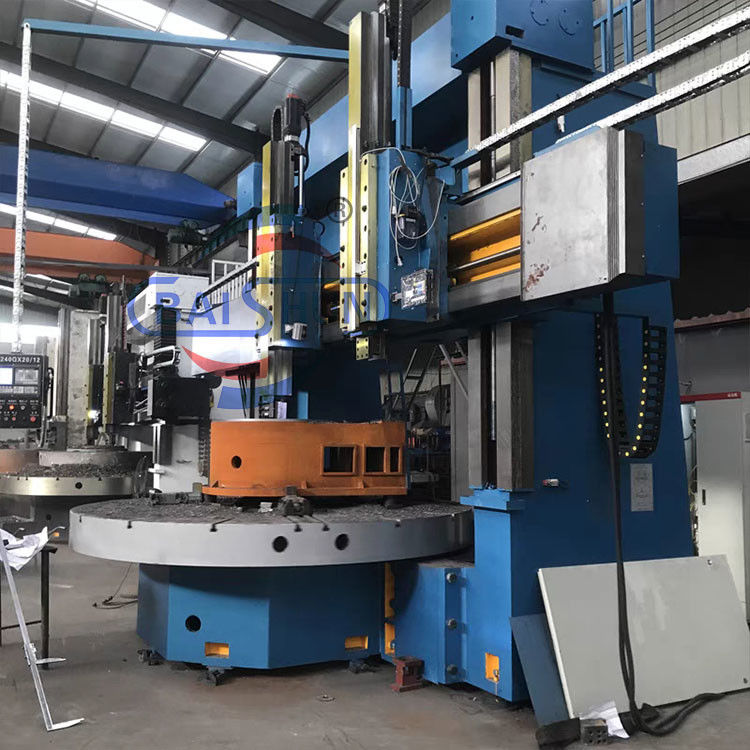

Heavy Duty Big Travel Vertical Lathe 3 Axis Universal Cnc Machine 0

The double column vertical lathe is a cutting-edge piece of equipment that combines mechanical, electrical, and hydraulic components. It incorporates modern design principles and manufacturing techniques, leveraging CAD optimization and state-of-the-art components from both domestic and international sources.

Machine parameter

Specifications	Unit	CK5225	CK5231	CK5240Q	CK5240
Max.turning diameter	mm	2500	3150	4000	4000
Max. height of work piece	mm	1600/2000/2500	1600/2000/2500	1600/2000/2500	1600/2000/2500
Max. weight of work piece	T	10/20	10/20	10/20	32
Worktable diameter	mm	2250	2830	2830/3150	3200/3600
Range of table speeds	r/min	2-63	2-63	2-63	2-63
Steps		16	16	16	16
Max torque of work table	KN.m	63	63	63	100
Rapid traverse of rail head	mm/min	4000	4000	4000	4000
Ram vertical travel of right railhead	Kn	35	35	35	40
Ram vertical travel of left railhead	kn	30	30	30	30
Range cutting force of right railhead	mm/min	1-50	1-50	1-50	1-50
Range cutting force of right railhead	mm/min	0.1-1000	0.1-1000	0.1-1000	0.1-1000
Travel of arm	mm	1000	1000	1000	1250
Section of arm	mm	255×200	255×200	255×200	240×240
Swivel of left and right railhead	°	±30°	±30°	±30°	±30°
Section of tool	mm	40×50	40×50	40×50	50×50
Power of main motor	Kw	55	55	55	75
Overall dimensions	cm	569×470×480/520	605×440×493/533	690×510×480/520	690×510×480/520

Product photos

BEAM STRUCTURE:
By the beams, horizontal feed transmission structure, clamping mechanism and hydraulic device and other components.Beam using high strength and low stress cast iron, aging treatment, structural stability is not deformed, the guide after IF quenching, with sufficient rigidity, strength, to ensure the accuracy of the machine. The top of the guide rail is equipped with a weight-reducing and unloading device, which reduces the resistance of the tool holder during movement. The contact surface of the beam and the column guide rail is glued with PTFE wear-resistant guide rail soft belt, which has a small coefficient of friction and greatly prolongs the service life of the machine tool. Beam placed in front of the column, so that the vertical beam in the vertical column.

Our Services

1. 24 Hours after sales service by E-mail or Phone.

2. 100% response rate.

3. Engineers available to service overseas.

4. OEM service is available

5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.

Contact

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel:+86 18003851898
