Single Column Cnc Vertical Lathe With High Precision Cast Iron Metal Cutting

Name: Single Column Cnc Vertical Lathe With High Precision Cast Iron Metal Cutting
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: CK5120
Price: 96,300.00 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5120

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                High Precision CNC Vertical Lathe, Metal Cutting CNC Vertical Lathe, Cast Iron CNC Vertical Lathe


Product Name:	Ck5120 Single Column Cnc Vertical Lathe From China Factory With High Precision Cast Iron Metal Cutting	Machine Type:	CK5120
Max. Turning Diameter(mm):	2000	Max. Height Of Workpiece(mm):	1200
Worktable Size(mm):	1800	Max.weight Of Workpiece:	5tons
No. Of Spindles:	Single	Voltage:	380V
Key Words:	Vertical Turning Lathe	Function:	Metal Turning

Product Name:	Ck5120 Single Column Cnc Vertical Lathe From China Factory With High Precision Cast Iron Metal Cutting
Machine Type:	CK5120
Max. Turning Diameter(mm):	2000
Max. Height Of Workpiece(mm):	1200
Worktable Size(mm):	1800
Max.weight Of Workpiece:	5tons
No. Of Spindles:	Single
Voltage:	380V
Key Words:	Vertical Turning Lathe
Function:	Metal Turning

Single Column Cnc Vertical Lathe With High Precision Cast Iron Metal Cutting

Ck5120 Single Column Cnc Vertical Lathe From China Factory With High Precision Cast Iron Metal Cutting

Use range of CK5120

This machine is used in high speed steel cutting tools and carbide cutting tools, processing all kinds of ferrous metals, nonferrous metals and some non-metallic materials.

Structure of CK5120

Technical Introduction:

1.Suitable for mechanical processing industries, this vertical lathe can handle both internal and external cylinders, cone surfaces, and face cutting, accommodating both coarse and fine turning processes.

2.The workbench utilizes a hydrostatic guideway, and the main shaft employs high-precision NN30 type (D) double row cylindrical roller bearings, ensuring high load capacity and rotational precision. The machine's electrical components are sourced from reputable domestic brands, guaranteeing high reliability.

3.Manufactured using advanced EPC processes and high-quality materials, the machine undergoes annealing and aging treatments. This results in an attractive appearance, durability, excellent user-friendliness, and convenient operation and maintenance.

Machine parameter

Model	CK518	CK5112Q	CK5112A	CK5116Q	CK5120A	CK5126A
Max. turning diameter of vertical tool rest (mm)	800	1200	1200	1600	2000	2600
Working table diameter (mm)	700	1000	1000	1400	1800	2200
Max. height of work-piece (mm)	800	1000	1000	1200	1250	1400
Max. weight of work-piece (kg)	1500	1500	3200	3200	8000	8000
Range of worktable rotation speed (rpm)	30-260	20-180	6.3-200	15-160	3.2-100	2.2-70
Feeding series	Stepless	Stepless	Stepless	Stepless	Stepless	Stepless
Range of tool rest feed (mm/min)	0.25-90	0.25-90	0.8-86	0.25-90	0.8-86	0.8-86
Cross beam travel (mm)	500	1000	650	1200	890	1090
Horizontal travel of tool rest (mm)	500	700	700	900	1115	1400
Vertical travel of tool rest (mm)	450	500	650	750	800	800
Size of section of cutter bar (mm)	30*40	30*40	30*40	30*40	30*40	30*40
Main motor power (kw)	11	15	22	15	30	30

Detail Machine Photo:

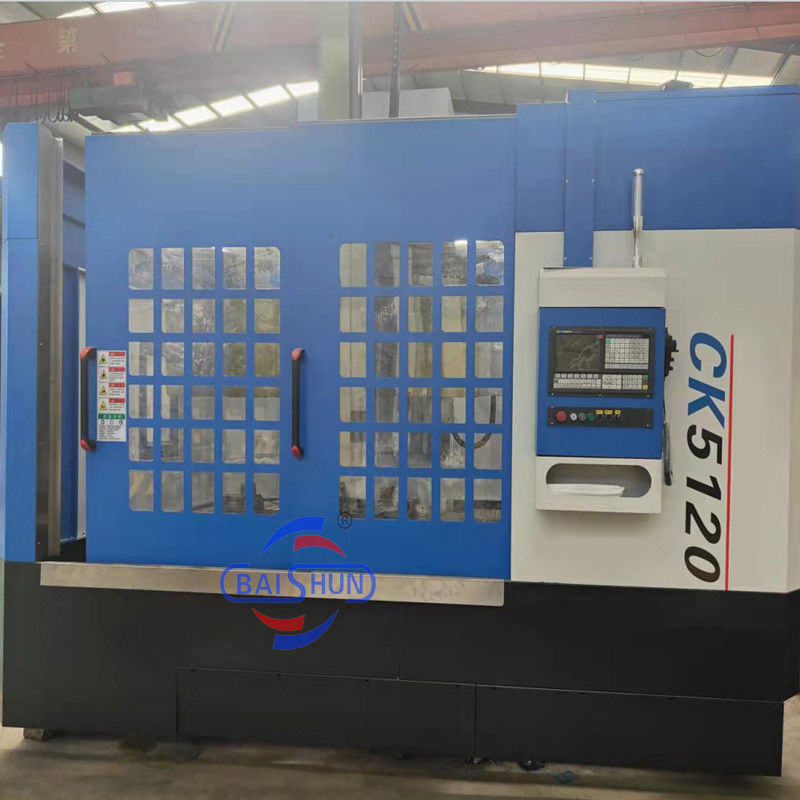

Single Column Cnc Vertical Lathe With High Precision Cast Iron Metal Cutting 1

Single Column Cnc Vertical Lathe With High Precision Cast Iron Metal Cutting 2

Shipping and Delivering:

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel/Whatsapp:+86 18003851898 (Miss Dora)
