Low Cost Cnc Lathe Machine Single Column Liner Vertical Lathe Machine Price
China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck
The machine tool consists of a table, table base, column, beam, and vertical knife frame. The machine base is made of HT250 cast iron and undergoes a meticulous process of resin sand casting, followed by aging treatment (artificial aging and vibration aging). This ensures reliable casting quality without cracks, shrinkage, or white mouth tissue. The castings are treated to maintain a stable structure, ensuring the machine's stability during operation. Chemical composition analysis reports for the molten iron, as well as heat treatment reports and temperature-time curves, are provided as quality certifications.
Technical Introduction:
1.Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and
outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning
processing.
2.Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row
cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision.
Machine tool electric using domestic brand-name products, high reliability.
3.Machine is made of high qualified epc process, high quality, the annealing aging treatment,
appearance beautiful, durable, good agreeableness, convenient operation and maintenance.
Machine parameter
|
Model
|
CK518
|
CK5112Q
|
CK5112A
|
CK5116Q
|
CK5120A
|
CK5126A
|
|
Max. turning diameter of vertical tool rest (mm)
|
800
|
1200
|
1200
|
1600
|
2000
|
2600
|
|
Working table diameter (mm)
|
700
|
1000
|
1000
|
1400
|
1800
|
2200
|
|
Max. height of work-piece (mm)
|
800
|
1000
|
1000
|
1200
|
1250
|
1400
|
|
Max. weight of work-piece (kg)
|
1500
|
1500
|
3200
|
3200
|
8000
|
8000
|
|
Range of worktable rotation speed (rpm)
|
30-260
|
20-180
|
6.3-200
|
15-160
|
3.2-100
|
2.2-70
|
|
Feeding series
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
|
Range of tool rest feed (mm/min)
|
0.25-90
|
0.25-90
|
0.8-86
|
0.25-90
|
0.8-86
|
0.8-86
|
|
Cross beam travel (mm)
|
500
|
1000
|
650
|
1200
|
890
|
1090
|
|
Horizontal travel of tool rest (mm)
|
500
|
700
|
700
|
900
|
1115
|
1400
|
|
Vertical travel of tool rest (mm)
|
450
|
500
|
650
|
750
|
800
|
800
|
|
Size of section of cutter bar (mm)
|
30*40
|
30*40
|
30*40
|
30*40
|
30*40
|
30*40
|
|
Main motor power (kw)
|
11
|
15
|
22
|
15
|
30
|
30
|

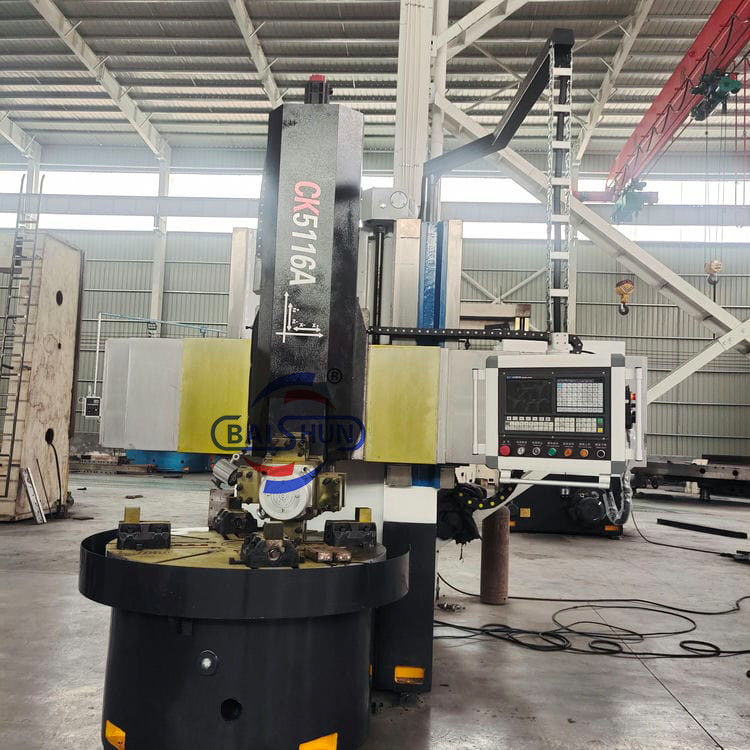

Detail Machine Photo:
