Conventional Single Column Vertical Turret Lathe Hight Rigidity Supplier Liner
The CNC single-column vertical lathe is versatile for machining ferrous metals, nonferrous metals, and some non-metallic materials. It can perform operations such as turning end faces, internal and external cylindrical surfaces, conical surfaces, and hole drilling, expanding, and reaming. The main transmission is driven by an AC servo motor on the spindle, with hydraulic gear changes and two-gear stepless speed regulation. The worktable features a manual 4-jaw single movement chuck.
Technical Introduction:
1.Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and
outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning
processing.
2.Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row
cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision.
Machine tool electric using domestic brand-name products, high reliability.
3.Machine is made of high qualified epc process, high quality, the annealing aging treatment,
appearance beautiful, durable, good agreeableness, convenient operation and maintenance.
Machine parameter
|
Model
|
CK518
|
CK5112Q
|
CK5112A
|
CK5116Q
|
CK5120A
|
CK5126A
|
|
Max. turning diameter of vertical tool rest (mm)
|
800
|
1200
|
1200
|
1600
|
2000
|
2600
|
|
Working table diameter (mm)
|
700
|
1000
|
1000
|
1400
|
1800
|
2200
|
|
Max. height of work-piece (mm)
|
800
|
1000
|
1000
|
1200
|
1250
|
1400
|
|
Max. weight of work-piece (kg)
|
1500
|
1500
|
3200
|
3200
|
8000
|
8000
|
|
Range of worktable rotation speed (rpm)
|
30-260
|
20-180
|
6.3-200
|
15-160
|
3.2-100
|
2.2-70
|
|
Feeding series
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
|
Range of tool rest feed (mm/min)
|
0.25-90
|
0.25-90
|
0.8-86
|
0.25-90
|
0.8-86
|
0.8-86
|
|
Cross beam travel (mm)
|
500
|
1000
|
650
|
1200
|
890
|
1090
|
|
Horizontal travel of tool rest (mm)
|
500
|
700
|
700
|
900
|
1115
|
1400
|
|
Vertical travel of tool rest (mm)
|
450
|
500
|
650
|
750
|
800
|
800
|
|
Size of section of cutter bar (mm)
|
30*40
|
30*40
|
30*40
|
30*40
|
30*40
|
30*40
|
|
Main motor power (kw)
|
11
|
15
|
22
|
15
|
30
|
30
|

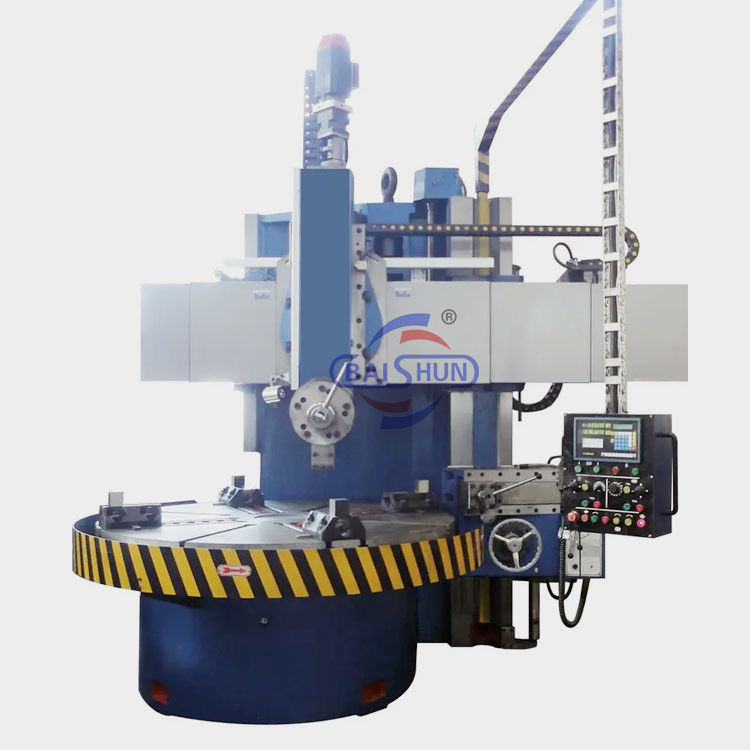

Detail Machine Photo:
We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.
Welcome get in touch with us:)
Tel/Whatsapp:+86 18003851898 (Miss Dora)
