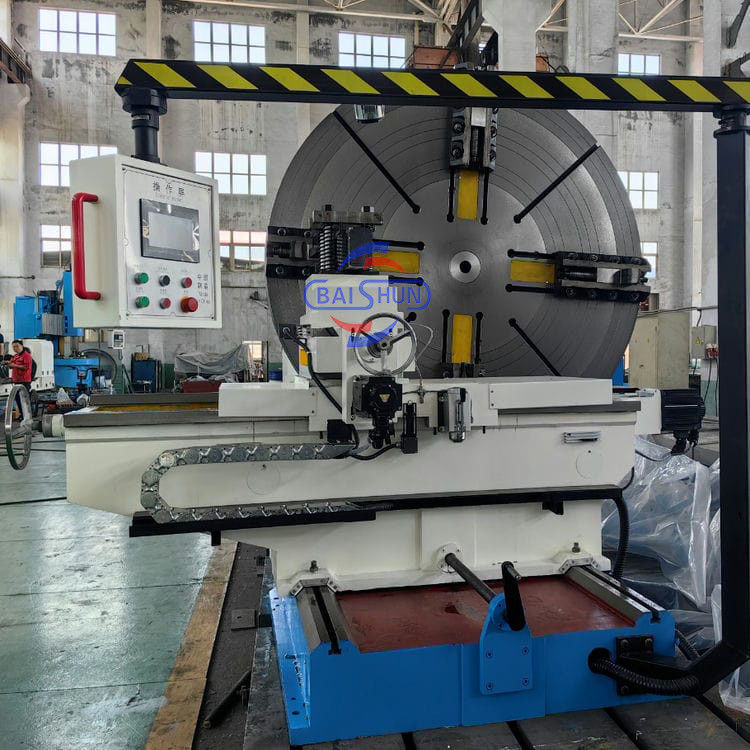

Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe

Name: Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: C6025
Price: 13,500.00 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ISO

Model Number: C6025

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case or negotiation with customer.

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Convention Floor Lathe, Surface Turning Lathe, Horizontal Face Lathe


Product Name:	Lowest Price Of 1600Mm Turning Diameter Horizontal Cnc Facing Turning Lathe	Max. Length Of Workpiece (mm):	1000
Range Of Spindle Speed(r.p.m):	16 - 128 R.p.m	Spindle Bore(mm):	190
Max. Turned Length (mm):	2500 Mm	Spindle Motor Power(kW):	15
Voltage:	380V	Weight (KG):	10000 KG
Machine Type:	C6025	Max. Turning Diameter:	2500mm
Max. Length Of Work Piece:	600mm	Chuck Diameter:	2000mm
Keyword:	Facing Lathe Machine	Function:	Metal Turning
Automatic Grade:	Manual Or CNC

Product Name:	Lowest Price Of 1600Mm Turning Diameter Horizontal Cnc Facing Turning Lathe
Max. Length Of Workpiece (mm):	1000
Range Of Spindle Speed(r.p.m):	16 - 128 R.p.m
Spindle Bore(mm):	190
Max. Turned Length (mm):	2500 Mm
Spindle Motor Power(kW):	15
Voltage:	380V
Weight (KG):	10000 KG
Machine Type:	C6025
Max. Turning Diameter:	2500mm
Max. Length Of Work Piece:	600mm
Chuck Diameter:	2000mm
Keyword:	Facing Lathe Machine
Function:	Metal Turning
Automatic Grade:	Manual Or CNC

Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe

Product Description

Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe Price
The face lathe include a large chuck or faceplate to hold the flange securely during machining, a range of cutting tools to accommodate different sizes and shapes of work piece, and controls to adjust the depth and angle of the cuts as needed, and is especially suitable for low speed high load cutting . Featuring high carrying capacity , high rigidity , optimal appearance design and easy operation , it mainly be used in turning neutral mechanical parts with a relatively large diameter , such as tire mold large diameter flange tube plate , turbine parts , end enclosure , etc . And widely applied in chemical engineering, heavy duty machining , automobile manufacturing, mining and railway equipment and aviation parts processing and manufacturing, Normally there are conventional type and CNC type for Choice.

Machine Parameter

Item	Unit	C6010	C6016	C6020	C6025	C6030
Max. turning diameter	mm	1000	1600	2000	2500	3000
Chuck diameter	mm	800	1400	1600	2000	2500
Max. length of work pieces	mm	200	400	600	600	600
Max weight of workpiece	T	1	2	3	3	5
Power of main motor	kW	11	11	15	15	22
Spindle speed	r/min	8-120	16-128	12-94	12-94	4-40
Spindle diameter	mm	190	200	200	200	300
Feed way of tool rest	Infinitely variable frequency
Horizontal stroke	mm	320	320	320	320	320
Longitudinal travel	mm	500	800	900	1400	1400
Weight	T	4	5	8	10	17

Company Introduction

Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer, which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect.

Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.

Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe 0

Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe 1

Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe 2

Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe 3

Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe 4

Contact

Convention Floor Lathe Flange Surface Turning Lathe Horizontal Face Lathe 5
