Flat Face Plate Flanges Lathe For Facing HDPE Flange Flange Lathe Manufacturers

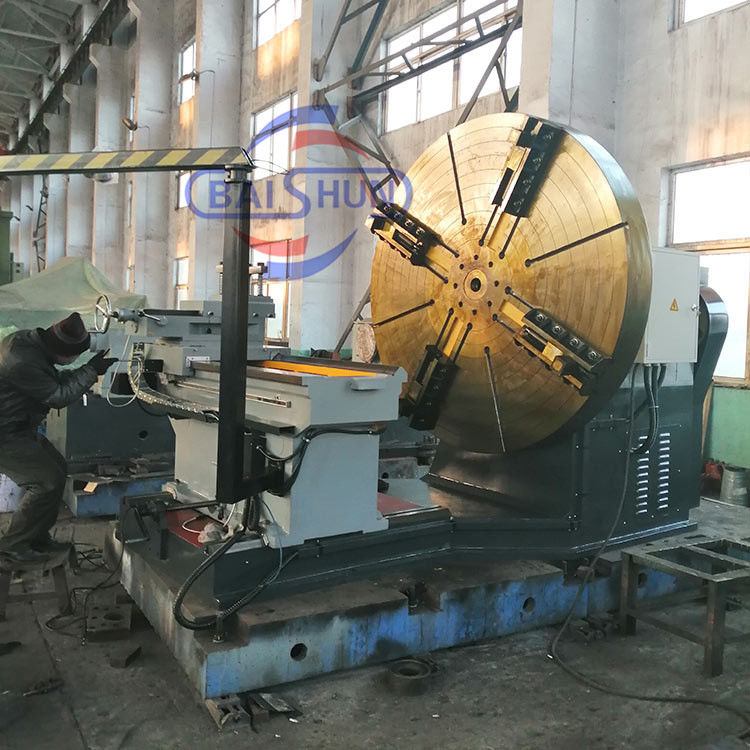

High precision flange facing lathe machine C6025 is suitable for turning large and medium-sized discs, such as a variety of flanges,valve, electrical machine end cover, tire mold. It can be used in petrochemical industry, transportation, mining railway, automobile manufacturing and other machinery manufacturing industry.
This kind face lathe is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mold, etc.
This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on.
1. This machine is mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.
2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.
3. All the gears are with long life and low noise.
Face Lathe Model list & Detail Specification:
| Project |
Unit |
C6010 |
C6016 |
C6020 |
C6025 |
C6030 |
| Maximum turning diameter |
mm |
1000 |
1600 |
2000 |
2500 |
3000 |
| Chuck diameter |
mm |
800 |
1200 |
1600 |
2000 |
2500 |
| Maximum length of workpiece |
mm |
500 |
400 |
400 |
700 |
800 |
| Maximum weight of workpiece |
ton |
1 |
2 |
3 |
5 |
10 |
| Power of main motor |
kw |
4 grade 11 |
4 grade 15 |
6 grade 11 |
6 grade 15 |
8 grade 18.5 |
| Spindle speed |
r/min |
20-156 |
20-156 |
13-103 |
9-75 |
4-40 |
| Spindle diameter |
mm |
160 |
180 |
200 |
240 |
300 |
| Feed way of tool rest |
kw |
Servo Control of PLC
|
| Horizontal stroke |
mm |
500 |
350 |
350 |
400 |
500 |
| Longitudinal stroke |
mm |
500 |
800 |
1000 |
1250 |
1450 |
| Machine weight |
ton |
4 |
5 |
6.8 |
8 |
15 |
Our advantage:
1: With CE, ISO certification.
2: Full production tracking.
3: Professional engineers can guarantee the highest quality.
4: More suppliers as alternatives, guarantee your lowest and competitive price.
5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.
6: OEM production is available, to meet customer needs
7. Low MOQ (1 unit) is available.
8. 24 hours technical support.
