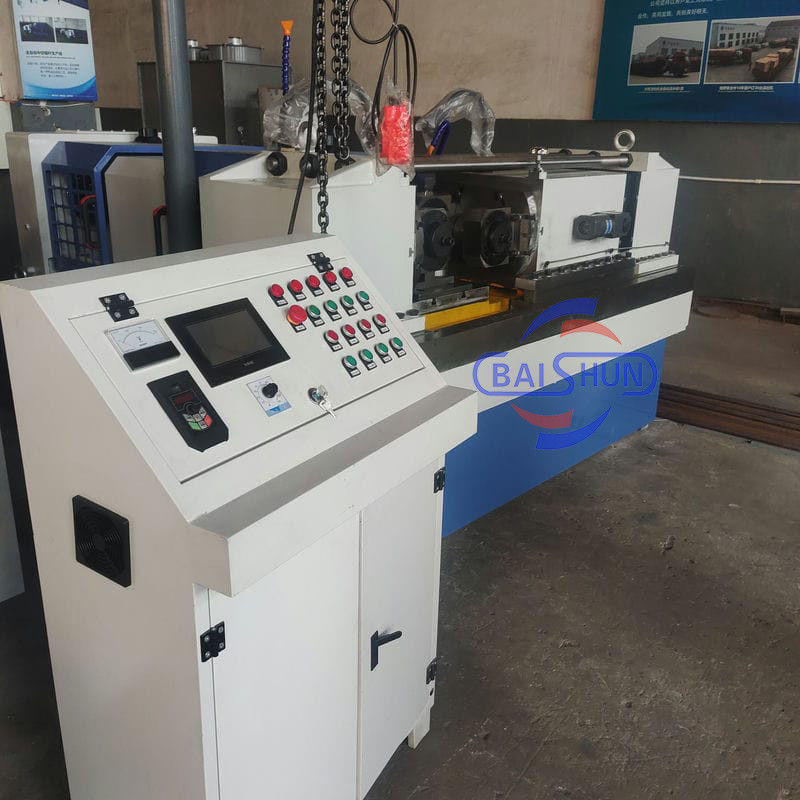

Z28-615 Certificate Guarantees Threader Rolling Screw Making Machine Tools Mold

Name: Z28-615 Certificate Guarantees Threader Rolling Screw Making Machine Tools Mold
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: Z28-615
Price: 28,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO CE

Model Number: Z28-615

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD22000-35000/SET

Packaging Details: export standard wooden case

Delivery Time: within 20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50SETS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Mold Threader Rolling Screw Making Machine, Threader Rolling Screw Making Machine


Product Name:	Screw Making Machine Tools Mold	Type:	Z28-615
Roller Diameter:	20-125mm	Thread Range:	0.5-15mm
Inner Diameter Of Roller Wheel:	100mm	Roller Die:	Customized
Power:	22kw	Color:	Blue And Gray
Delivery:	Fast Delivery

Product Name:	Screw Making Machine Tools Mold
Type:	Z28-615
Roller Diameter:	20-125mm
Thread Range:	0.5-15mm
Inner Diameter Of Roller Wheel:	100mm
Roller Die:	Customized
Power:	22kw
Color:	Blue And Gray
Delivery:	Fast Delivery

Z28-615 Certificate Guarantees Threader Rolling Screw Making Machine Tools Mold

Z28-615 Certificate Guarantees Threader Rolling Screw Making Machine Tools Mold

Description:

The thread rolling machine is a multifunctional cold extrusion forming machine tool. The thread rolling machine can perform thread, straight and diagonal rolling on the workpiece in the cold state within its rolling force range; straight tooth, helical tooth and helical spline gear Rolling; straightening, diameter reduction, roller burnishing and various forming rolling. The machine has a safe and reliable electro-hydraulic execution and control system, which allows each working cycle to be selected among three modes: manual, semi-automatic and automatic.

The thread rolling machine is a machine tool that forms threads on a workpiece through pressure. It mainly achieves thread, straight thread, oblique thread and other processing by rolling the workpiece in a cold state

Z28-615 Certificate Guarantees Threader Rolling Screw Making Machine Tools Mold 0

Technical Specification:

Model	Z28-615
Roller Diameter(mm)	20-125
Thread range(mm)	0.5-15
Inner dia.of roller wheel(mm)	100
Width of wheel(mm)	50-200
Dia.of roller wheel	220-280
Max.feeding force(kn)	1000
Rotation speed of two main axis(r/m)	Stepless
Hydraulic cease time regulation scope(s)	0.1-99.9
Main motor(kw)	22
Hydraulic motor(kw)	7.5
Machine size(mm)	2650x2650x1700
Machine weight(kg)	8200

More Details:

Z28-615 Certificate Guarantees Threader Rolling Screw Making Machine Tools Mold 1

Z28-615 Certificate Guarantees Threader Rolling Screw Making Machine Tools Mold 2

Contact:

Z28-615 Certificate Guarantees Threader Rolling Screw Making Machine Tools Mold 6
