High Precision Hydraulic Frequency Control Screw Thread Rolling Machine

Name: High Precision Hydraulic Frequency Control Screw Thread Rolling Machine
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: Z28-215
Price: 9,800.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO CE

Model Number: Z28-215

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD8600-11000/SET

Packaging Details: export standard wooden case

Delivery Time: within 20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50SETS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                High Precision Screw Thread Rolling Machine, Screw Thread Rolling Machine


Product Name:	Screw Thread Rolling Machine	Type:	Z28-215
Roller Diameter:	8-100mm	Thread Range:	0.5-8mm
Inner Diameter Of Roller Wheel:	75mm	Roller Die:	Customized
Power:	11kw	Color:	Blue And Gray
Delivery:	Fast Delivery

Product Name:	Screw Thread Rolling Machine
Type:	Z28-215
Roller Diameter:	8-100mm
Thread Range:	0.5-8mm
Inner Diameter Of Roller Wheel:	75mm
Roller Die:	Customized
Power:	11kw
Color:	Blue And Gray
Delivery:	Fast Delivery

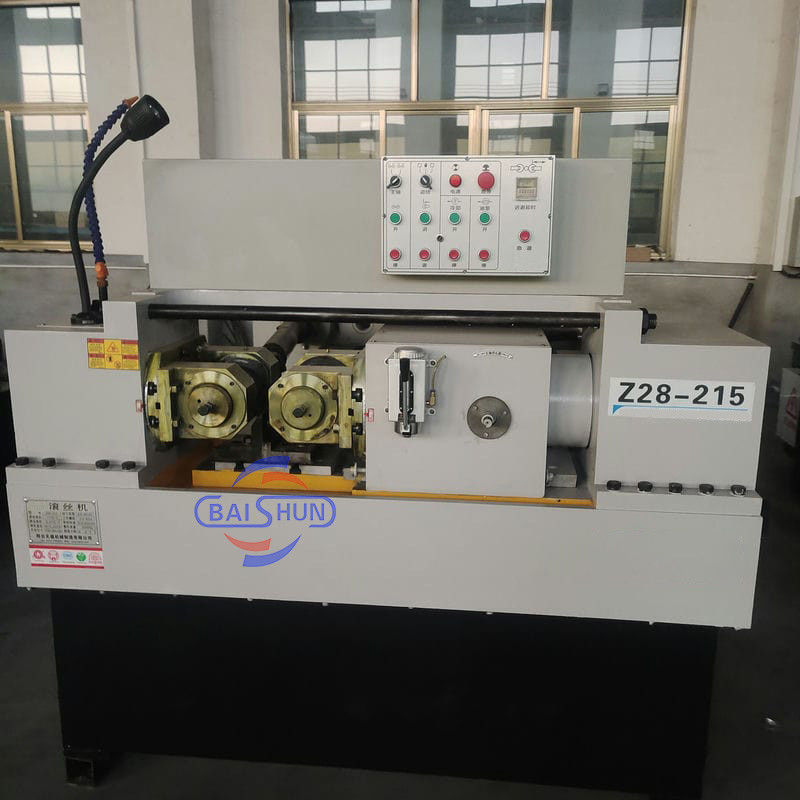

High Precision Hydraulic Frequency Control Screw Thread Rolling Machine

High Precision Hydraulic Frequency Control Screw Thread Rolling Machine

Description:

This machine ensures efficient and rapid thread rolling, meeting the demands of high-volume manufacturing environments. It is an ideal solution for high-quality thread rolling capabilities.

The thread rolling machine is a machine tool that forms threads on a workpiece through pressure. It mainly achieves thread, straight thread, oblique thread and other processing by rolling the workpiece in a cold state.

The thread rolling machine is a multifunctional cold extrusion forming machine tool. The thread rolling machine can perform thread, straight and diagonal rolling on the workpiece in the cold state within its rolling force range; straight tooth, helical tooth and helical spline gear Rolling; straightening, diameter reduction, roller burnishing and various forming rolling. The machine has a safe and reliable electro-hydraulic execution and control system, which allows each working cycle to be selected among three modes: manual, semi-automatic and automatic.

High Precision Hydraulic Frequency Control Screw Thread Rolling Machine 0

Technical Specification:

Model	Z28-215
Roller Diameter(mm)	8-100
Thread range(mm)	0.5-8
Inner dia.of roller wheel(mm)	75
Width of wheel(mm)	50-120
Dia.of roller wheel	170-220
Max.feeding force(kn)	300
Rotation speed of two main axis(r/m)	26;35;48;62
Hydraulic cease time regulation scope(s)	0.1-99.9
Main motor(kw)	11
Hydraulic motor(kw)	5.5
Machine size(mm)	2100x1850x1550
Machine weight(kg)	3800

More Details:

High Precision Hydraulic Frequency Control Screw Thread Rolling Machine 1

High Precision Hydraulic Frequency Control Screw Thread Rolling Machine 2

Contact:

High Precision Hydraulic Frequency Control Screw Thread Rolling Machine 6
