1200mm Vertical Turret Lathe Machine Heavy Duty VTL For Flange Bearing Turning

Name: 1200mm Vertical Turret Lathe Machine Heavy Duty VTL For Flange Bearing Turning
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: C5112
Price: 96,300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 35 working days

Payment Terms: T/T,L/C,Western Union

Supply Ability: 50 Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                1200mm vertical turret lathe machine, heavy duty VTL for flange turning, bearing turning vertical lathe machine


Name:	1200mm Vertical Turret Lathe Machine Heavy Duty VTL For Flange Bearing Turning	Machining Capacity:	Medium Duty
Max. Turned Length (mm):	1200 Mm	Weight (KG):	1000mm
Max.load Capacity:	1.5tons	Type:	Vertical Type
Automatic:	Manual Type	Spindle Motor Power(kW):	15kw
Voltage:	380V	Warranty:	1 Year

Name:	1200mm Vertical Turret Lathe Machine Heavy Duty VTL For Flange Bearing Turning
Machining Capacity:	Medium Duty
Max. Turned Length (mm):	1200 Mm
Weight (KG):	1000mm
Max.load Capacity:	1.5tons
Type:	Vertical Type
Automatic:	Manual Type
Spindle Motor Power(kW):	15kw
Voltage:	380V
Warranty:	1 Year

1200mm Vertical Turret Lathe Machine Heavy Duty VTL For Flange Bearing Turning

1200mm Vertical Turret Lathe Machine Heavy Duty VTL For Flange Bearing Turning

Description:

This 1200mm vertical turret lathe machine is designed for heavy duty machining of large diameter components such as flanges and bearing rings.
The VTL machine offers high precision, strong rigidity, and reliable performance, making it ideal for industrial metal turning applications.

Additionally, vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The Manual type vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, making them an essential component of modern manufacturing processes.

Specification:

Model	C518	C5112	C5116	C5120	C5125
Max.turning dia.(mm)	800	1200	1600	2000	2500
Max.cutting height(mm)	800	1000	1000	1250	1250
Max.loading weight(tons)	1.2	3.2	5	8	10
Worktable diameter(mm)	720	1000	1400	1800	2250
Worktable speed range(r/min)	30-260	6.3-200	5-160	3.2-100	2-63
Max worktable torque(n.m)	1000	25000	32000	32000	35000
vertical travel of vertical tool post(mm)	650	650	800	800	1200
horizontal travel of vertical post(mm)	570	700	915	1200	1400
G.W(tons)	7	8	12.4	17	23
Dimension(LWHmm)	20802621 3515	23602280 2800	28302670 3010	32002800 3250	33004000 3500

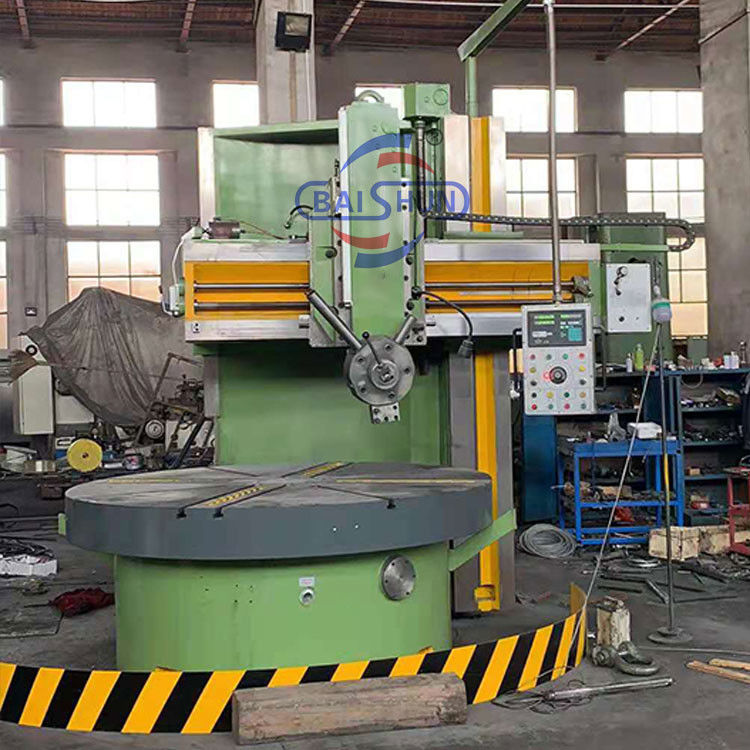

Machine picture:

1200mm Vertical Turret Lathe Machine Heavy Duty VTL For Flange Bearing Turning 0

Company profile:

1200mm Vertical Turret Lathe Machine Heavy Duty VTL For Flange Bearing Turning 1

Packing&delivery

1200mm Vertical Turret Lathe Machine Heavy Duty VTL For Flange Bearing Turning 2

Our Services

Our Services

We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.

Our advantage:

1: With CE, ISO certification.

2: Full production tracking.

3: Professional engineers can guarantee the highest quality.

4: More suppliers as alternatives, guarantee your lowest and competitive price.

5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.

6: OEM production is available, to meet customer needs

7. Low MOQ (1 unit) is available.

8. 24 hours technical support.

Warranty period:
During warranty period (one year), if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact us, we will supply our best service to you as usual.
1. Technical support online service provided .
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5. Spare parts replacement and repair service provided.
6. All of the questions will be replied within 24 hours
