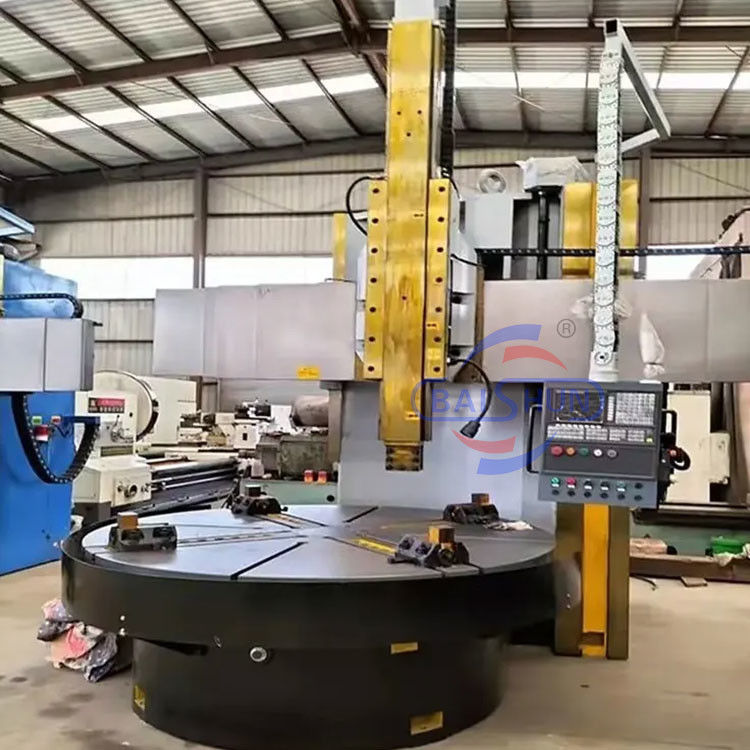

CK5123 CNC Vertical Lathe Machine With 2300mm Turning Diameter With Competitive Price

Name: CK5123 CNC Vertical Lathe Machine With 2300mm Turning Diameter With Competitive Price
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: CK5123
Price: 96,300.00 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5123

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Max Turning Diameter:	2300 Mm	Table Size:	2000 Mm
Max Workpiece Height:	1400 Mm	Positioning Accuracy:	±0.005 Mm
Voltage:	380V	Spindle Type:	Single
Name:	CK5123 CNC Vertical Lathe Machine With 2300mm Turning Diameter With Competitive Price

Max Turning Diameter:	2300 Mm
Table Size:	2000 Mm
Max Workpiece Height:	1400 Mm
Positioning Accuracy:	±0.005 Mm
Voltage:	380V
Spindle Type:	Single
Name:	CK5123 CNC Vertical Lathe Machine With 2300mm Turning Diameter With Competitive Price

CK5123 CNC Vertical Lathe Machine With 2300mm Turning Diameter With Competitive Price

CK5123 CNC Vertical Lathe Machine VTL Single Column CNC Vertical Turning Turret

Product Overview

The CK5123 CNC Vertical Turning Lathe is a multi-purpose machine suitable for processing ferrous metals, nonferrous metals, and partial non-metallic materials. It achieves precision turning of end faces, inside and outside cylindrical surfaces, inside and outside circular conical surfaces, as well as drilling, expanding, and reaming of holes. The main transmission is driven by a spindle AC servo motor with hydraulic gear change and two-gear stepless speed regulation. The worktable features a manual 4-jaw single movement chuck.

BAISHUN maintains strong technical capabilities, advanced production equipment, and a comprehensive administration system. Our products are known for their excellent quality and advanced technology. These single and double column lathes and NC vertical lathes have received perfect praise from consumers since their market introduction.

Technical Specifications

Model	CK518	CK5112Q	CK5112A	CK5116Q	CK5120A	CK5126A
Max. turning diameter of vertical tool rest (mm)	800	1200	1200	1600	2000	2600
Working table diameter (mm)	700	1000	1000	1400	1800	2200
Max. height of work-piece (mm)	800	1000	1000	1200	1250	1400
Max. weight of work-piece (kg)	1500	1500	3200	3200	8000	8000
Range of worktable rotation speed (rpm)	30-260	20-180	6.3-200	15-160	3.2-100	2.2-70
Feeding series	Stepless	Stepless	Stepless	Stepless	Stepless	Stepless
Range of tool rest feed (mm/min)	0.25-90	0.25-90	0.8-86	0.25-90	0.8-86	0.8-86
Cross beam travel (mm)	500	1000	650	1200	890	1090
Horizontal travel of tool rest (mm)	500	700	700	900	1115	1400
Vertical travel of tool rest (mm)	450	500	650	750	800	800
Size of section of cutter bar (mm)	30*40	30*40	30*40	30*40	30*40	30*40
Main motor power (kw)	11	15	22	15	30	30
