Single Column CNC Vertical Turning Center with 1600mm Turning Diameter and Automatic Operation

Name: Single Column CNC Vertical Turning Center with 1600mm Turning Diameter and Automatic Operation
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: CK5116
Price: 96,300.00 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Max Turning Diameter:	1600mm	Max Workpiece Height:	1200mm
Worktable Size:	1400mm	Max Workpiece Weight:	3.2 Tons
Voltage:	380V	Main Motor Power:	15kw

Max Turning Diameter:	1600mm
Max Workpiece Height:	1200mm
Worktable Size:	1400mm
Max Workpiece Weight:	3.2 Tons
Voltage:	380V
Main Motor Power:	15kw

Single Column CNC Vertical Turning Center with 1600mm Turning Diameter and Automatic Operation

CNC Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover

China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material. This machine can achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.

Key Features

featuring vertical tool post with maximum machining diameter of 1600mm, table diameter of 1400mm, and maximum machining height of 1000mm
Transmission device adopts four-speed continuous transmission for convenience, sensitivity, and reliability
All gears made of 40Cr grinding gears, ensuring high rotation accuracy and minimal noise
Suitable for processing non-ferrous metals, black metals, and non-metallic materials using high-speed steel tools and carbide cutting tools
Capable of performing various operations including turning inner and outer cylindrical surfaces, cutting different types of faces, inner and outer conical surfaces, threading, slotting and cutting

Machine Parameters

Model	CK518	CK5112Q	CK5112A	CK5116Q	CK5120A	CK5126A
Max. turning diameter of vertical tool rest (mm)	800	1200	1200	1600	2000	2600
Working table diameter (mm)	700	1000	1000	1400	1800	2200
Max. height of work-piece (mm)	800	1000	1000	1200	1250	1400
Max. weight of work-piece (kg)	1500	1500	3200	3200	8000	8000
Range of worktable rotation speed (rpm)	30-260	20-180	6.3-200	15-160	3.2-100	2.2-70
Feeding series	Stepless	Stepless	Stepless	Stepless	Stepless	Stepless
Range of tool rest feed (mm/min)	0.25-90	0.25-90	0.8-86	0.25-90	0.8-86	0.8-86
Cross beam travel (mm)	500	1000	650	1200	890	1090
Horizontal travel of tool rest (mm)	500	700	700	900	1115	1400
Vertical travel of tool rest (mm)	450	500	650	750	800	800
Size of section of cutter bar (mm)	30*40	30*40	30*40	30*40	30*40	30*40
Main motor power (kw)	11	15	22	15	30	30

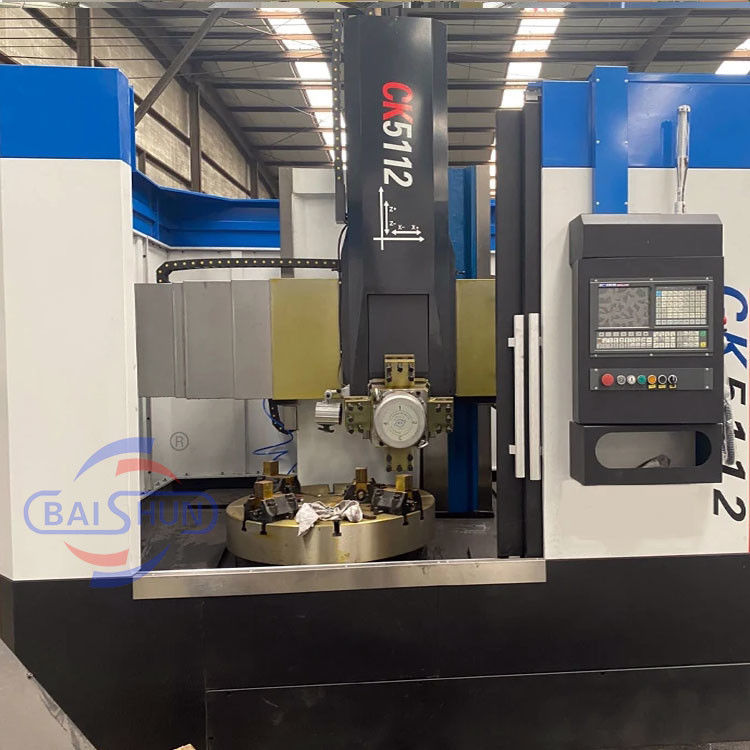

Detail Machine Photos

We are a direct-sale lathe machine manufacturer, not a trading company, which means we can offer you the best prices.

Welcome get in touch with us:)

Tel/Whatsapp: +86 18003851898 (Miss Dora)
