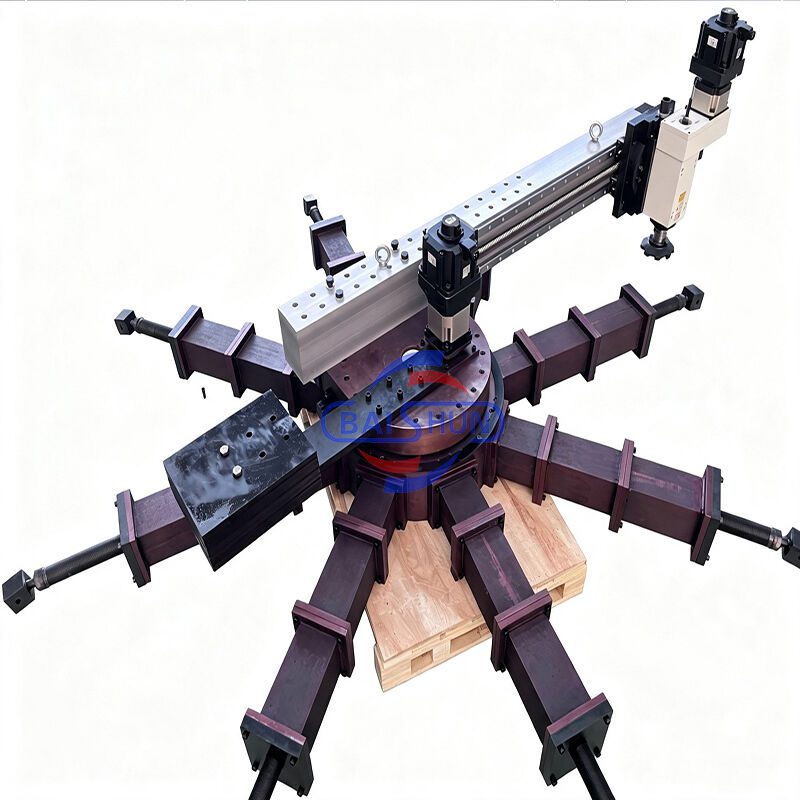

Pneumatic Portable Flange Lathe For Explosion-Proof Petrochemical Applications

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE,ISO

Model Number: XDFX-3000

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 53500

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 30 Set/Sets per Month

Get Best Price
Highlight:

Pneumatic flange lathe for petrochemical

,

Portable face lathe machine

,

Explosion-proof flange lathe

Name:
Pneumatic Portable Flange Lathe
Brand:
BAISHUN
Model:
3000
Processing Mothed:
Milling
Processing Diameter Range:
1500-3000mm
Rated Torque:
285N.m
Power:
4.5kw
Key Words:
Portable Flange Lathe
Function:
Flange Milling
Name:
Pneumatic Portable Flange Lathe
Brand:
BAISHUN
Model:
3000
Processing Mothed:
Milling
Processing Diameter Range:
1500-3000mm
Rated Torque:
285N.m
Power:
4.5kw
Key Words:
Portable Flange Lathe
Function:
Flange Milling
Pneumatic Portable Flange Lathe For Explosion-Proof Petrochemical Applications

Pneumatic Portable Flange Lathe For Explosion-Proof Petrochemical Applications:


The portable flange milling machine is one of the mature products of our company's portable machining machine. This machine has a wide range of applications, mainly used for processing the sealing surface and inner diameter of large pipeline flanges, such as petroleum, chemical, nuclear power and other industries. Our company's portable flange lathe(milling machine) has fast installation, quick calibration, strong and precise power; Fast milling and sales speed; The blade arm is made of special steel and processed by special techniques. Automaticly movements of blades has adjustable feed rate. It has high strength, hardness, precision, and toughness. The spindle and spindle box are made ofspecial steel; and also the servo motor and Japanese NSK bearings; High precision and high rigidity.

Pneumatic Portable Flange Lathe For Explosion-Proof Petrochemical Applications

Pneumatic Portable Flange Lathe For Explosion-Proof Petrochemical Applications

Pneumatic Portable Flange Lathe For Explosion-Proof Petrochemical Applications

Pneumatic Portable Flange Lathe For Explosion-Proof Petrochemical Applications

Pneumatic Portable Flange Lathe For Explosion-Proof Petrochemical Applications


Technical specification:

 ITEM

UNIT

FX-3000

Processing method



Milling

Processing diameter range

MM

1500~3000

ROTARY DRIVE

structural style



Servo motor+reducer

Motor Power

KW

4.5

rated torque

N.m

285

HORIZONTAL FEED

Transverse feed stroke of spindle



Screw+linear guide rail


Transverse feed stroke of spindle

MM

300

Horizontal feeding mode



hand movement

MAIN SPINDLE FEED

Milling feed stroke

MM

100

Milling feed mode



hand movement

SPINDLE DRIVE

structural style



Servo motor+reducer

Motor Power

KW

4.5

rated torque

N.m

100

SUPPORTING METHOD

Supporting method



Internal support legs

Supporting diameter range

MM

1450-2950

PROCESSING CAPABILITY



Maximum processing capacity

MM

1mm

Processing flatness

MM

0.10mm

Roughness

Ra

3.2~1.6

LUBRICATION METHOD

linear guide rail

way

Quantitative centralized lubrication


Screw rod

way

Quantitative centralized lubrication

OTHER REQUIREMENTS

Power requirements



Ф380V±10 , 50HZ

Milling cutter disc



Diameter 120mm

Control method



Handle control

Spindle Model



BT40
