Product Details
Place of Origin: Henan, China
Brand Name: BAISHUN MACHINERY
Certification: CE,ISO
Model Number: XDFX-3000
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 53500
Packaging Details: Export standard wooden case package or Negotiation with customers
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Name: |
Large Diameter Portable Flange Lathe |
Brand: |
BAISHUN |
Model: |
3000 |
Processing Mothed: |
Milling |
Processing Diameter Range: |
1500-3000mm |
Rated Torque: |
285N.m |
Power: |
4.5kw |
Key Words: |
Portable Flange Lathe |
Function: |
Flange Milling |
Name: |
Large Diameter Portable Flange Lathe |
Brand: |
BAISHUN |
Model: |
3000 |
Processing Mothed: |
Milling |
Processing Diameter Range: |
1500-3000mm |
Rated Torque: |
285N.m |
Power: |
4.5kw |
Key Words: |
Portable Flange Lathe |
Function: |
Flange Milling |

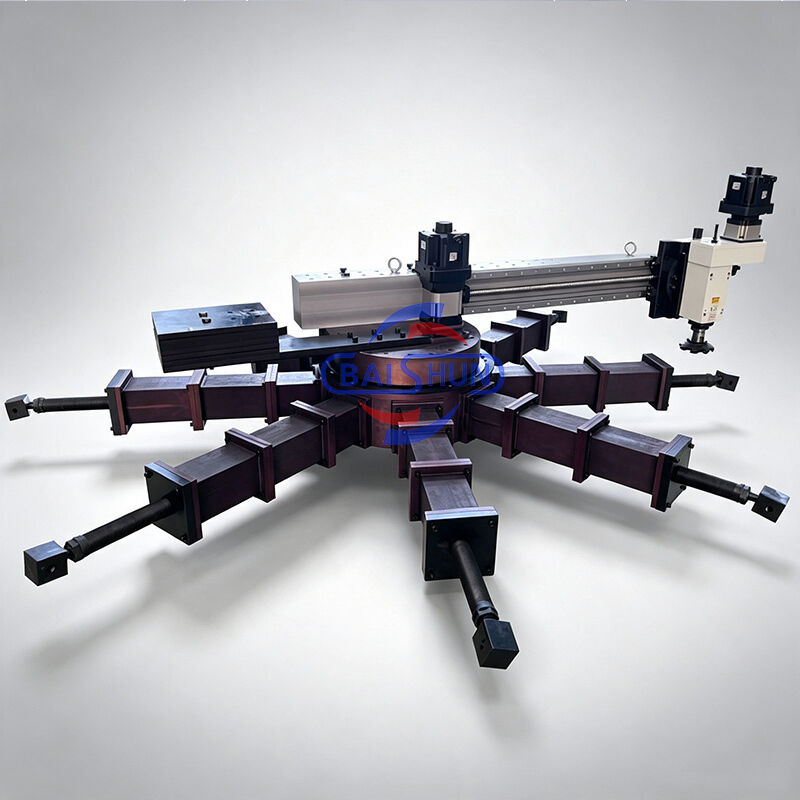

Large Diameter Portable Flange Lathe Pneumatic Hydraulic Servo Drive Multi-Power Options:
The portable flange milling machine is one of the mature products of our company's portable machining machine. This machine has a wide range of applications, mainly used for processing the sealing surface and inner diameter of large pipeline flanges, such as petroleum, chemical, nuclear power and other industries. Our company's portable flange lathe(milling machine) has fast installation, quick calibration, strong and precise power; Fast milling and sales speed; The blade arm is made of special steel and processed by special techniques. Automaticly movements of blades has adjustable feed rate. It has high strength, hardness, precision, and toughness. The spindle and spindle box are made ofspecial steel; and also the servo motor and Japanese NSK bearings; High precision and high rigidity.
![]()
![]()
![]()
![]()
![]()
Technical specification:
|
ITEM |
UNIT |
FX-3000 |
|
Processing method |
|
Milling |
|
Processing diameter range |
MM |
1500~3000 |
|
ROTARY DRIVE |
||
|
structural style |
|
Servo motor+reducer |
|
Motor Power |
KW |
4.5 |
|
rated torque |
N.m |
285 |
|
HORIZONTAL FEED |
||
|
Transverse feed stroke of spindle |
|
Screw+linear guide rail |
|
Transverse feed stroke of spindle |
MM |
300 |
|
Horizontal feeding mode |
|
hand movement |
|
MAIN SPINDLE FEED |
||
|
Milling feed stroke |
MM |
100 |
|
Milling feed mode |
|
hand movement |
|
SPINDLE DRIVE |
||
|
structural style |
|
Servo motor+reducer |
|
Motor Power |
KW |
4.5 |
|
rated torque |
N.m |
100 |
|
SUPPORTING METHOD |
||
|
Supporting method |
|
Internal support legs |
|
Supporting diameter range |
MM |
1450-2950 |
|
PROCESSING CAPABILITY |
|
|
|
Maximum processing capacity |
MM |
1mm |
|
Processing flatness |
MM |
0.10mm |
|
Roughness |
Ra |
3.2~1.6 |
|
LUBRICATION METHOD |
||
|
linear guide rail |
way |
Quantitative centralized lubrication |
|
Screw rod |
way |
Quantitative centralized lubrication |
|
OTHER REQUIREMENTS |
||
|
Power requirements |
|
Ф380V±10 , 50HZ |
|
Milling cutter disc |
|
Diameter 120mm |
|
Control method |
|
Handle control |
|
Spindle Model |
|
BT40 |
Henan Baishun Machinery Equipment Co., Ltd is a professional manufacturer specializing in slotting machines, vertical lathe machines, CNC vertical lathe machines, CNC horizontal lathe machines, roll lathe machines, gear hobbing machines, pole erection machines, and shredder machines. With 14 years of experience in lathe manufacturing, we have exported our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, Uzbekistan, and other countries.
Our company places great importance on international technical exchanges and cooperation, having introduced advanced technology and craftsmanship from the United States, Germany, Australia, and other countries. We have established internationally advanced production lines and first-class modern testing facilities. We welcome all partners for visits, communication, and cooperation.
We provide comprehensive support including 7x24-hour online pre-sale service, engineer order follow-up, and logistics delivery operation services. Installation services are also available. With over 10 years of experience in various markets, we assist customers through the complete process from purchasing to customs clearance, saving time and reducing costs across all aspects.
Warranty Period: During the one-year warranty period, any parts broken due to quality issues will be supplied free of charge by express delivery.
After the warranty period, we continue to provide our best service and support for any issues that may arise.
